Polaris RZR XP 1000 OEM-Width Radius Rods | HCR Racing
Shipping calculated at checkout
In stock

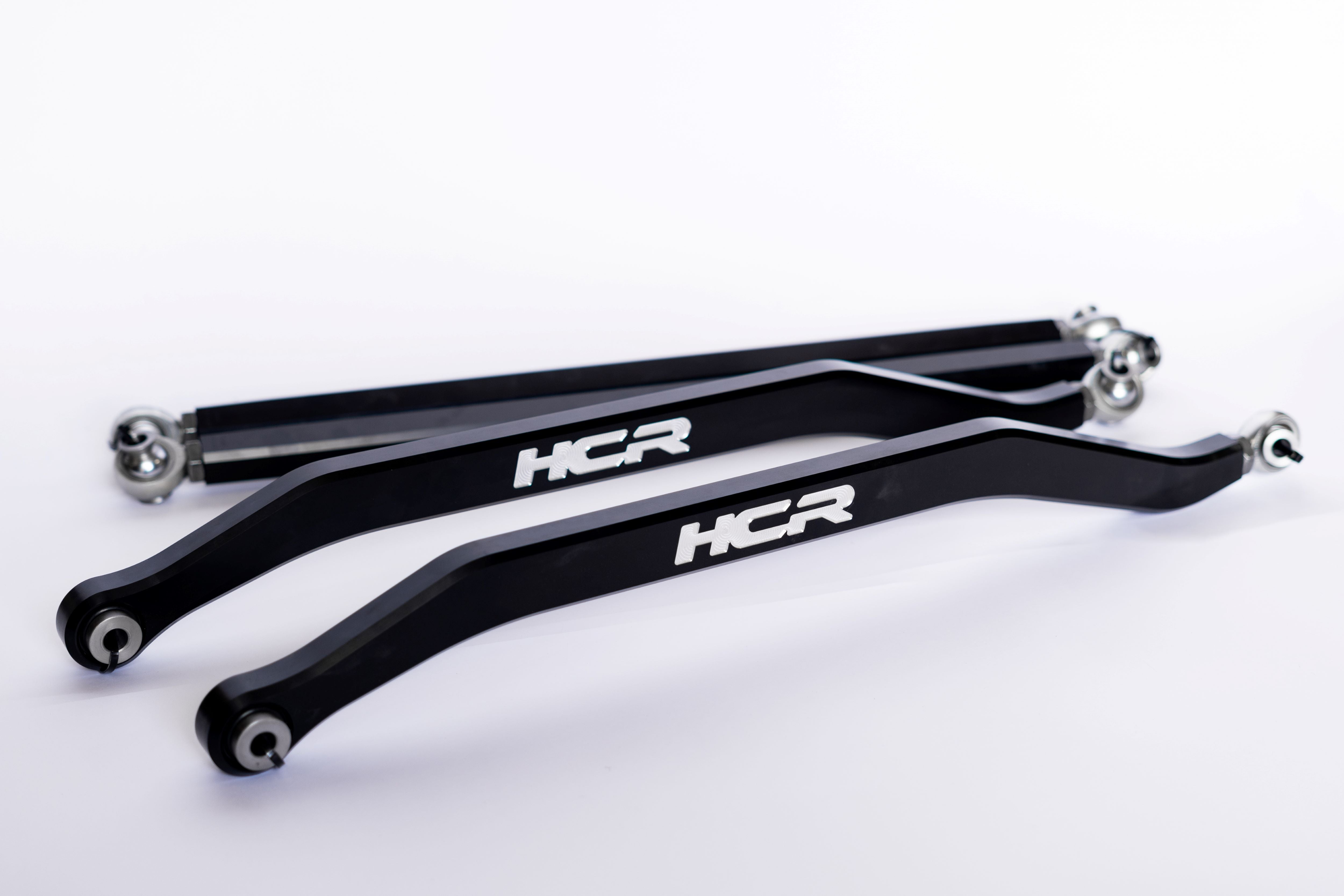

OEM-width Polaris RZR XP 1000 rear suspension gains clearance with HCR aluminum radius rods matched to 10mm or 12mm hub hardware. The black-anodized set includes upper and lower high-clearance links, six right-hand heims, O-rings and misalignment spacers. Confirming the hub-hardware size before ordering is required.
Key Features

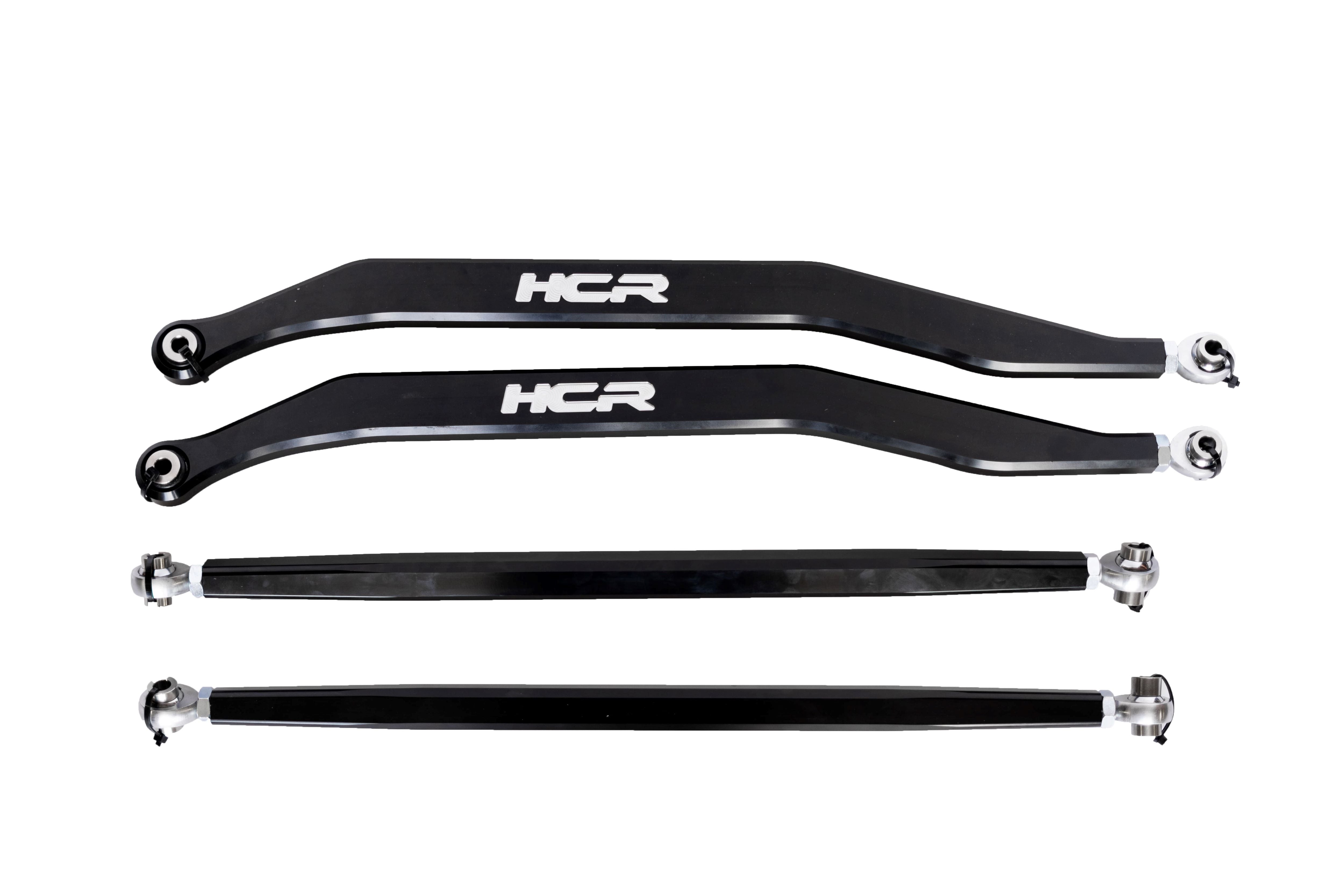

- Two lower high-clearance link bars
- Two upper link bars

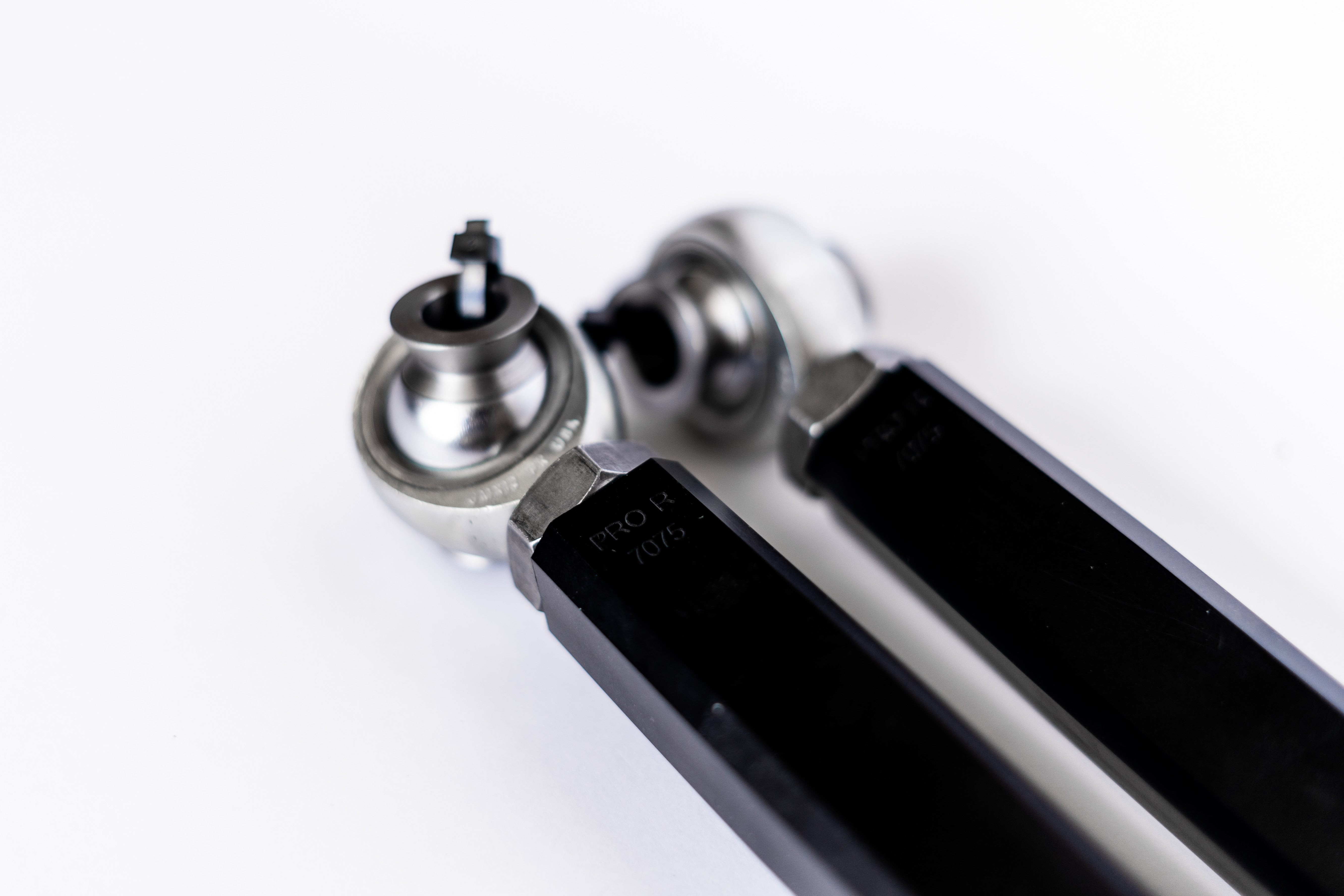

- Six 5/8-18 right-hand heims
- Four O-rings
- Eight back-plate and eight hub-side misalignment spacers
- Black anodized finish
- 10mm and 12mm hub-hardware options
- Pre-assembled configuration
Built To Solve: RZR XP 1000 OEM-Width Rear-Link Clearance
- Limited clearance beneath straight rear links
- Need for a coordinated upper-and-lower link set
- Risk of selecting the wrong hub-hardware size
Best For: OEM-Width Polaris RZR XP 1000 Builds
- XP 1000 owners retaining OEM suspension width
- Machines needing high-clearance aluminum rear links
- Owners who can verify 10mm or 12mm hub hardware
Specifications
- Material: Aluminum
- Finish: Black anodized
- Lower links: 2
- Upper links: 2
- Heims: Six 5/8-18 right-hand
- O-rings: 4
- Misalignment spacers: 16 total
- Hub-hardware options: 10mm or 12mm
- Warranty note: Damage from joint removal or refinishing can void coverage
Fitment
Fits the OEM-width Polaris RZR XP 1000 application identified by HCR. Confirm whether the rear hub uses 10mm or 12mm hardware before ordering. Fitment is not guaranteed on unlisted applications.
FAQ
What is included with these XP 1000 radius rods?
The kit includes two lower links, two upper links, six heims, four O-rings and 16 misalignment spacers.
Why are there 10mm and 12mm choices?
The hub-side hardware differs by application and must be verified before ordering.
What finish is supplied?
The links ship in black anodized finish.
Are these for a mid-travel kit?
No. HCR identifies this set for an OEM-width RZR XP 1000; use the specific mid-travel link set for HCR MTS builds.
Can I remove the joints for powder coating?
HCR warns that damage from removing joints or the powder-coating process can void warranty coverage.
Are the radius rods pre-assembled?
Yes. HCR states that the radius rods arrive pre-assembled.
Why HCR Racing
HCR Racing supplies vehicle-specific rear-link packages with the joints and spacer stack required for its intended suspension width and hardware size.
Complete Your OEM-Width RZR XP 1000 Rear Links
Verify OEM suspension width and measure the hub hardware before selecting the 10mm or 12mm HCR radius-rod variant.
