2012-2015 Kawasaki Teryx 800 Long-Travel Kit | HCR Racing

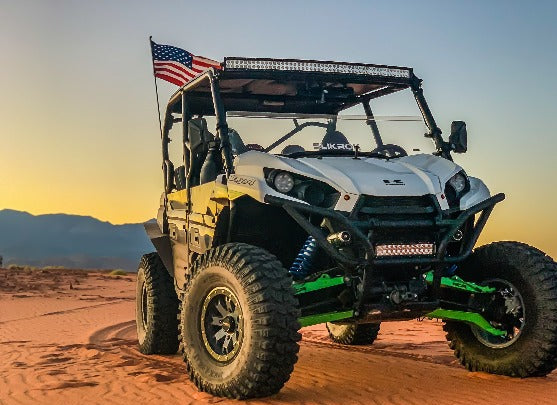

2012-2015 Kawasaki Teryx 800 and Teryx 4 800 models gain a 72-inch stance and longer wheelbase with the HCR Moab long-travel kit. The bolt-on package adds five inches per side and 3.5 inches of wheelbase while retaining stock shocks through included brackets. It also includes RCV axle bars that reuse the factory CV joints.

Key Features

• Adds 5 inches per side for approximately 72-inch total width
• Extends wheelbase by 3.5 inches
• Supports up to 28-inch tires without additional components per HCR

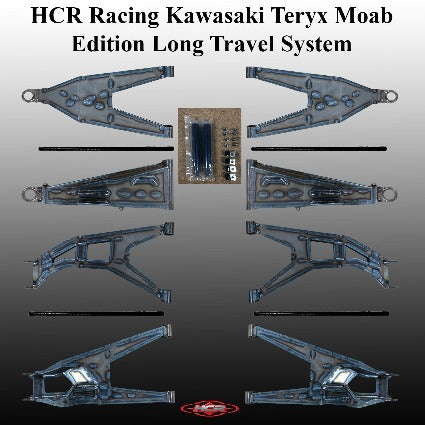

• Four front A-arms and four rear control arms
• Front shock tower and rear shock brackets retain stock shocks
• Four RCV axle bars reuse factory CV joints
• Tie-rod extensions retain OEM tie rods
• Laser-cut and hand TIG-welded construction
• Reuses OEM ball joints or offers Keller ball-joint variants
• Bolt-on installation at factory mounting points
• Made in the USA

Built To Solve: Teryx 800 Stability, Tire Clearance And Suspension Travel

• Narrow factory stance during demanding trail use
• Limited wheelbase clearance for larger tires
• Need for coordinated suspension, axle-bar and shock-mount components

Best For: 2012-2015 Kawasaki Teryx 800 Moab Builds

• Teryx 800 and Teryx 4 800 owners seeking a 72-inch stance
• Riders planning tires up to 28 inches
• Installers who can confirm model year for the correct axle bars

Specifications

• Width increase: 5 inches per side
• Approximate total width: 72 inches at the wheels
• Wheelbase increase: 3.5 inches
• Supported tire size: Up to 28 inches without additional components per HCR
• Front arms: 4
• Rear control arms: 4
• Front shock tower: 1
• Rear shock brackets: 2
• RCV axle bars: 4
• Ball-joint options: Keller ball joints or none included
• Origin: Made in the USA
• Production: Made to order

Fitment

• 2012-2015 Kawasaki Teryx 800
• 2012-2015 Kawasaki Teryx 4 800

Confirm the exact model year so the correct axle bars are supplied. HCR recommends its bed-lift kit to help prevent rear suspension bed rub when planning larger tires. Fitment is not guaranteed on unlisted applications.

FAQ

How much wider does the Teryx become?

The kit adds five inches per side for approximately 72 inches total width at the wheels.

How much wheelbase is added?

HCR states that the wheelbase increases by 3.5 inches.

What tire size can the kit support?

HCR states that up to 28-inch tires fit without additional components; larger setups require additional planning.

Are shocks included?

No replacement shocks are listed. The included front tower and rear brackets are designed to retain the supported stock shocks.

What axle components are included?

The kit includes four RCV axle bars that reuse the factory CV joints.

Why must the model year be confirmed?

HCR requires the model year to supply the correct axle bars for the application.

Why HCR Racing

HCR Racing builds the Moab system as a coordinated suspension package rather than isolated arms, combining geometry changes, shock brackets, axle bars and steering extensions.

Plan Your 2012-2015 Kawasaki Teryx Long-Travel Build

Confirm the model year, ball-joint choice, tire plan and bed-clearance requirements before selecting the finish and placing the made-to-order kit.
