Can-Am Maverick X3 Lower Shock Mount A-Arms | HCR Racing

Can-Am Maverick X3 72-inch models can gain a more upright front-shock position and reduced steering feedback with HCR lower-shock-mount front A-arms. This American-made four-arm kit uses HCR proprietary Elite alloy and is designed for uniballs only. It targets riders building a supported X3 around improved front-end stability, responsiveness and ground clearance.

Key Features

• Lower shock mount helps reduce steering feedback
• Upright front-shock positioning supports front-end stability and clearance
• HCR Elite alloy is stated to be 30% stronger than 4130 chromoly

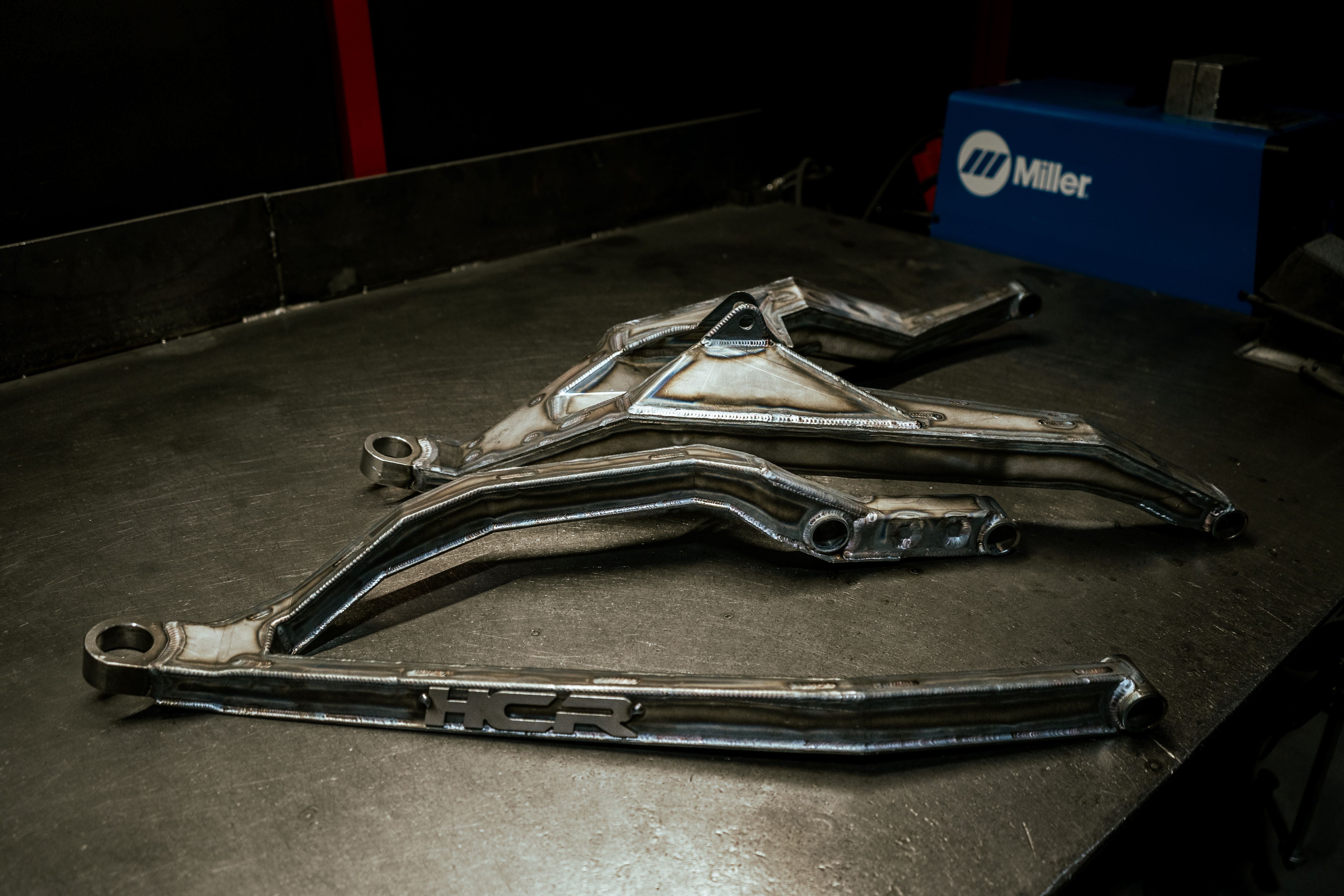

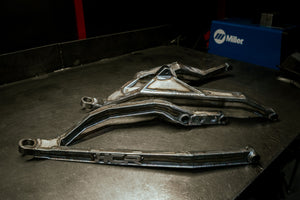

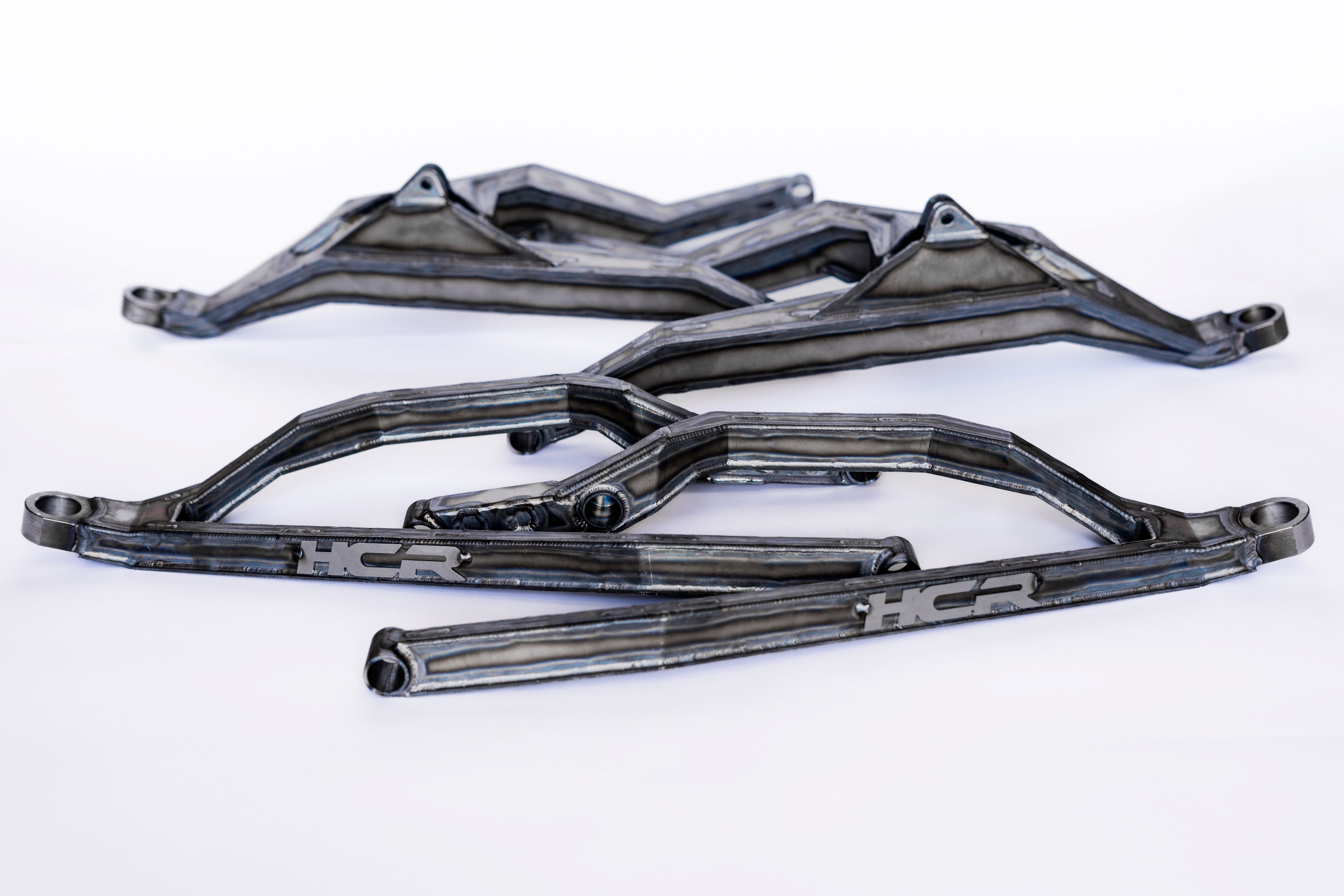

• Includes four front A-arms, 16 Delrin bushings and brake-line mounting hardware
• Designed for uniballs only
• Made in the USA

Built To Solve: Maverick X3 Front-End Feedback And Limited Clearance

• Excess steering feedback through rough terrain
• Front suspension geometry that does not provide the desired upright shock position
• Need for a coordinated four-arm replacement on supported 72-inch X3 models

Best For: 72-Inch Maverick X3 Performance Builds

• Supported X RS, X RC, X MR and MAX 72-inch configurations
• Riders already planning the required HCR bulkhead gusset and shock-tower support
• Builds using compatible uniballs and wheels larger than 14 inches

Specifications

• Construction: HCR proprietary Elite alloy
• Configuration: Four front A-arms
• Bushings: 16 Delrin bushings included
• Joint compatibility: Uniballs only
• Required supporting parts: HCR bulkhead gusset kit and shock-tower support
• Wheel restriction: 14-inch wheels do not fit
• Smart-Shox compatibility: Not compatible

Fitment

Fits selected 2017+ Can-Am Maverick X3 72-inch X RS, X RC and X MR Turbo/Turbo R/Turbo RR models, including supported MAX versions. Check the listed HCR fitment details for the exact year and trim. Not compatible with Smart-Shox-equipped vehicles, standard ball joints or 14-inch wheels. Fitment is not guaranteed on unlisted applications.

FAQ

What problem does the lower shock mount address?

HCR states that the lower mount reduces steering feedback and positions the front shocks more upright for stability and clearance.

Are these replacement arms compatible with standard ball joints?

No. HCR specifies uniballs only.

Do I need other HCR components?

Yes. HCR requires its bulkhead gusset kit and shock-tower support for this application.

Will 14-inch wheels fit?

No. HCR explicitly states that 14-inch wheels will not fit.

Do these arms work with Smart-Shox vehicles?

No. HCR states that this kit will not work with Smart-Shox-equipped vehicles.

What is included?

The kit includes four front A-arms, 16 Delrin bushings and brake-line mounting hardware.

Why HCR Racing

HCR Racing engineers UTV suspension systems using vehicle-specific geometry and its proprietary Elite alloy. This kit is made in the USA and designed as part of a coordinated X3 front-suspension build.

Complete Your 72-Inch Maverick X3 Front Suspension

Verify year, trim, width, uniball configuration, wheel size and Smart-Shox status. Add the required HCR bulkhead gusset and shock-tower support before completing the installation plan.
