2017+ Can-Am Maverick X3 64-to-72 Conversion Kit | HCR Racing

Convert a supported 64-inch Can-Am Maverick X3 to a 72-inch stance with an HCR Racing long travel kit engineered around high-clearance suspension components. This Can-Am X3 64-to-72 conversion kit combines HCR arms and rear links with Rhino 2.0 axles, ZRP tie rods, and billet radius rods.

Key Features

• Converts supported 64-inch Maverick X3 models to a 72-inch stance
• High-clearance A-arms and trailing arms add 1.5 inches of ground clearance, according to HCR
• HCR Elite Alloy is stated by HCR to deliver 30% greater yield and tensile strength than 4130 chromoly
• TIG-welded construction with chromoly mounting points
• Includes Rhino 2.0 axles and ZRP heavy-duty tie rods

Built To Solve

This Can-Am X3 long travel kit packages the major components required to widen supported 64-inch machines while increasing clearance and suspension strength.

Best For

Maverick X3 64-inch owners building a wider dune or desert machine and wanting a coordinated suspension conversion rather than piecing together unrelated parts.

Specifications

• Base SKU: MAV-05420-RW
• Width conversion: 64 inches to 72 inches
• Ground-clearance gain: 1.5 inches, per HCR
• Arm material: HCR Elite Alloy
• Radius rods: 7075 billet aluminum with 5/8-18 right-hand-thread heims
• Axles: SuperATV Rhino 2.0

Fitment

• Selected 2017+ Can-Am Maverick X3 64-inch and X3 MAX 64-inch applications listed by HCR
• Does not fit 14-inch wheels
• Smart-Shox models require the separate HCR Smart-Shox brackets
• Verify the exact model, year, differential type, and selected options before ordering

What’s Included

• Four front A-arms
• Two rear trailing arms

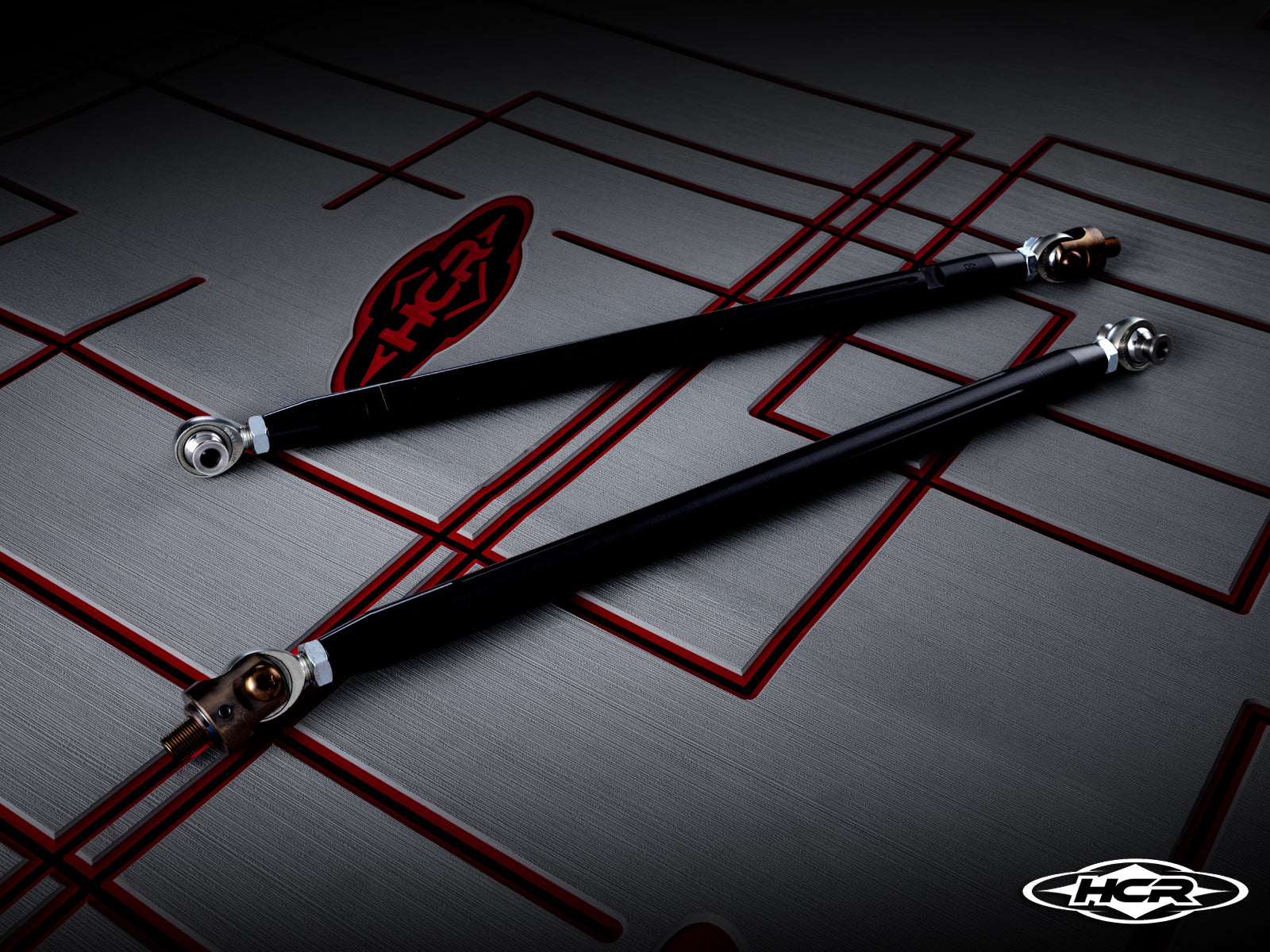

• ZRP tie-rod kit

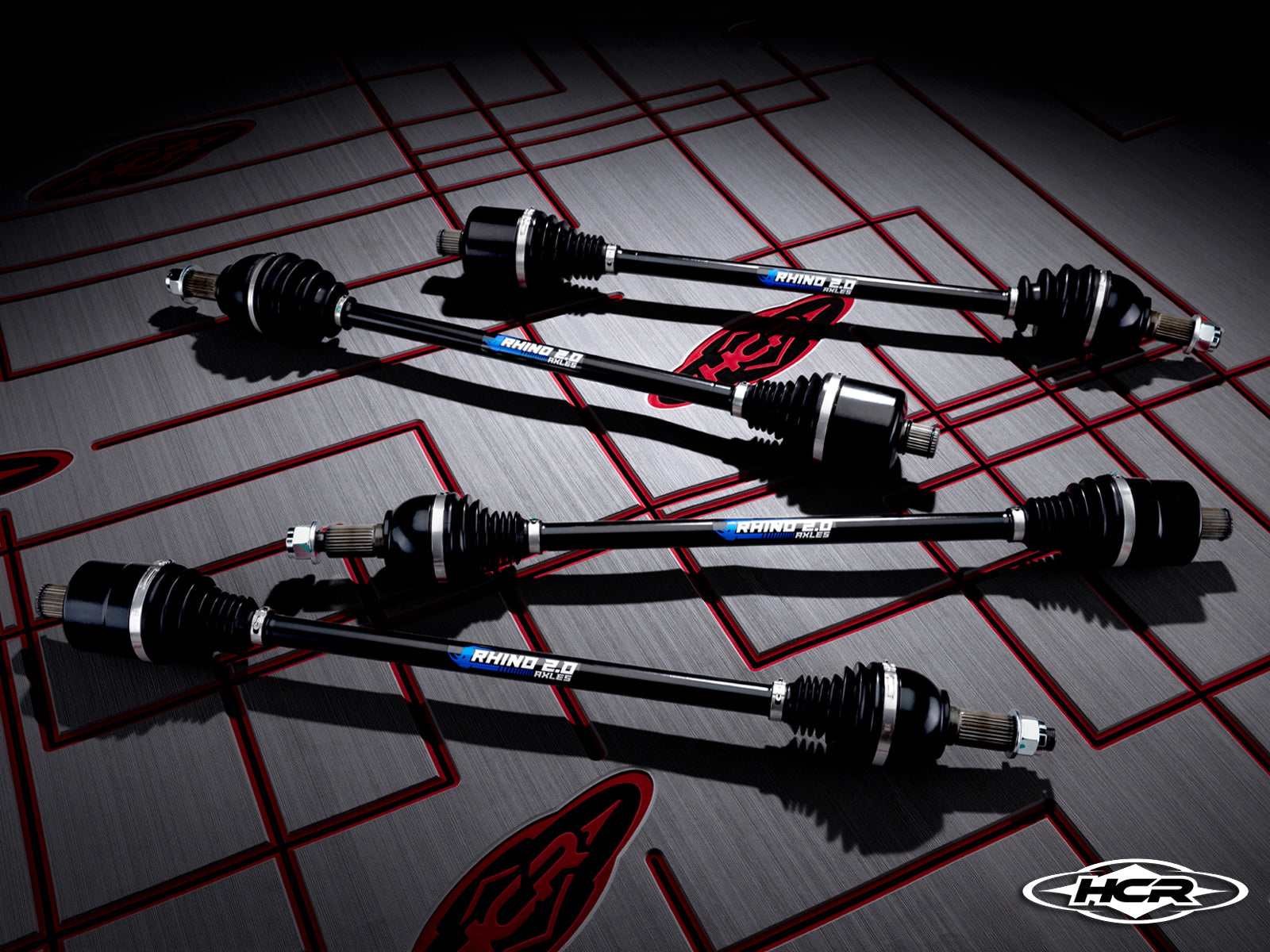

• Front and rear Rhino 2.0 axles

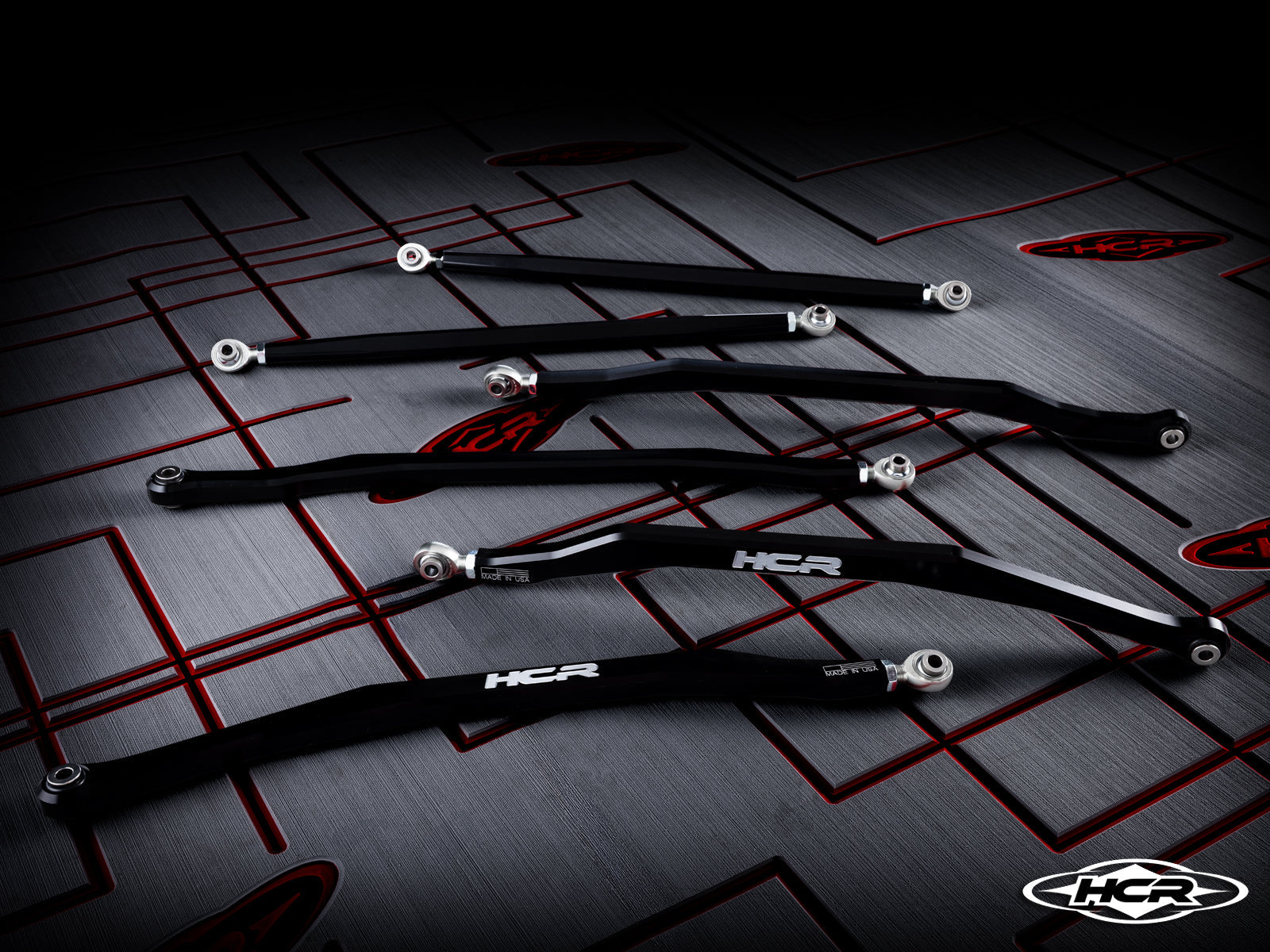

• High-clearance billet radius rods
• Replacement bushings
• Brake-line mounting hardware
• Shock bolts

FAQ

What does the kit convert?
It converts supported 64-inch Maverick X3 models to a 72-inch suspension stance.

How much clearance does it add?
HCR states the arm and trailing-arm design adds 1.5 inches of ground clearance.

Are axles included?
Yes. The kit includes front and rear Rhino 2.0 axles.

Are tie rods included?
Yes. HCR lists a ZRP heavy-duty tie-rod kit.

Does it fit 14-inch wheels?
No. HCR specifically states that the kit will not fit 14-inch wheels.

What about Smart-Shox?
Smart-Shox applications require separate HCR brackets.

Why HCR Racing

HCR Racing develops vehicle-specific UTV suspension components for demanding dune, desert, and trail use. Manufacturer lead times can change because many HCR products are made to order.
