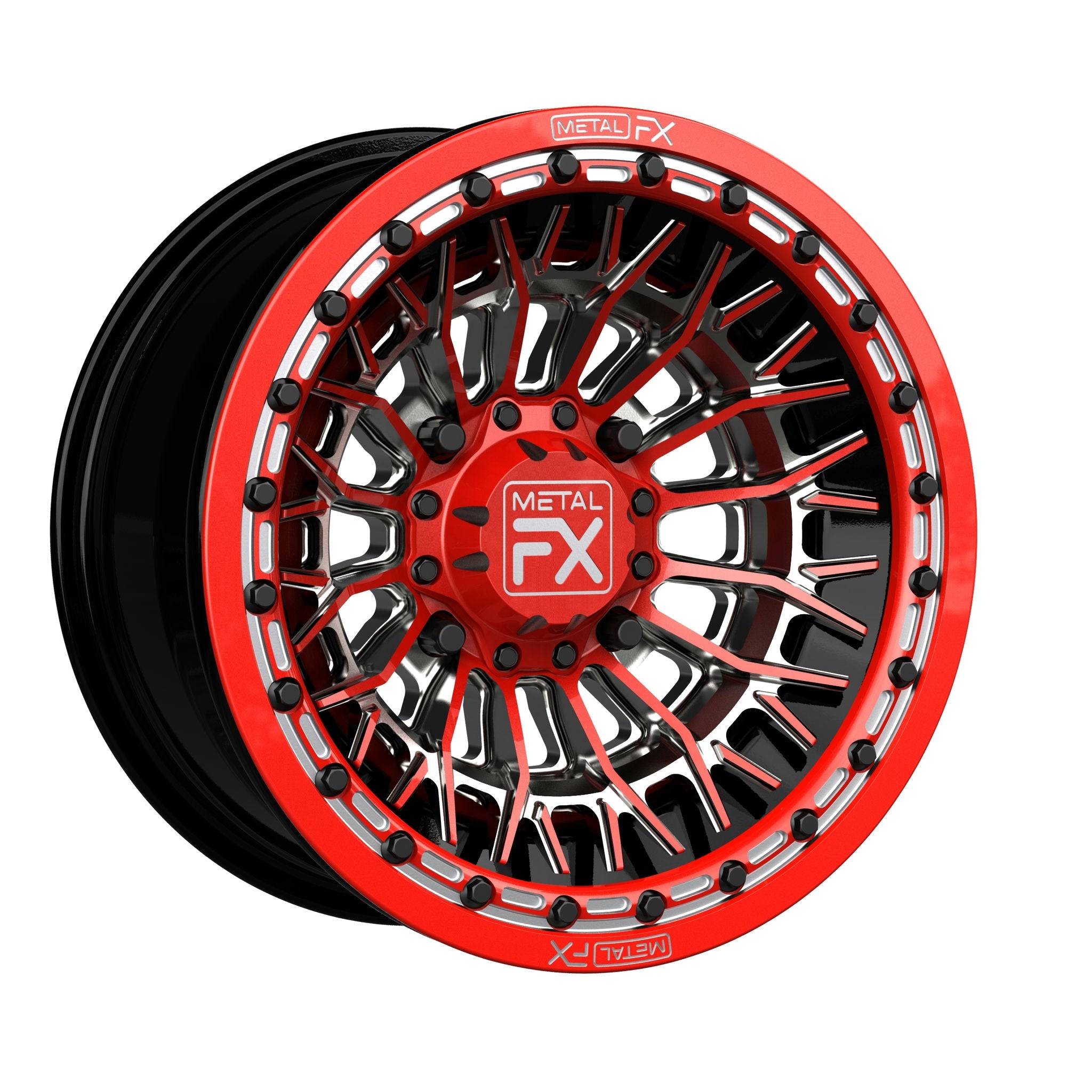

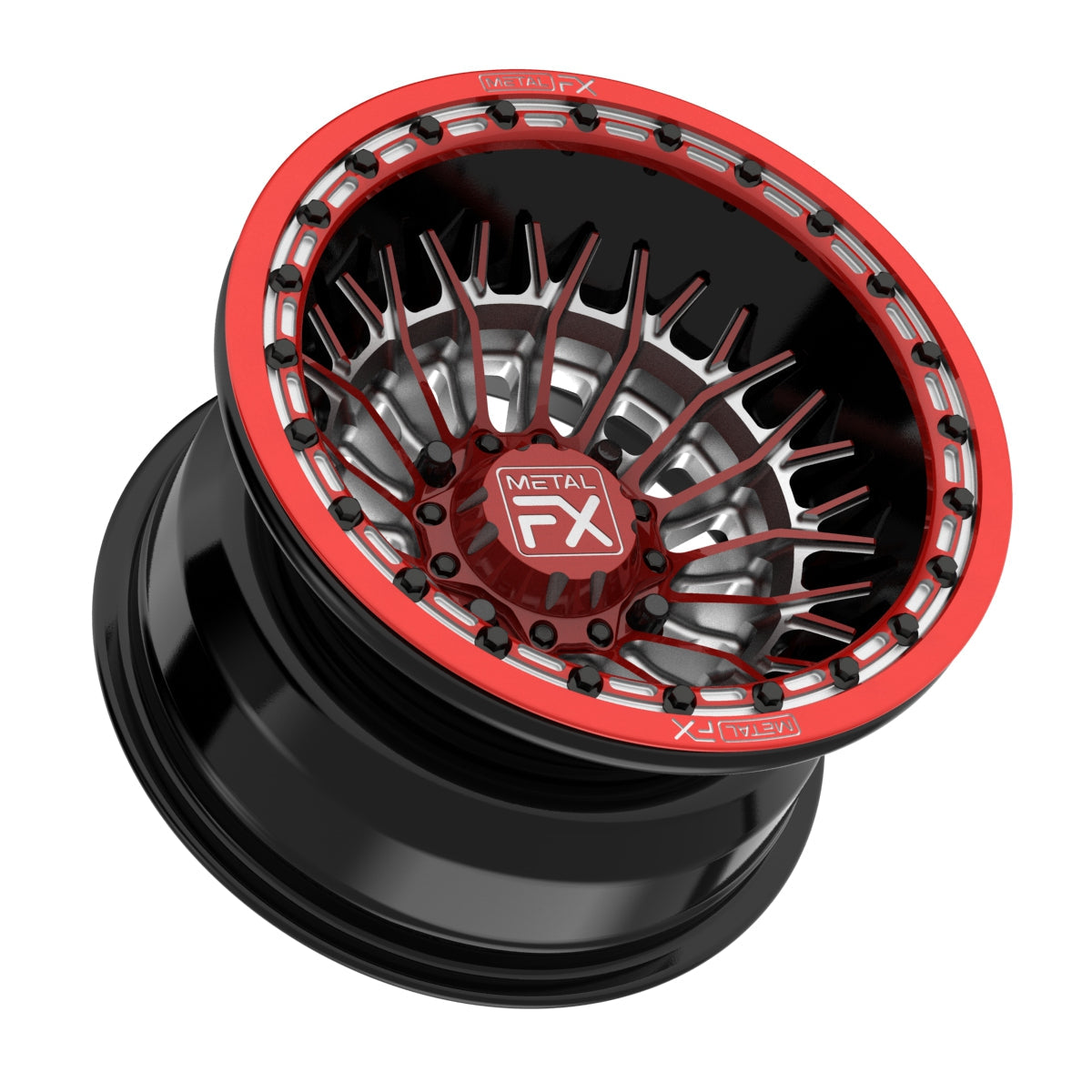

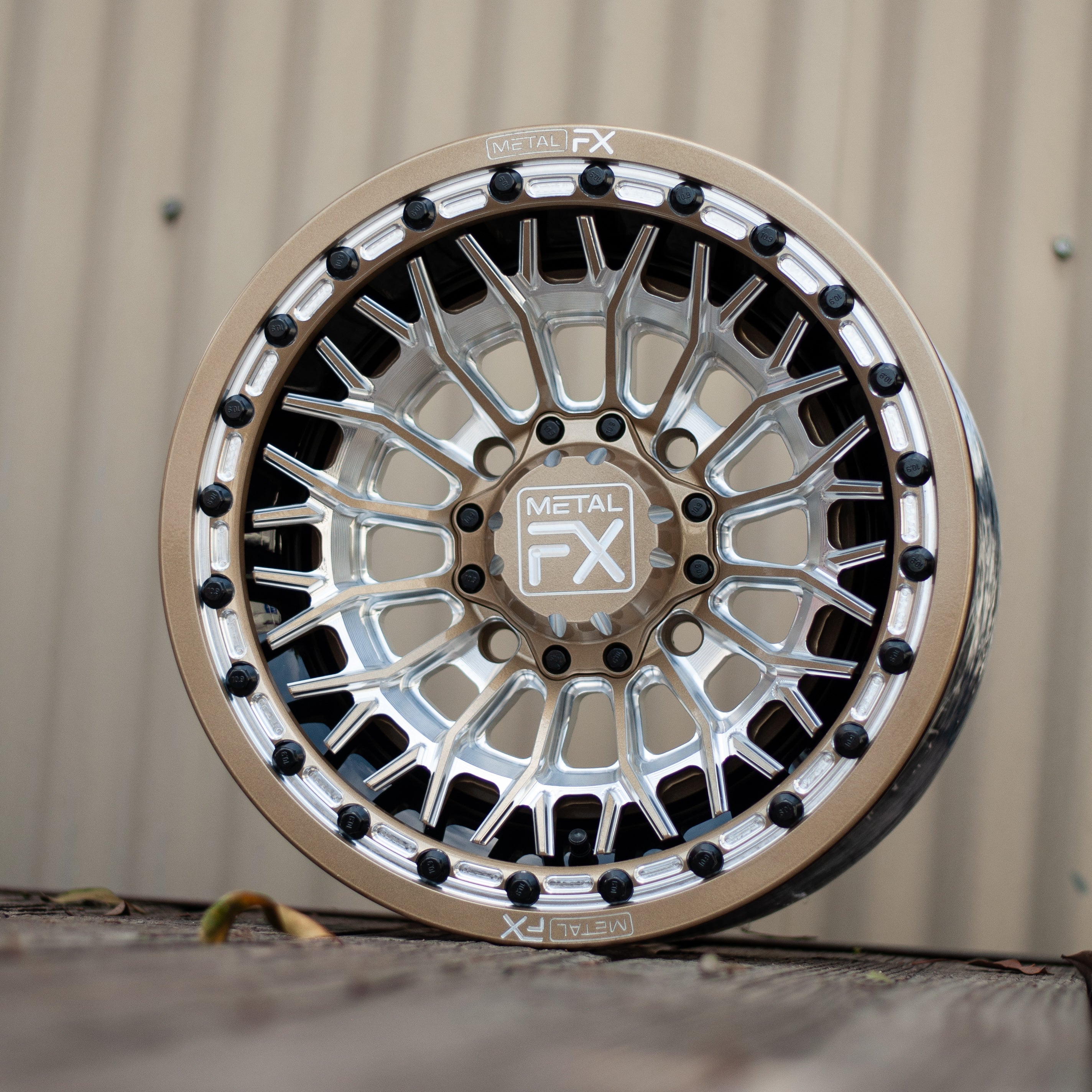

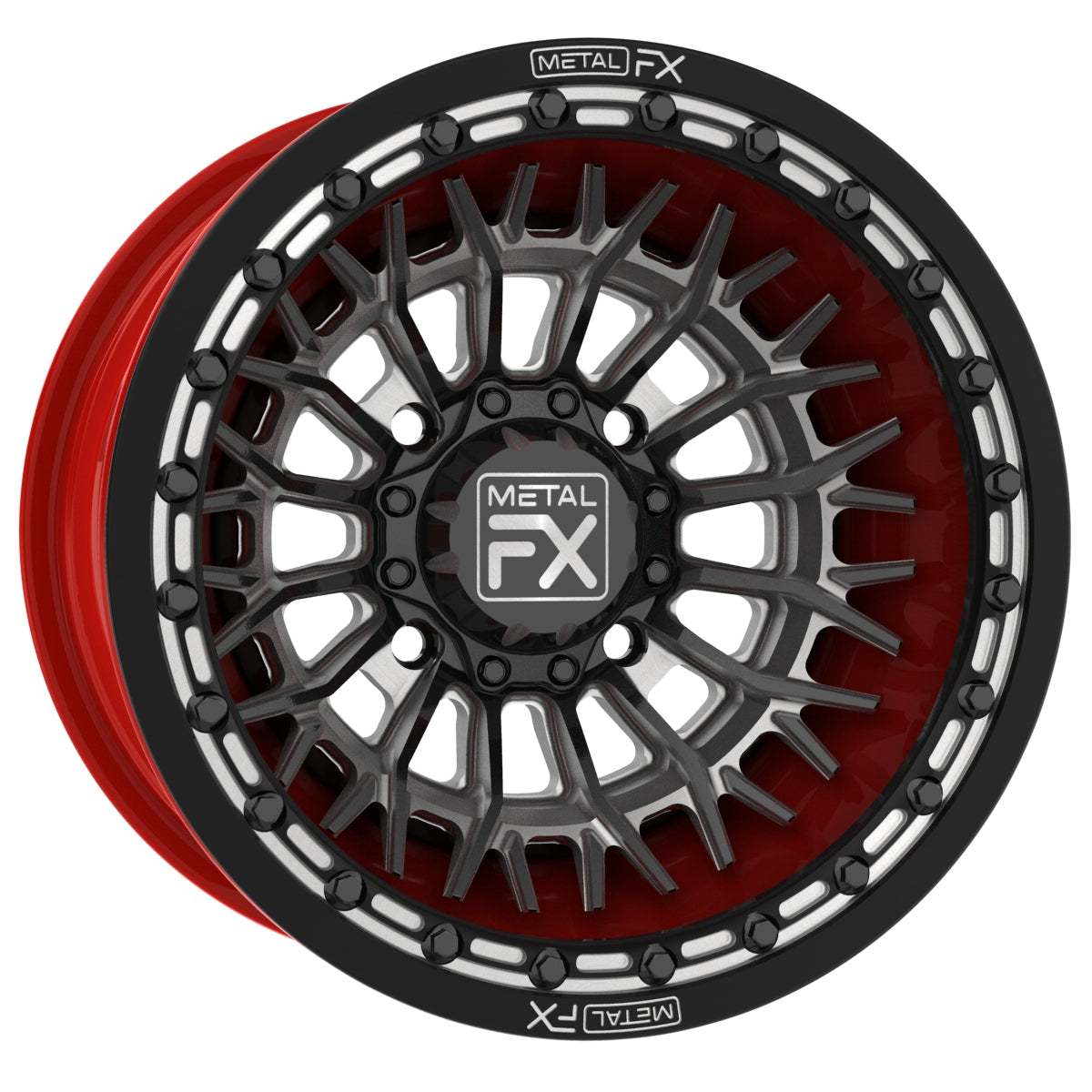

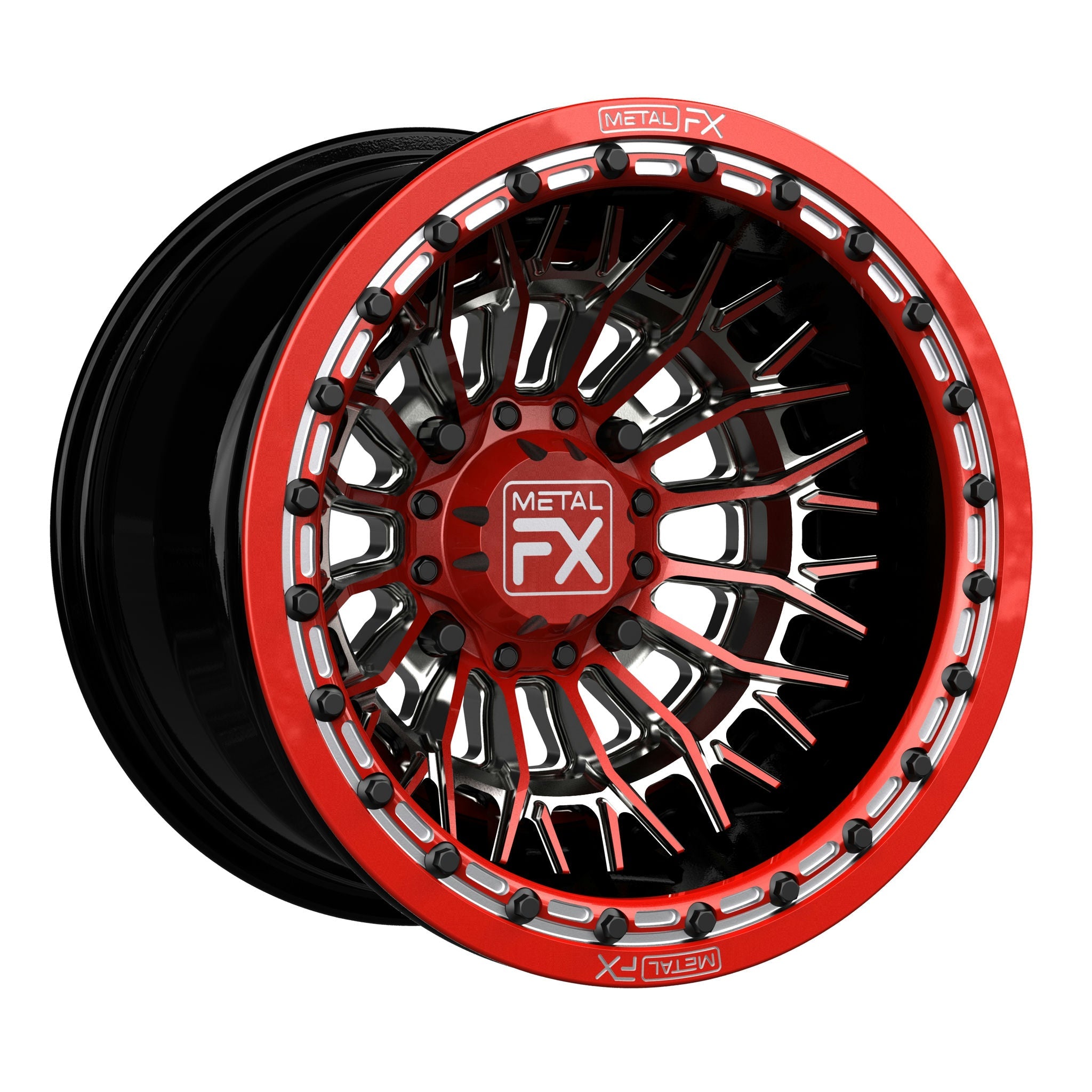

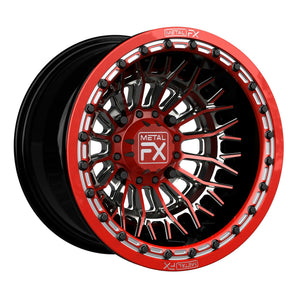

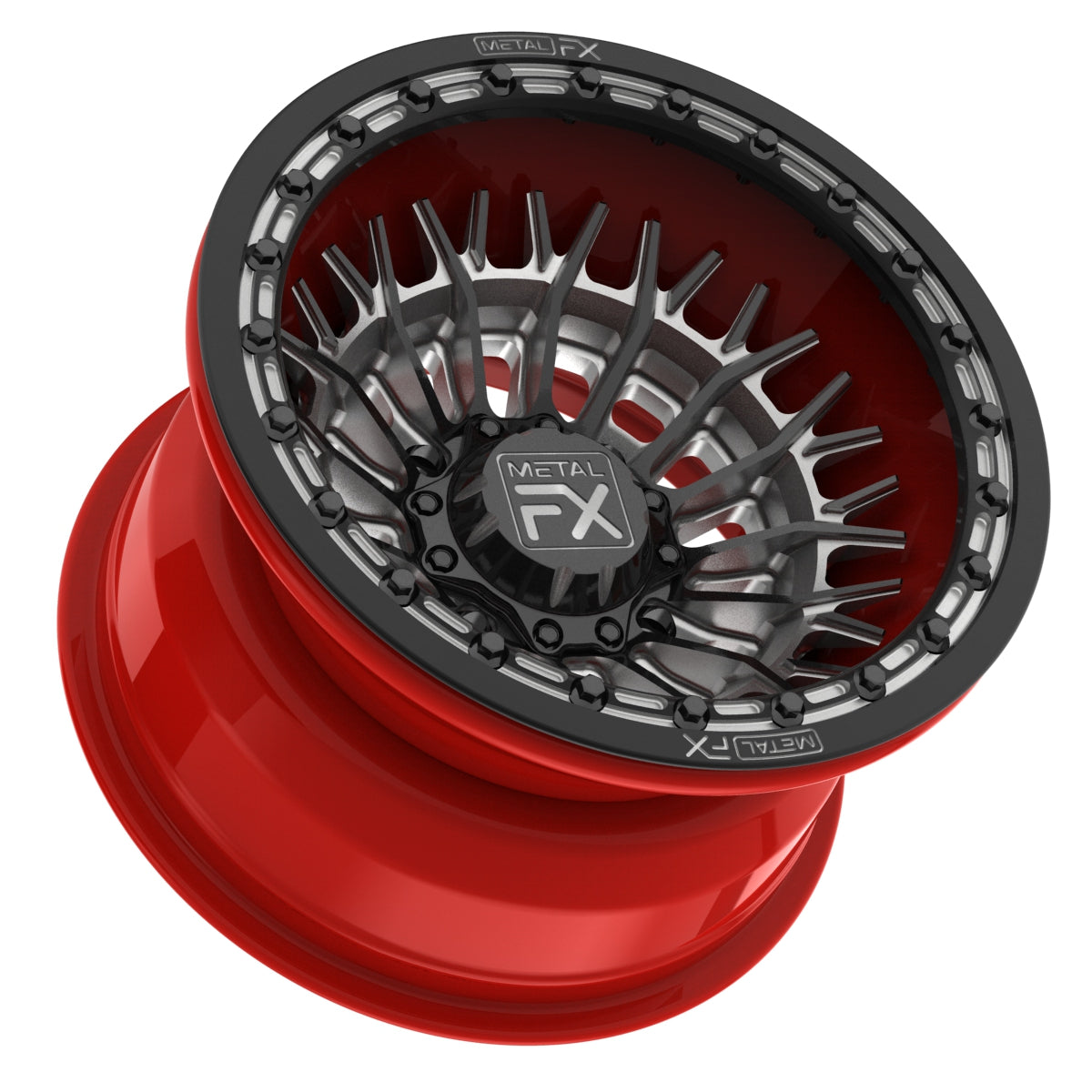

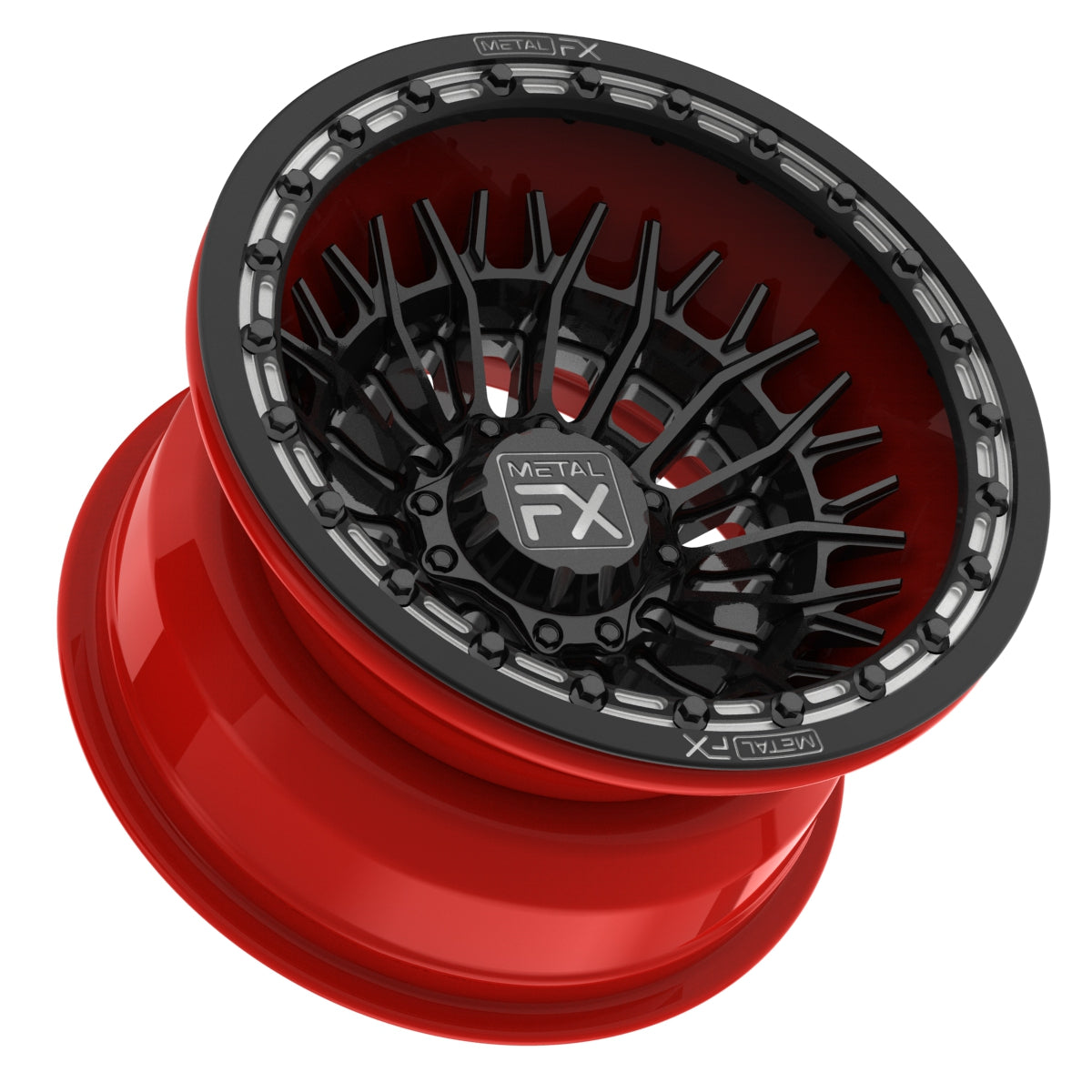

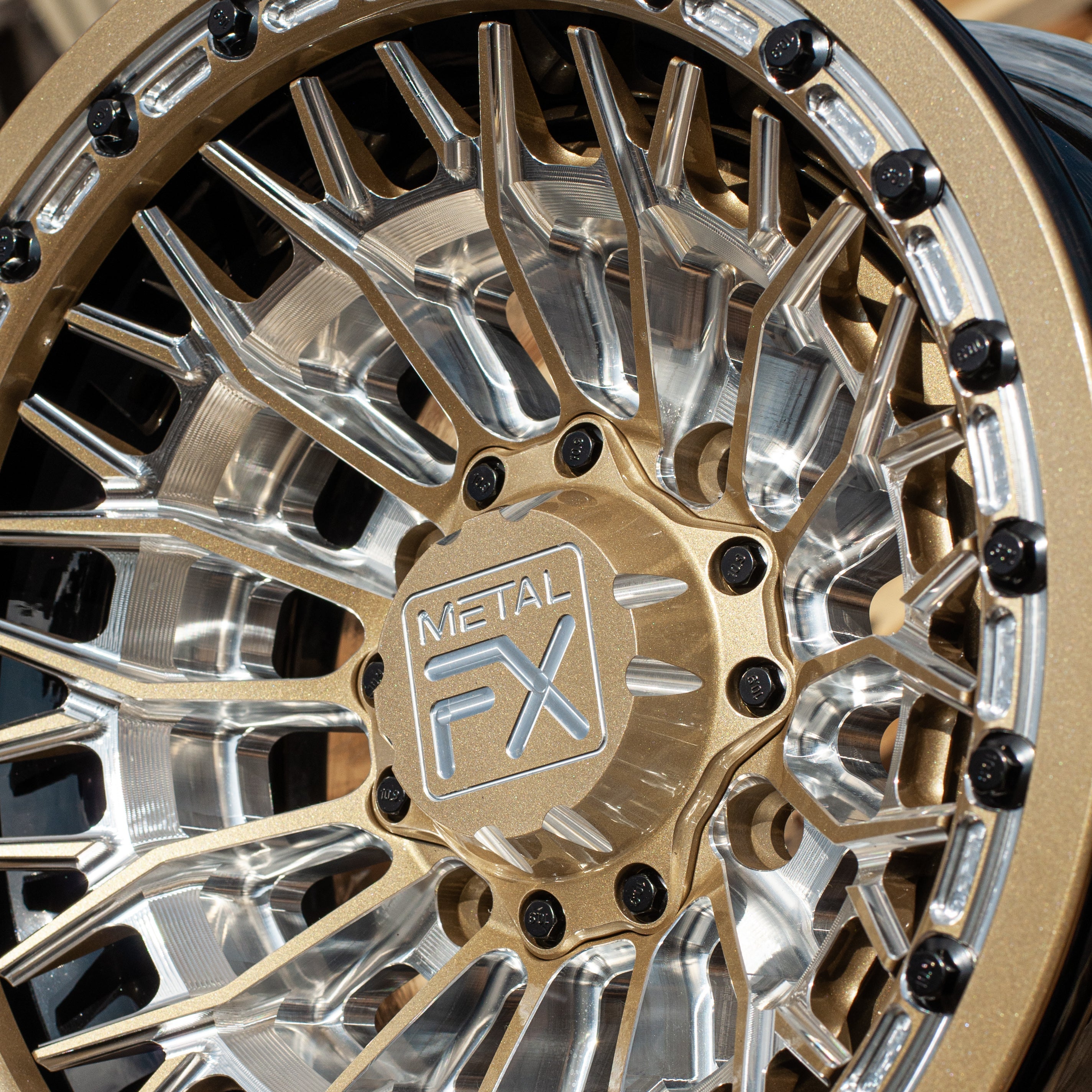

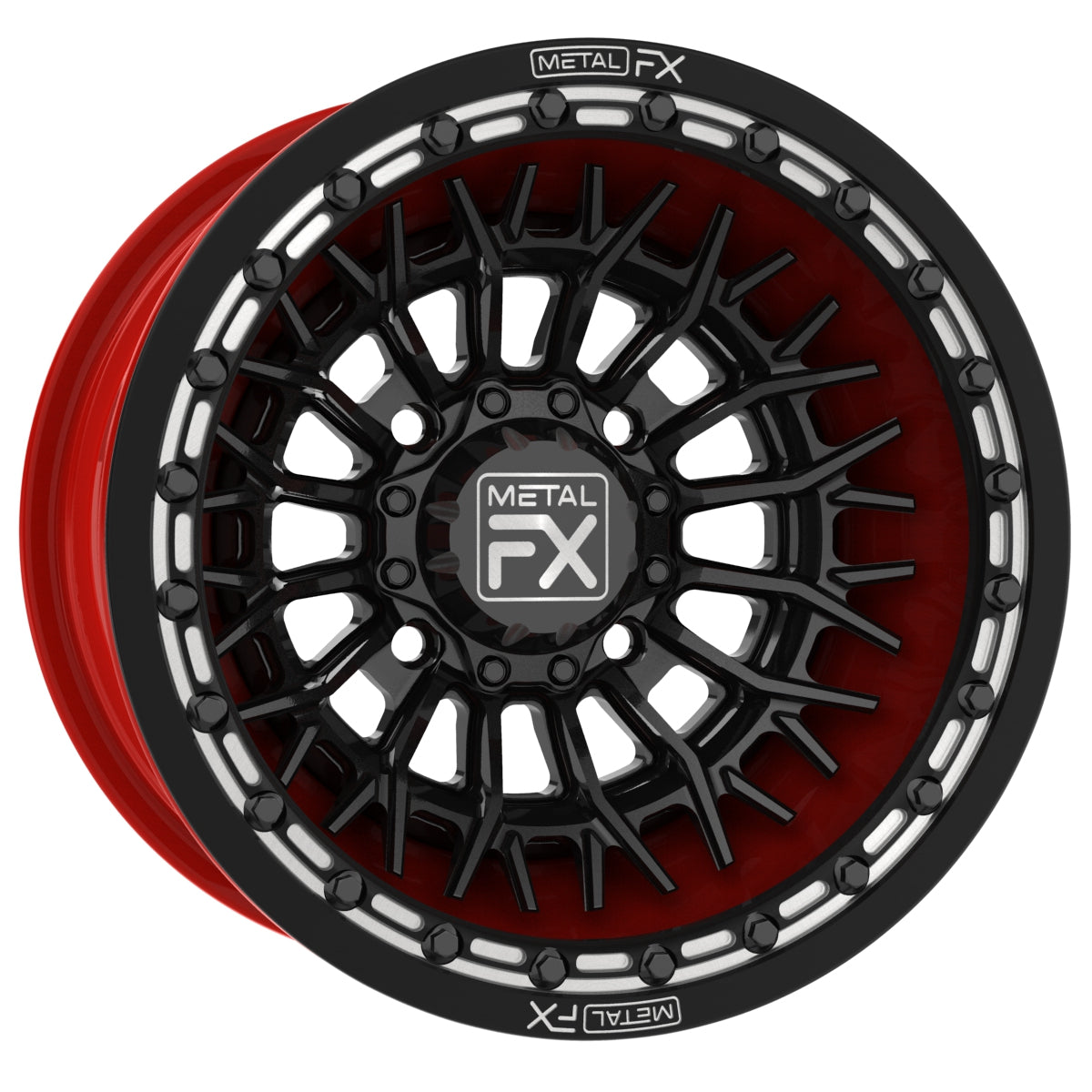

Metal FX Falcon Forged 3-Piece Beadlock 15" UTV Wheel 4-Lug

The Metal FX Falcon Forged 3-Piece Beadlock is a true beadlock UTV wheel for the 4-lug Can-Am, Honda, Polaris, Kawasaki, Yamaha, Arctic Cat and Speed UTV machines, built on a 4x136/4x137 or 4x156 bolt pattern in 15x8 and 15x11. It is a forged 3-piece wheel with hidden assembly bolts, a 6061-T6 billet center, a beadlock ring and a center cap, made in the USA, built from 6061-T6 billet and spun forged aluminum and offered in Custom and Raw finishes.

Metal FX rates this wheel at 1,000 lb per wheel and lists it at 19 to 21 lb, wheel only. Metal FX positions the Falcon 3-piece for dunes and desert riding. If you are shopping UTV forged wheels or custom beadlock wheels rather than a cast wheel with a forged ring, this is the step up. It comes in both 4x137 and 4x156, so the same design covers Can-Am X3 beadlock wheels and RZR beadlock wheels for 4-lug models.

Key Features

• Forged 3-piece construction in 6061-T6 billet and spun forged aluminum, 0.250-inch welded barrels
• True beadlock: the ring mechanically clamps the tire's outer bead
• 4x136/4x137 or 4x156 bolt pattern (choose your pattern)
• Size: 15x8 at -13mm (3.5+4.5) and 15x11 at -25mm (4.5+6.5)
• Load rating: 1,000 lb per wheel (Metal FX)
• Finishes: Custom and Raw
• Made in the USA

Built To Solve: Bent Wheels and Unseated Tires on 4-Lug UTVs

• Tires rolling off the bead when aired down for traction
• Cast wheels that bend or crack under hard hits
• Matching a premium wheel to a 4-lug hub
• Choosing a width without knowing the offset and backspacing
• Wanting a custom color instead of an off-the-shelf finish

Best For: 4-Lug Owners Who Want a Forged Beadlock

• Can-Am X3, Polaris RZR (4-lug), Honda Talon and other 4-lug owners shopping forged beadlock wheels
• Shoppers comparing 4x137 beadlock wheels and 4x156 beadlock wheels among UTV beadlock wheels
• Riders who air down for dunes, desert and rocks and want the bead held in place
• Owners shopping 15 inch beadlock wheels
• Builders who want a custom-color wheel to match the machine
• Owners comparing utv forged wheels against cast beadlocks
• Riders who only need a cast wheel should look at the Metal FX Delta Beadlock instead

Specifications

• Construction: forged 3-piece, 0.250-inch welded barrels

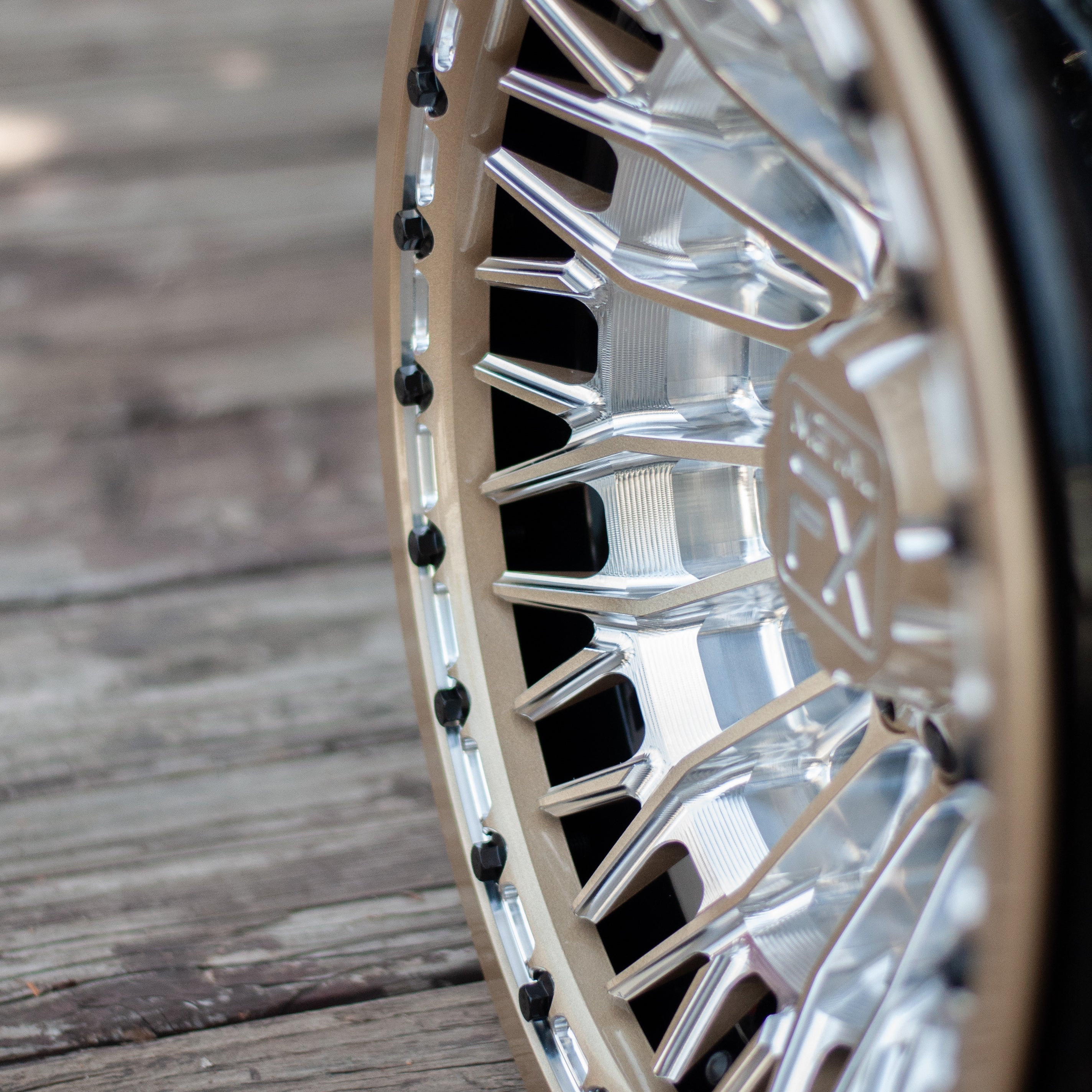

• Center profile: concave floating-spoke
• Material: 6061-T6 billet aluminum and 6061-T6 spun forged aluminum
• Type: true beadlock
• Size and offset: 15x8 at -13mm (3.5+4.5) and 15x11 at -25mm (4.5+6.5)
• Bolt pattern: 4x136/4x137 or 4x156
• Center bore: 110.2mm (4x136/4x137) or 132mm (4x156)
• Load rating: 1,000 lb (Metal FX)
• Wheel weight: 19 to 21 lb (wheel only)
• Finishes: Custom (Metal FX contacts you after the order to confirm colors); Raw (bare machined aluminum)
• Lug nuts: acorn-style, sold separately
• Made in the USA
• Manufacturer Part Numbers: 39394 (15x8, 4x136/4x137), 39395 (15x11, 4x136/4x137), 39396 (15x8, 4x156), 39397 (15x11, 4x156)

Fitment

Metal FX offers the Falcon in two 4-lug patterns and lists these machines for each. Choose the variant that matches your machine:

• 4x136/4x137 version: Can-Am Commander, Defender, Maverick and Maverick X3
• 4x136/4x137 version: Honda Pioneer 1000 and Talon 1000
• 4x136/4x137 version: Arctic Cat Stampede
• 4x156 version: Polaris RZR (4-lug models), General, Ranger and ACE
• 4x156 version: Kawasaki Teryx KRX 1000, Ridge and Mule PRO
• 4x156 version: Yamaha YXZ 1000R (2019+) and Wolverine RMAX
• 4x156 version: Arctic Cat Wildcat XX
• 4x156 version: Speed UTV El Jefe and Baja Bandit

Fitment is not guaranteed on applications not listed here. Confirm overall vehicle width with your chosen tires before ordering.

FAQ

Will the Metal FX Falcon Forged 3-Piece fit my UTV?

It comes in two 4-lug patterns. Metal FX lists the 4x136/4x137 version for Can-Am, Honda and the Arctic Cat Stampede, and the 4x156 version for Polaris, Kawasaki, Yamaha 2019+, the Arctic Cat Wildcat XX and Speed UTV. Choose the variant that matches your bolt pattern.

What is the difference between forged and cast Metal FX wheels?

Metal FX's cast wheels pair an A356-T6 cast wheel with a forged 6061-T6 ring. The Falcon Forged 3-Piece is forged throughout, from 6061-T6 billet and spun forged aluminum, and Metal FX rates it at 1,000 lb per wheel. Forged wheels carry their own part numbers and cost more.

What size and offset is the Falcon Forged 3-Piece?

This listing carries 15x8 at -13mm (3.5+4.5) and 15x11 at -25mm (4.5+6.5). Center bore is 110.2mm (4x136/4x137) or 132mm (4x156).

How does the Custom finish work?

Pick Custom and Metal FX contacts you after the order is placed to confirm your colors. Raw is bare machined aluminum.

Is it a true beadlock?

Yes. The beadlock ring mechanically clamps the tire's outer bead to the wheel, which helps keep the tire seated at lower pressures. Torque the ring bolts to spec and recheck them after the first ride.

What lug nuts does the Falcon need?

It takes acorn-style lug nuts, sold separately. Match the lug nut thread to your machine.

Why Metal FX

Metal FX designs its forged wheels around specific platforms, with each model drilled for a specific platform: a 4-lug line, an R line for Polaris's 5-lug machines and a 6R line for the Can-Am Maverick R. Among Metal FX UTV wheels, the forged UTV wheels sit above the cast line. The Falcon Forged 3-Piece is the forged counterpart to the Metal FX cast beadlocks, with its own part numbers.

Complete Your 4-Lug Forged Wheel Setup

Choose your bolt pattern, size and finish, then match a tire size and check overall width before you order the Metal FX Falcon Forged 3-Piece. Add an acorn-style lug kit with the right thread.
