DRT Motorsports Polaris PULSE Bar Single Switch System (2019–Current)

Sale price $85.00

Shipping calculated at checkout

Low stock

Routing auxiliary lighting from the front of a Polaris to the rear can leave long wiring runs and complex modifications to manage. Listed for: Polaris General XP 1000 2019 - 2027; Polaris General 4 1000 2019 - 2027; Polaris General XP 4 1000 2019 - 2027; Polaris General 1000 2019 - 2027; Polaris Ranger Crew XP 1000 2019 - 2027; Polaris Ranger XD 1500 2019 - 2027; Polaris Ranger Midsize 2019 - 2027; Polaris Ranger XP 900 2019 - 2027; Polaris Ranger XP 1000 2019 - 2027; Polaris Ranger XP 570 2019 - 2027; Polaris Ranger 1000 2019 - 2027; Polaris Ranger XP Kinetic 2019 - 2027; Polaris Ranger Crew XD 1500 2019 - 2027; Polaris Ranger XP 800 2019 - 2027; Polaris RZR RS1 2019 - 2027; Polaris RZR Pro R 2022 - 2027; Polaris RZR Pro S 2025 - 2027; Polaris RZR Pro XP 2020 - 2027; Polaris RZR Turbo R 2022 - 2027; Polaris RZR XP 2024+ 2024 - 2027; Polaris XPedition 2023 - 2027. Fitment is not guaranteed on unlisted applications. The single-switch system connects to the PULSE Bus Bar and routes power to two lights, with wiring for primary and backlight circuits.


Key Features

  • Direct connection to the Polaris PULSE Bus Bar
  • Single rocker switch controls primary and backlight circuits
  • Wiring supports two lights with red, black and yellow leads
  • Fully loomed 15-foot rear harness for front-to-rear routing
  • Sealed 10-amp fuse holder protects the lighting circuit

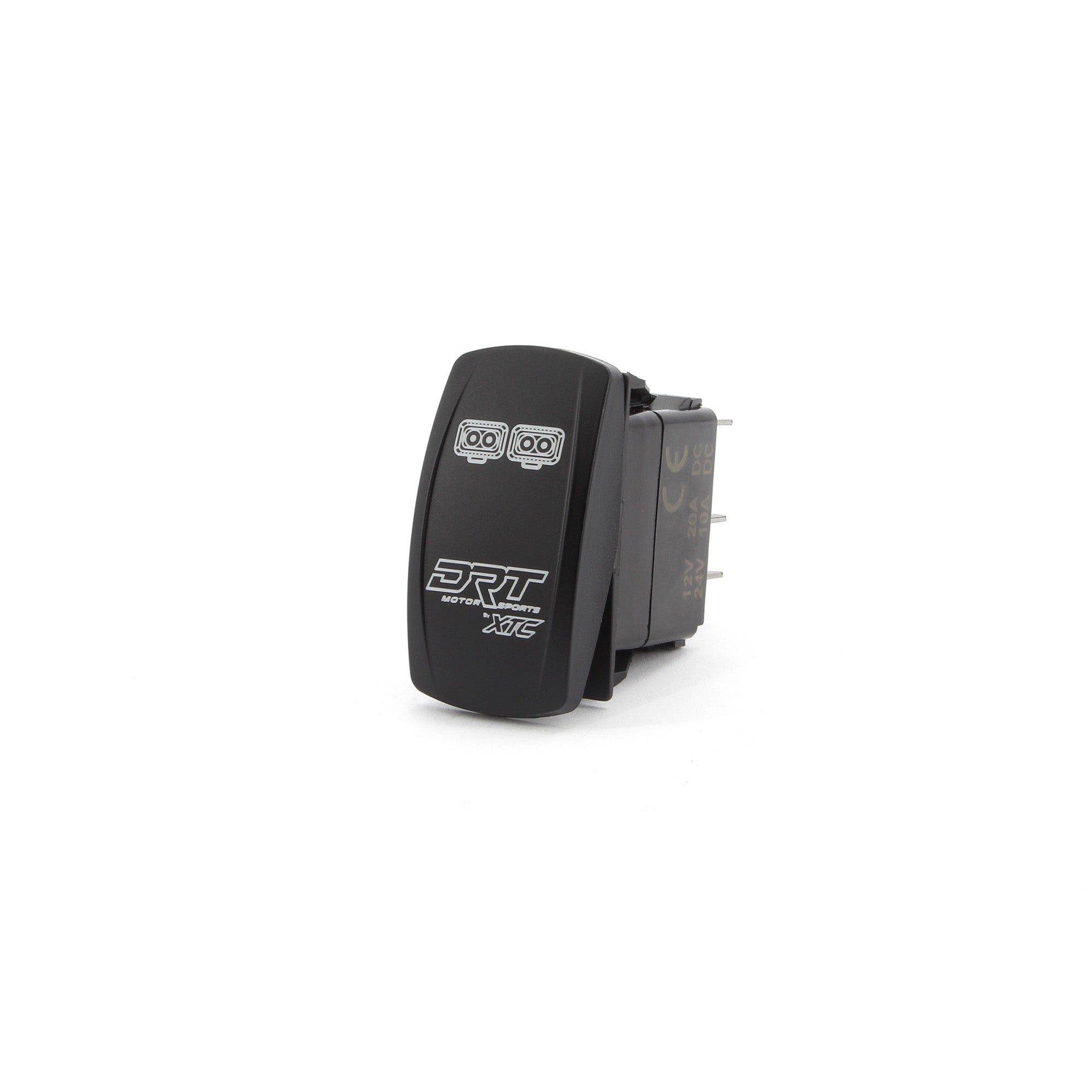

  • Custom blue/red rocker switch and 3-foot switch harness

Built To Solve: Polaris PULSE Bus Bar Lighting Wiring

  • Route rear lighting wiring through a fully loomed 15-foot harness.
  • Connect to the PULSE Bus Bar without complex wiring modifications.
  • Control primary and backlight circuits from one rocker switch.
  • Run two lights through a system rated for 10 amps or less.

Best For: Polaris Riders Adding Auxiliary Lighting

  • Polaris General riders with a PULSE Bus Bar wiring rear lights.
  • RZR Pro XP owners routing a lighting harness from front to rear.
  • Ranger owners connecting two lights to one switch.
  • PULSE-equipped Polaris owners running chase lights or backlight circuits.

Specifications

  • Current rating: 10 amps or less
  • Rear harness length: 15 feet
  • Switch harness length: 3 feet
  • Lighting capacity: Two lights on one switch
  • Wiring leads: Red, black and yellow
  • Manufacturer part numbers: 20005WH01501

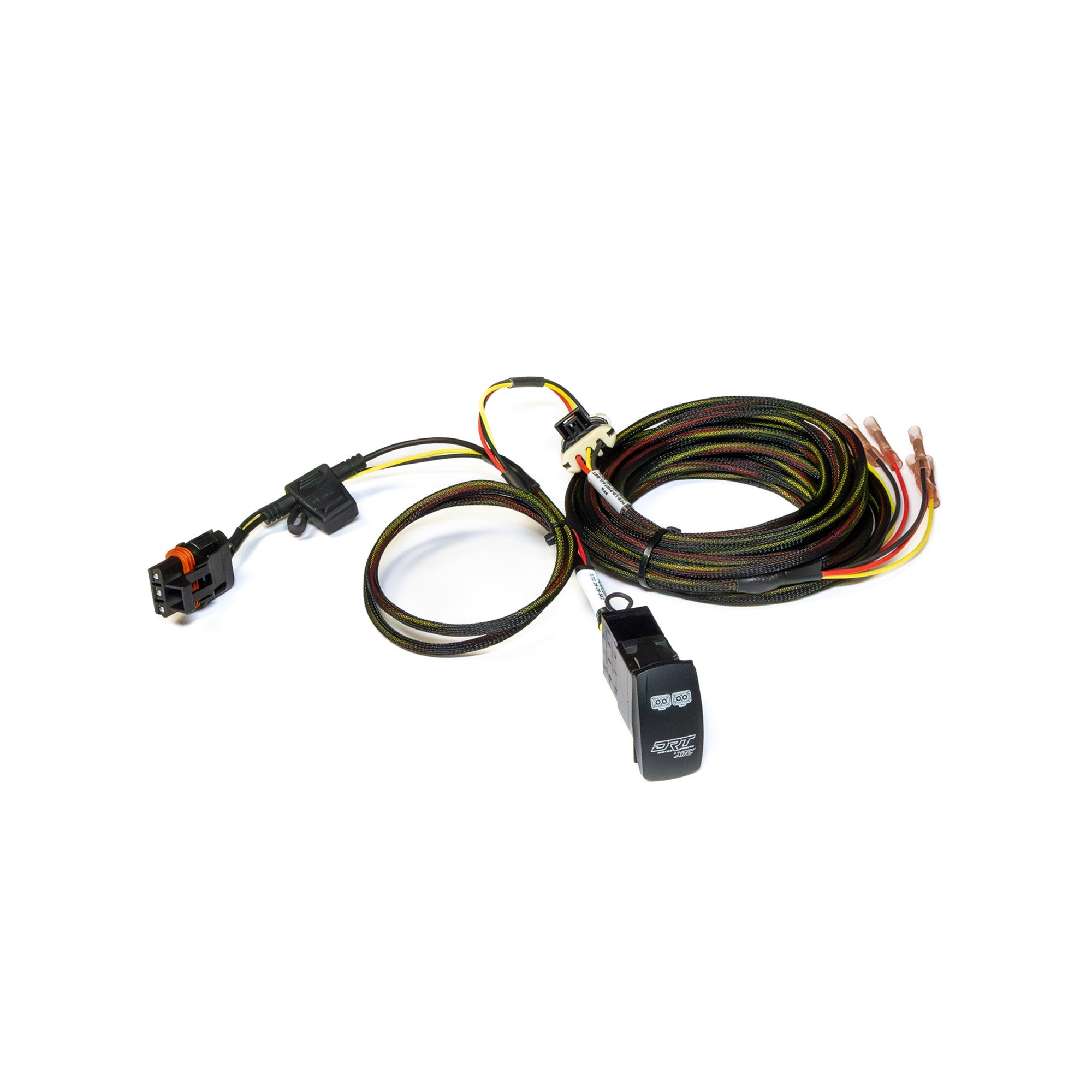

What's in the Box

  • 3-foot switch harness
  • Fully loomed 15-foot rear harness
  • Sealed fuse holder
  • Custom blue/red rocker switch

Fitment

  • Polaris General XP 1000 2019 - 2027
  • Polaris General 4 1000 2019 - 2027
  • Polaris General XP 4 1000 2019 - 2027
  • Polaris General 1000 2019 - 2027
  • Polaris Ranger Crew XP 1000 2019 - 2027
  • Polaris Ranger XD 1500 2019 - 2027
  • Polaris Ranger Midsize 2019 - 2027
  • Polaris Ranger XP 900 2019 - 2027
  • Polaris Ranger XP 1000 2019 - 2027
  • Polaris Ranger XP 570 2019 - 2027
  • Polaris Ranger 1000 2019 - 2027
  • Polaris Ranger XP Kinetic 2019 - 2027
  • Polaris Ranger Crew XD 1500 2019 - 2027
  • Polaris Ranger XP 800 2019 - 2027
  • Polaris RZR RS1 2019 - 2027
  • Polaris RZR Pro R 2022 - 2027
  • Polaris RZR Pro S 2025 - 2027
  • Polaris RZR Pro XP 2020 - 2027
  • Polaris RZR Turbo R 2022 - 2027
  • Polaris RZR XP 2024+ 2024 - 2027
  • Polaris XPedition 2023 - 2027

Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.


FAQ

Does connecting to the PULSE Bus Bar require complex wiring modifications?

No. Direct PULSE Bus Bar compatibility eliminates the need for complex wiring modifications.

How is the rear wiring routed?

The fully loomed rear harness is designed for routing from front to rear.

Is this switch system a choice for two auxiliary lights?

Yes. It is designed to power two lights on a single switch.

How long is the switch harness?

The switch harness is 3 feet long.

What is the maximum current rating?

The system is rated for 10 amps or less.

Which Polaris models can use this system?

It is intended for 2019–current Polaris models equipped with a PULSE Bus Bar. Check the model-specific year ranges listed above.


Why DRT Motorsports

DRT Motorsports designed this light-duty switch system with XTC Power Products for electrical integration.


Wire Your Polaris PULSE Bar Lighting

Choose the DRT Motorsports single-switch system for two-light control on a PULSE-equipped Polaris.
