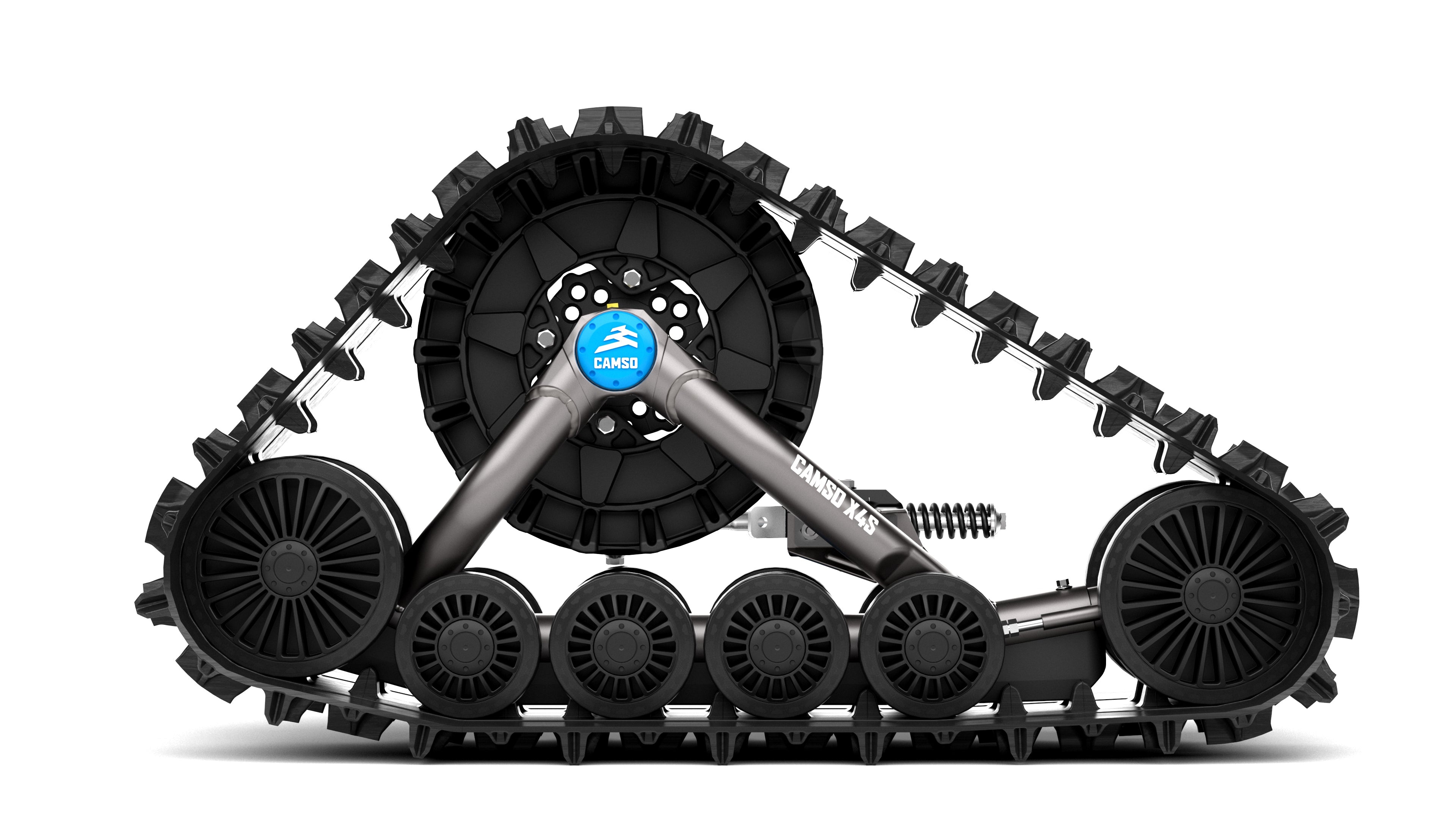

The Camso X4S track kit for the 2014-2021 Polaris Ranger 570 Mid-Size replaces all four wheels with rubber track systems so your machine keeps moving through deep snow instead of digging in. It ships as four track systems (two front, two rear) plus the adapted mount kit Camso specifies for this vehicle, putting about 2,000 sq. in. of track on the ground for flotation and traction.
If you are shopping for Polaris Ranger 570 tracks or Polaris Ranger 570 with tracks, this is the kit Camso lists for the Polaris Ranger 570 Mid-Size. Like all Camso side by side tracks, it is sold as a complete set of four track systems, not individual tracks.
Key Features
- Camso X4S system built for ATVs and mid-size side-by-sides from 400 to 700cc, matched to the Polaris Ranger 570 Mid-Size by an adapted mount kit
- Flex-design front tracks and flat-design rear tracks on an internal-drive, carbon steel frame
- Approx. 2,000 sq. in. contact patch, with about 3 in more ground clearance than tires according to Camso
- Double-bearing 5.3 in and 7.9 in wheels
- Backed by a 2-year limited warranty covering materials and workmanship
Built To Solve: Ranger 570 Snow Traction
- Tires that dig in and high-center the machine in deep or drifted snow
- Lost access to the cabin, fishing spot, feed lot or back acreage once the snow piles up
- Wheel spin on packed snow and ice when you are hauling a load
- Low ground clearance under the chassis on snow-covered trails
Best For: Ranger 570 Owners Who Ride Through Winter
- Polaris Ranger 570 owners who need the machine to work in deep snow, not just on cleared ground
- Owners who keep using the machine through winter: hunting, ice fishing, caring for land, or reaching a remote cabin
- Riders who have confirmed their exact Polaris model, trim and year against the fitment list below
Specifications
- Track system: Camso X4S
- Drive type: Internal drive
- Sprocket: 15 to 18 teeth
- Frame: Carbon steel
- Track width: Front 11.5 in / Rear 12.5 in
- Track length: Front 93.4 in / Rear 98.5 in
- Lug height: Front 1.125 in / Rear 1.25 in
- Rubber track design: Front Flex / Rear Flat
- Weight per track system: Front 72.6 lb / Rear 79.4 lb
- Ground clearance: Front 15 3/8 in / Rear 14 5/8 in
- Wheels: 5.3 in and 7.9 in, double bearing
- Contact patch: Approx. 2,000 sq. in.
- Included: 4 track systems (2 front, 2 rear) and the adapted mount kit for the listed vehicle
- Warranty: 2-year limited warranty covering manufacturing defects related to materials and workmanship
- Manufacturer Part Number: 7522-05-0295
Fitment
- Polaris 570 Ranger / EPS / Premium (Mid-Size) (2014-2021)
Fitment is taken from Camso's own vehicle application data. Fitment is not guaranteed on unlisted models, trims or years. Installing a track system will change your vehicle's length, width and ground clearance due to the tracks' offset.
FAQ
Will Camso tracks keep my Polaris Ranger 570 Mid-Size from getting stuck in deep snow?
They spread the machine's weight over about 2,000 sq. in. of rubber track instead of four tire contact patches, which gives far more flotation and traction in deep snow than stock tires. Driving style, snow conditions and load still matter, so no track kit makes a machine unstoppable.
How much ground clearance does the X4S give my Polaris Ranger 570 Mid-Size?
Camso lists ground clearance of 15 3/8 in at the front and 14 5/8 in at the rear, about 3 in more than tires, which helps the chassis ride over snow instead of plowing through it.
Which Polaris models and years does this kit fit?
Camso lists this kit for: Polaris 570 Ranger / EPS / Premium (Mid-Size) (2014-2021). Confirm your exact model, trim and year before ordering.
What comes in the box?
Four Camso X4S track systems (two front, two rear) and the adapted mount kit Camso specifies for the listed vehicle.
Is installation difficult, and are modifications needed?
The kit includes the adapted mount kit Camso specifies for this vehicle, and the official Camso installation video below walks through the process. Camso also publishes an installation guide for this kit, available on this page. Camso lists no special modification notes for this application.
Should I choose the UTV 4S1, X4S or ENDUR?
Camso positions the X4S for ATVs and mid-size side-by-sides from 400 to 700cc, the UTV 4S1 for side-by-sides from 400 to 1000cc, and the ENDUR for larger side-by-sides of 1000cc and more. The right system is the one Camso lists for your exact vehicle, which for this listing is the X4S.
Why Camso
Camso builds rubber track systems for ATVs, side-by-sides and snowmobiles, and every Camso X4S kit includes the adapted mount kit Camso specifies for the Polaris Ranger 570 Mid-Size. Every kit carries a 2-year limited warranty, and Camso publishes owner's manuals, installation guides and maintenance information for its track systems.
Complete Your Ranger 570 Winter Track Setup
Before ordering this Camso X4S track kit, confirm your Polaris Ranger 570 Mid-Size year, trim and the fitment notes above. Browse all UTV track systems if your machine is not listed here, and plan your install with the Camso installation guide and official Camso installation video below. Order from Dunes 2 Dezert SXS and we will ship it to you.
