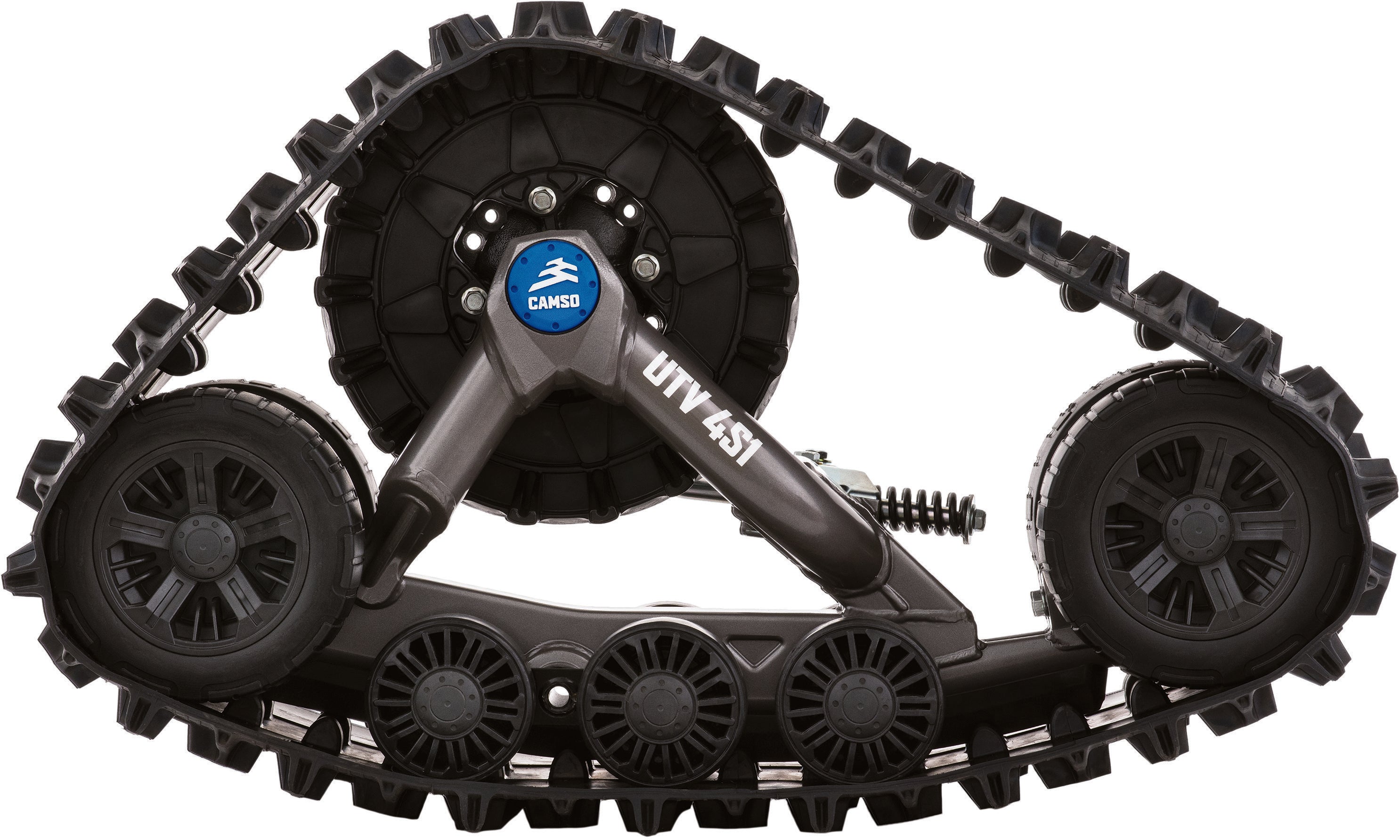

The Camso UTV 4S1 track kit for the 2010-2020 John Deere Gator XUV 825i replaces all four wheels with rubber track systems so your machine keeps moving through deep snow instead of digging in. It ships as four track systems (two front, two rear) plus the adapted mount kit Camso specifies for this vehicle, putting about 2,520 sq. in. of track on the ground for flotation and traction.
If you are shopping for John Deere Gator 825i tracks or John Deere Gator tracks, this is the kit Camso lists for the John Deere Gator XUV 825i. Like all Camso side by side tracks, it is sold as a complete set of four track systems, not individual tracks.
Key Features
- Camso UTV 4S1 system built for side-by-sides from 400 to 1000cc, matched to the John Deere Gator XUV 825i by an adapted mount kit
- Internal-drive track systems on a carbon steel frame
- Approx. 2,520 sq. in. contact patch with 1.125 in lugs front and rear
- Wider rear tracks (14 in) than front tracks (12.5 in)
- Camso rates the UTV 4S1 to climb 20° hills in deep snow, haul up to 1,000 lb of supplies or feed in deep snow, and tow a 2,500 lb shack at up to 15 MPH across ice and snow
- Backed by a 2-year limited warranty
Built To Solve: Gator XUV 825i Snow Traction
- Tires that dig in and high-center the machine in deep or drifted snow
- Lost access to the cabin, fishing spot, feed lot or back acreage once the snow piles up
- Wheel spin on packed snow and ice when you are hauling a load
- Low ground clearance under the chassis on snow-covered trails
Best For: Gator XUV 825i Owners Who Ride Through Winter
- John Deere Gator XUV 825i owners who need the machine to work in deep snow, not just on cleared ground
- Owners who keep using the machine through winter: hunting, ice fishing, caring for land, or reaching a remote cabin
- Riders who have confirmed their exact John Deere model, trim and year against the fitment list below
Specifications
- Track system: Camso UTV 4S1
- Drive type: Internal drive
- Sprocket: 15 to 18 teeth
- Frame: Carbon steel
- Track width: Front 12.5 in / Rear 14 in
- Track length: Front 98.5 in / Rear 116.7 in
- Lug height: 1.125 in front and rear
- Weight per track system: Front 103 lb / Rear 120 lb
- Ground clearance: Front 16 3/8 in / Rear 16 1/2 in
- Contact patch: Approx. 2,520 sq. in.
- Included: 4 track systems (2 front, 2 rear) and the adapted mount kit for the listed vehicle
- Warranty: 2-year limited warranty
- Manufacturer Part Number: 6522-20-1125
Fitment
- John Deere Gator XUV 825 / Power Steering / Midnight Black SE / S4 / E / M (2010-2020)
Camso installation notes for this application: some permanent interference with the vehicle is expected.
Fitment is taken from Camso's own vehicle application data. Fitment is not guaranteed on unlisted models, trims or years. Installing a track system will change your vehicle's length, width and ground clearance due to the tracks' offset.
FAQ
Will Camso tracks keep my John Deere Gator XUV 825i from getting stuck in deep snow?
They spread the machine's weight over about 2,520 sq. in. of rubber track instead of four tire contact patches, which gives far more flotation and traction in deep snow than stock tires. Driving style, snow conditions and load still matter, so no track kit makes a machine unstoppable.
Can I haul and tow with this track kit on my John Deere Gator XUV 825i?
Camso rates the UTV 4S1 to haul up to 1,000 lb of supplies or feed in deep snow and to tow a 2,500 lb shack at up to 15 MPH across ice and snow. Always stay within your John Deere Gator XUV 825i's own payload and towing ratings.
Which John Deere models and years does this kit fit?
Camso lists this kit for: John Deere Gator XUV 825 / Power Steering / Midnight Black SE / S4 / E / M (2010-2020). Confirm your exact model, trim and year before ordering.
What comes in the box?
Four Camso UTV 4S1 track systems (two front, two rear) and the adapted mount kit Camso specifies for the listed vehicle.
Is installation difficult, and are modifications needed?
The kit includes the adapted mount kit Camso specifies for this vehicle, and the official Camso installation video below walks through the process. For this application Camso notes that some permanent interference with the vehicle is expected.
Should I choose the UTV 4S1, X4S or ENDUR?
Camso positions the X4S for ATVs and mid-size side-by-sides from 400 to 700cc, the UTV 4S1 for side-by-sides from 400 to 1000cc, and the ENDUR for larger side-by-sides of 1000cc and more. The right system is the one Camso lists for your exact vehicle, which for this listing is the UTV 4S1.
Why Camso
Camso builds rubber track systems for ATVs, side-by-sides and snowmobiles, and every Camso UTV 4S1 kit includes the adapted mount kit Camso specifies for the John Deere Gator XUV 825i. Every kit carries a 2-year limited warranty, and Camso publishes owner's manuals, installation guides and maintenance information for its track systems.
Complete Your Gator XUV 825i Winter Track Setup
Before ordering this Camso UTV 4S1 track kit, confirm your John Deere Gator XUV 825i year, trim and the fitment notes above (some permanent interference with the vehicle is expected). 2021 and newer XUV 825M S4 machines (serial 040001 and up) use Camso kit 6522-20-1466. Browse all UTV track systems if your machine is not listed here, and plan your install with the official Camso installation video below. Order from Dunes 2 Dezert SXS and we will ship it to you.
