Squadron 2.0 On/Off 1-Light Harness w/ Backlight | Baja Designs

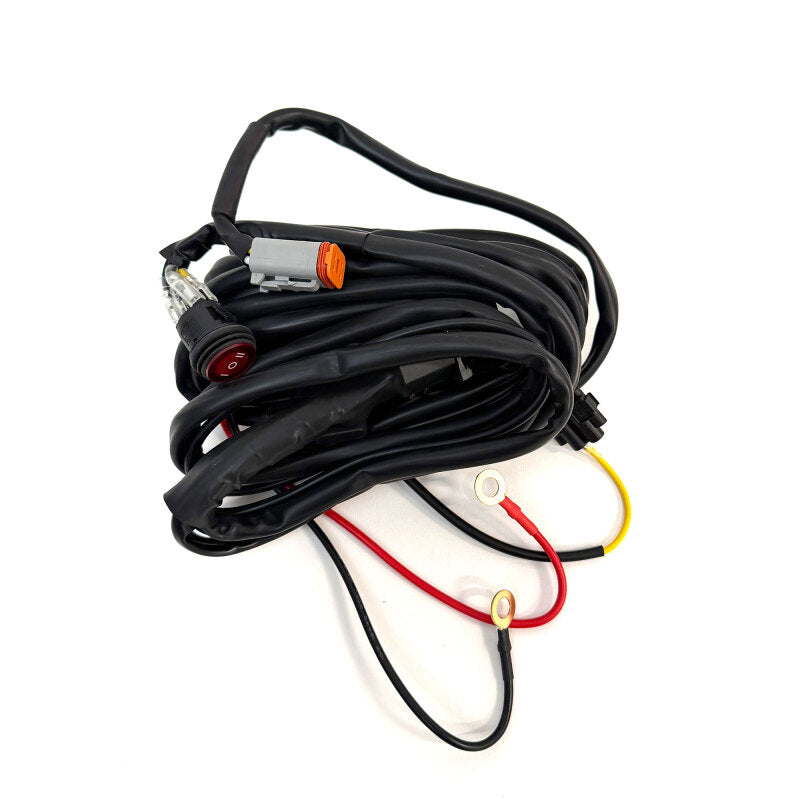

Wiring a single Squadron 2.0 light straight to the battery without a relay or switch is a recipe for a blown fuse or a light you can not turn off. This 4-pin Deutsch relay harness powers one Squadron 2.0 light directly from the battery, with an included three-position toggle switch and backlight support, and it can be expanded with splitters to run more lights.

Key Features

• Relay harness for one Squadron 2.0 Sport or Pro light
• Rated up to 150 watts
• Includes a 3/4-inch three-position toggle switch
• Backlight circuit supported
• Expandable to more lights with splitters
• 4-pin Deutsch connection, direct-to-battery

Built To Solve: No Safe Switched Power For A Single Squadron 2.0 Light

• Light wired without a relay or fuse
• No dash switch to turn the light on and off
• Backlight circuit left unpowered
• Battery draw not properly protected

Best For: Single-Light Squadron 2.0 Installs

• Riders adding one Squadron 2.0 light
• Builds that may expand to two lights later with a splitter
• Owners who want a relay, switch, and backlight in one harness

Specifications

• Type: relay on/off harness with switch
• Supports: 1 Squadron 2.0 Pro or Sport (expandable)
• Max power: up to 150 watts
• Switch: 3/4-inch three-position toggle, included
• Backlight: supported
• Connection: 4-pin Deutsch, direct-to-battery
• Warranty: Lifetime Limited Warranty

Fitment

Universal Baja Designs accessory compatible with Squadron 2.0 Sport and Pro lights and compatible 4-pin Deutsch lights. This is not vehicle-specific; confirm your light model and connector type before ordering.

FAQ

Does this harness include a switch?

Yes. It includes a 3/4-inch three-position toggle switch to control the light from the dash.

How many lights can it run?

It powers one Squadron 2.0 light and can be expanded to more using Baja Designs splitters.

Does it support the backlight function?

Yes. The harness supports the Squadron 2.0 backlight circuit.

Is it universal?

Yes. It fits any Squadron 2.0 Sport or Pro light with a 4-pin Deutsch connector and is not vehicle-specific.

How does it connect to power?

It is a relay harness that connects directly to the battery and is switched at the dash.

Can I add a second light later?

Yes. Add a Baja Designs splitter to run additional Squadron 2.0 lights from this harness.

Why Baja Designs

Baja Designs is the Scientists of Lighting, trusted by desert racers for gear that survives real abuse. Their Squadron 2.0 wiring is built to the same standard as their lights and backed by the Baja Designs Lifetime Limited Warranty, so your wiring is as reliable as the lights it powers.

Build Out Your Squadron 2.0 Lighting

This on/off relay harness is the backbone of a single-light Squadron 2.0 install. Add a splitter to run a second pod, an extension to reach a roof light, and a wire hider kit to route it cleanly. Order from Dunes 2 Dezert SXS.
