XTC Kawasaki KRX Turn Signal Kit (2020-2027)
Shipping calculated at checkout
Low stock
A turn signal left flashing after a lane change or turn can mislead other drivers. A timer that runs out while the Kawasaki KRX is stopped at a light can also cancel the signal before the turn. Listed for: Kawasaki Teryx KRX 1000 2020 - 2027; Kawasaki Teryx KRX4 1000 2020 - 2027. Fitment is not guaranteed on unlisted applications. The billet lever starts an 8-, 20-, or 75-second signal cycle. Smart Brake Hold pauses the countdown while the brakes are applied, and the vehicle-specific harness plugs inline with the factory rear light harness.
Key Features
- Billet aluminum lever activates timed turn signals
- Three automatic cancellation times: 8, 20, and 75 seconds
- Smart Brake Hold pauses the signal timer while the brakes are applied
- A second lever press manually cancels the signal

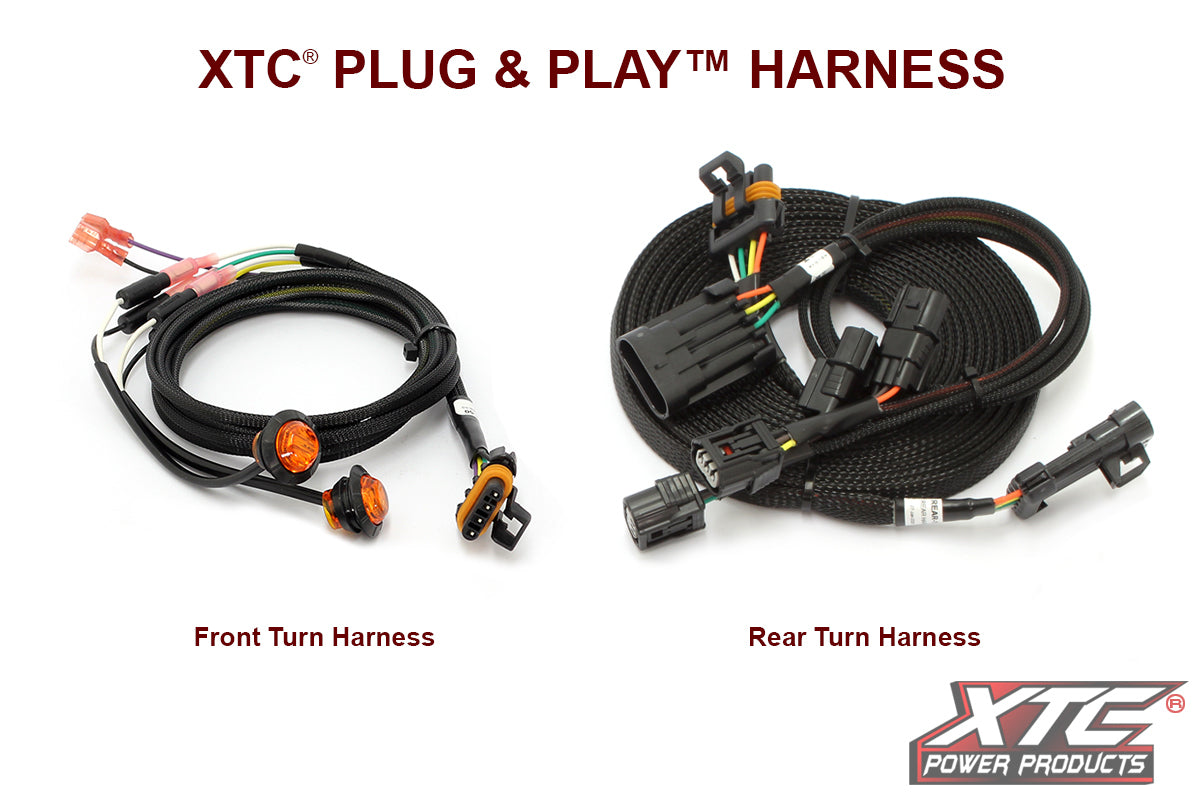

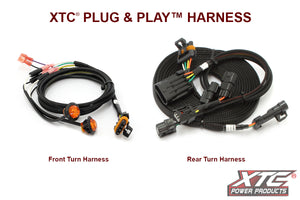

- Vehicle-specific harness plugs inline with the factory rear light harness
- Opposing brake light operates while the selected turn signal flashes
- Hazard and horn functions operate from a custom rocker switch
Built To Solve: Kawasaki KRX Turn Signal Timing and Brake Light Control
- Choose a short, standard, or extended signal cycle with the billet lever.
- Keep the countdown paused while holding the brake at a light.
- Cancel a signal early by pressing the lever a second time.
- Connect to the rear factory light harness without cutting or crimping wires.
Best For: Kawasaki KRX Riders Adding Turn Signals
- KRX riders who prefer a billet lever to a turn signal rocker switch
- Riders who want automatic signal cancellation after a lane change or turn
- KRX owners who want to use the factory rear lights for turn signals
- Riders looking for a vehicle-specific rear light harness connection
Specifications
- Signal timing: 8, 20, or 75 seconds
- Lever material: Billet aluminum
- Control box: Solid-state
- Manufacturer part numbers: ATS-L-KAW-SV3-DRL

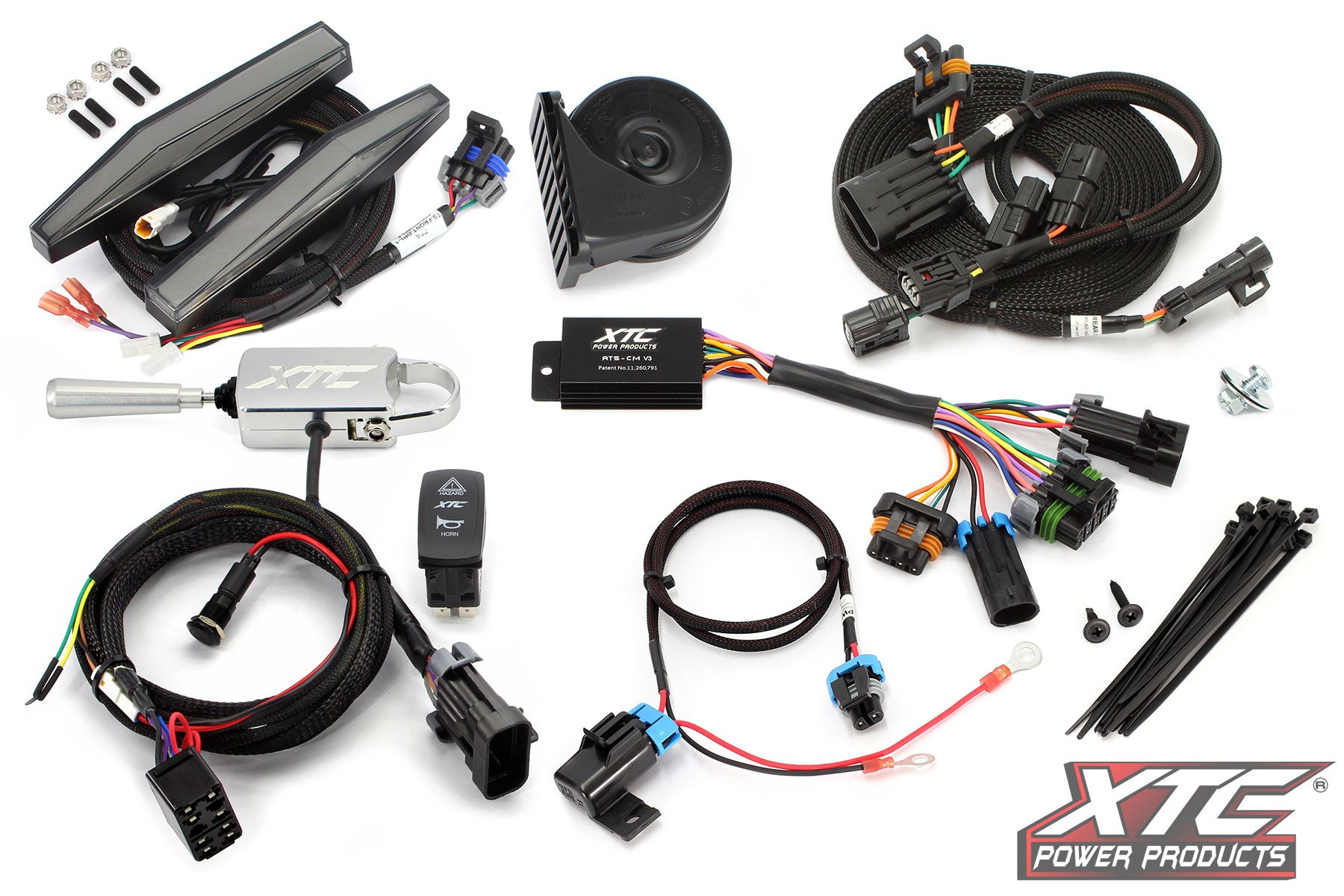

What's in the Box

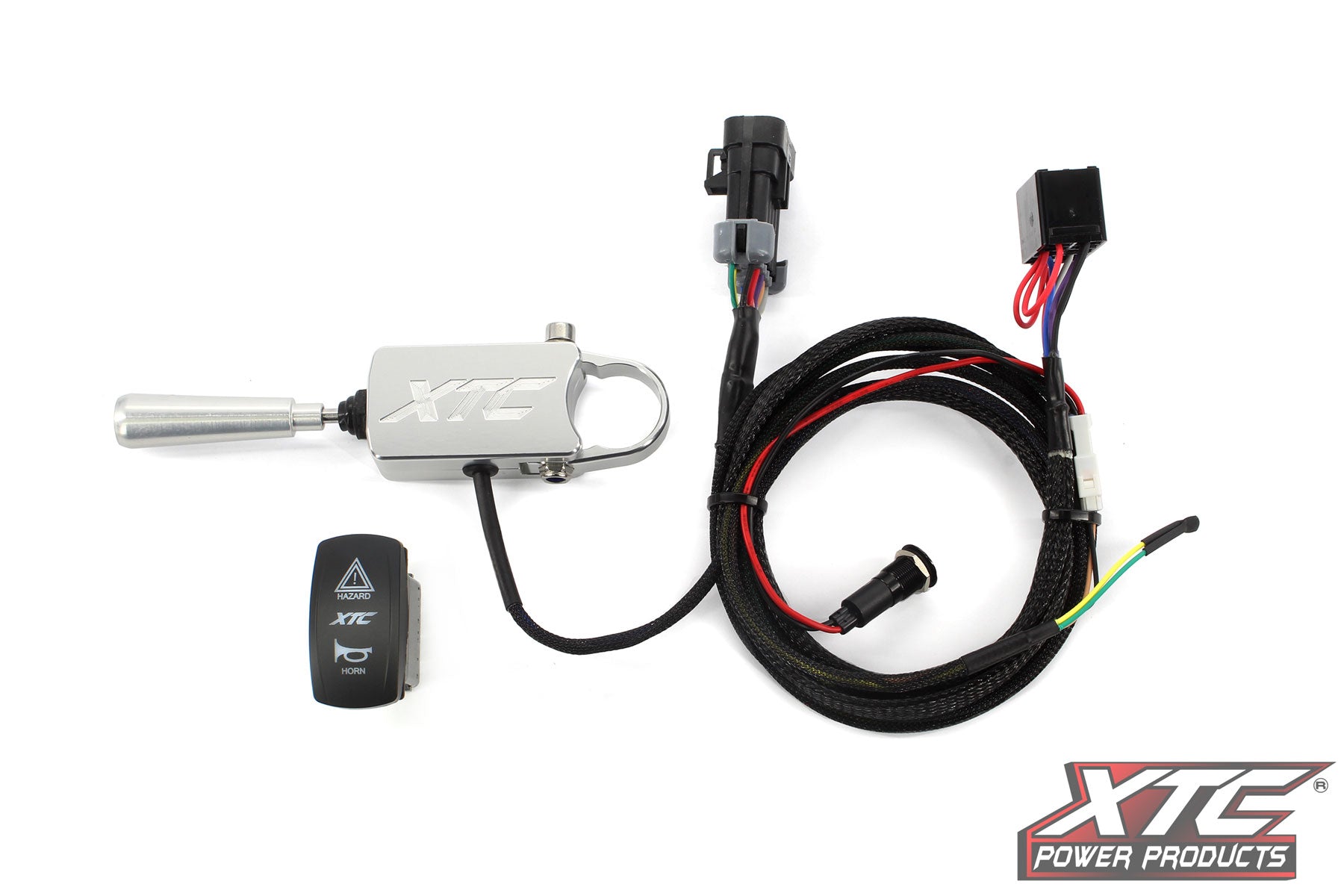

- Billet aluminum turn signal lever
- Hazard/horn rocker switch
- FIAMM horn
- Vehicle-specific rear light harness
Fitment
- Kawasaki Teryx KRX 1000 2020 - 2027
- Kawasaki Teryx KRX4 1000 2020 - 2027
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Do the wires need to be cut or crimped?
No. The vehicle-specific connection installs without cutting or crimping wires.
How does the kit connect to the rear lights?
The vehicle-specific harness plugs inline with the rear factory taillight harness.
How do I choose a signal duration with the lever?
A quick press starts the 8-second cycle. Hold the lever for 2 seconds for a 20-second cycle or 5 seconds for a 75-second cycle.
How many automatic signal timing settings are there?
There are three: 8, 20, and 75 seconds.
What happens to the signal timer when I apply the brakes?
Smart Brake Hold pauses the countdown while the brakes are applied and resumes it when they are released.
Why XTC Power Products
XTC uses a solid-state ATS control box and a vehicle-specific harness that plugs inline with the KRX factory rear light harness.
