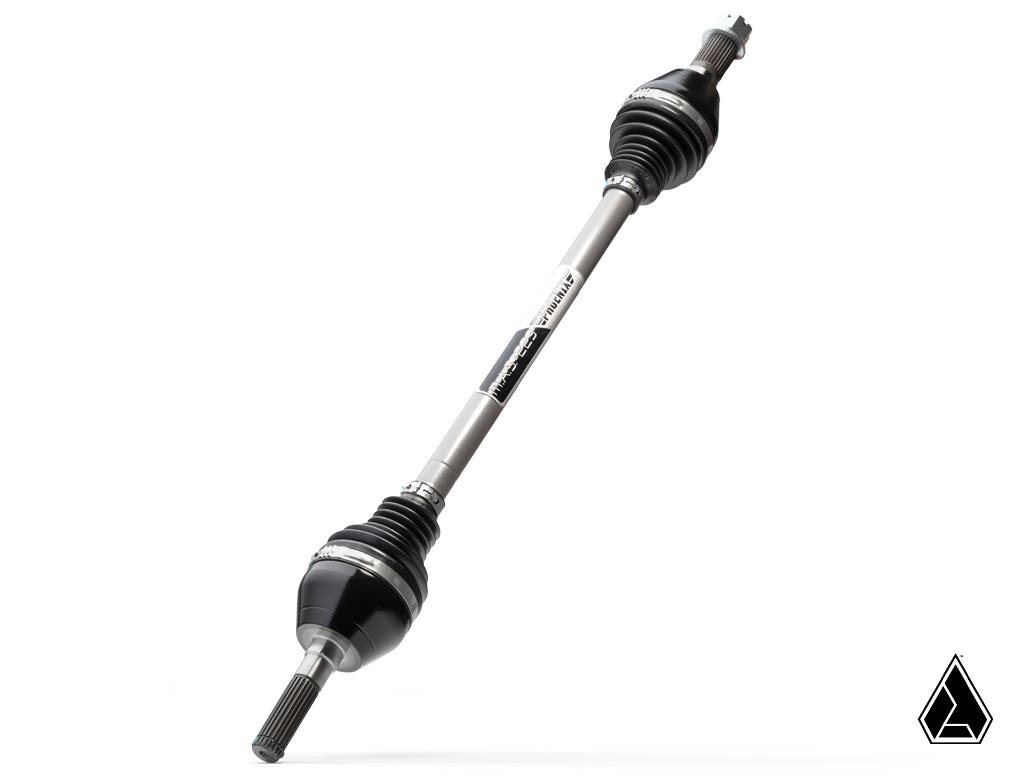

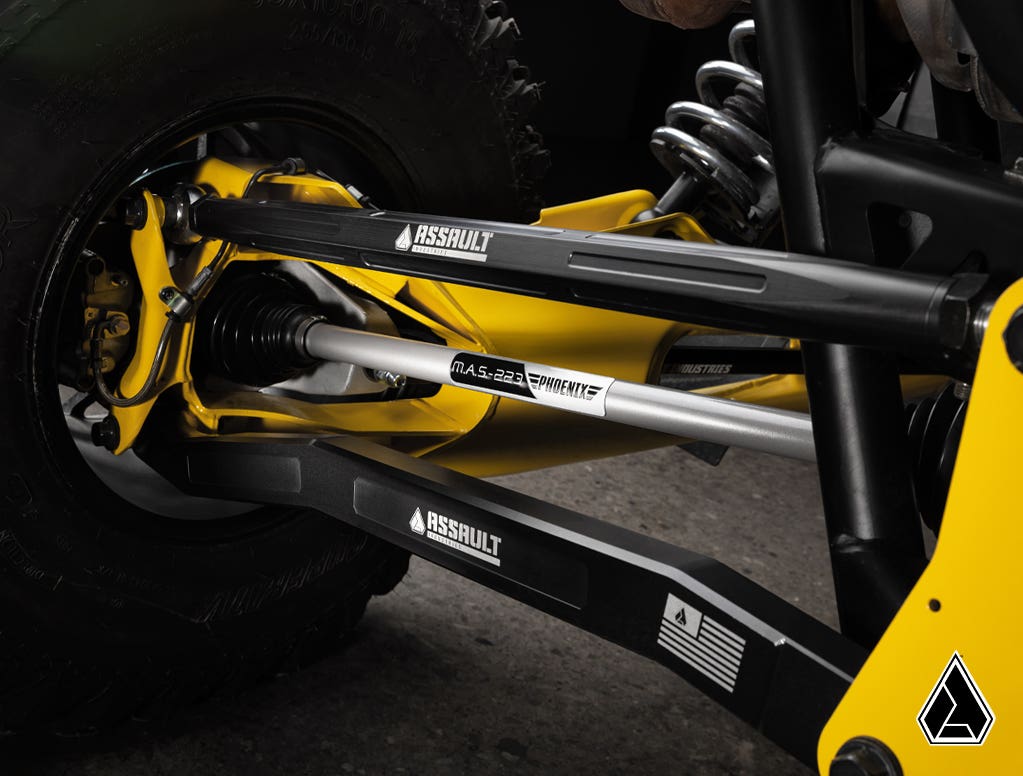

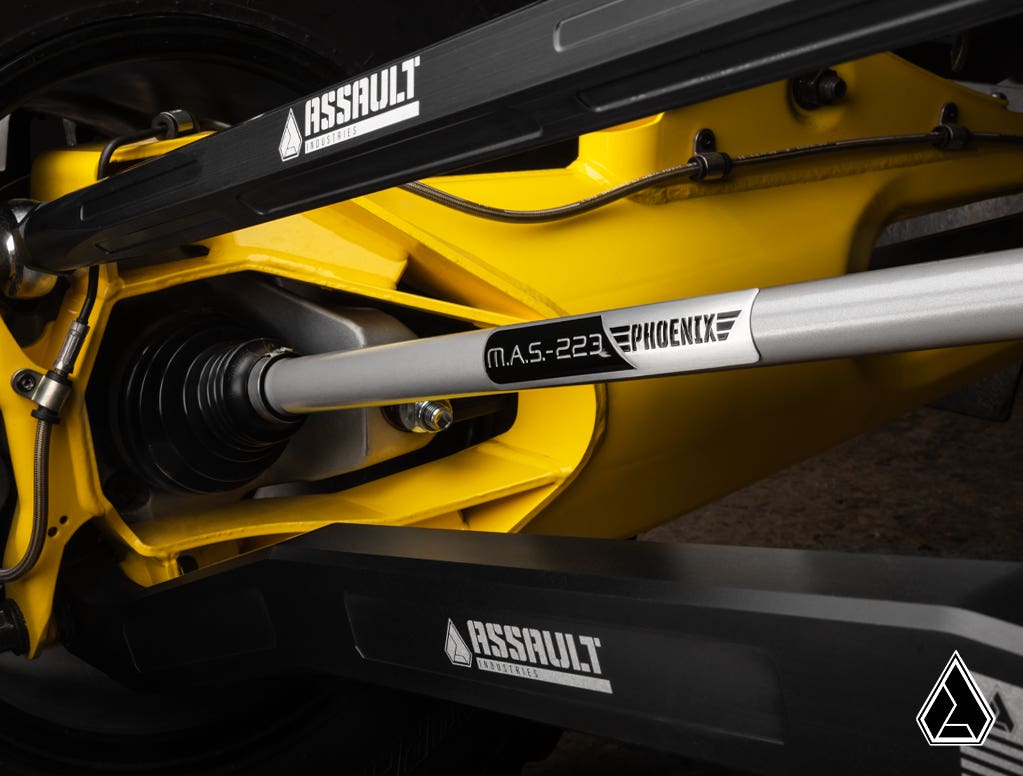

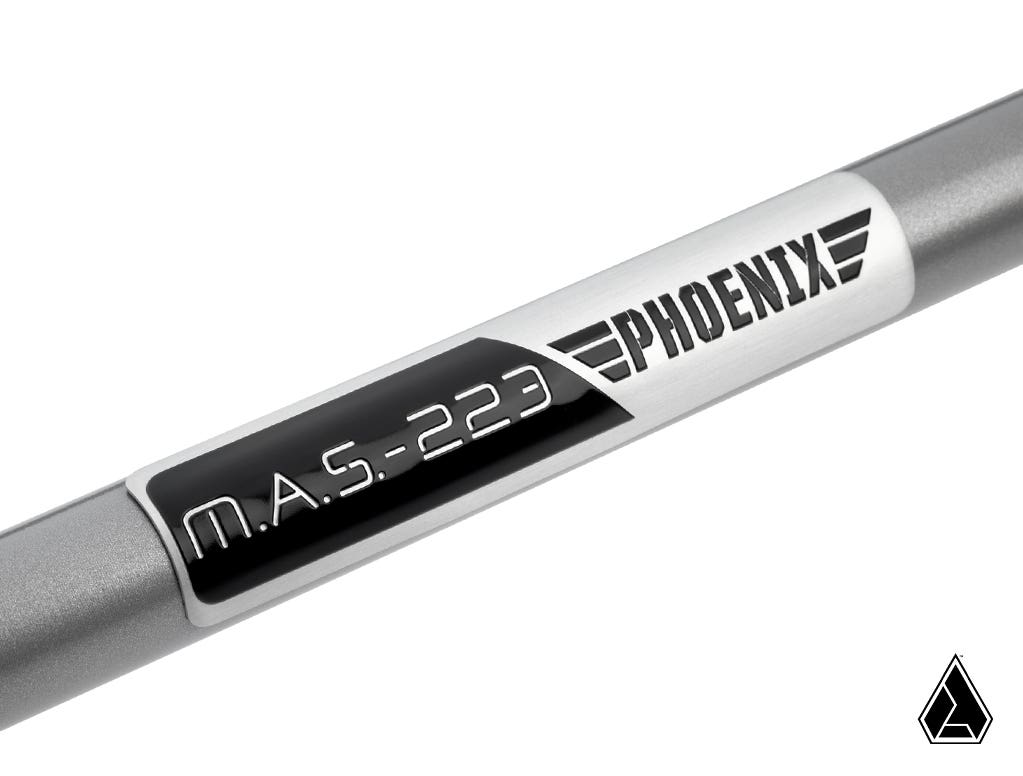

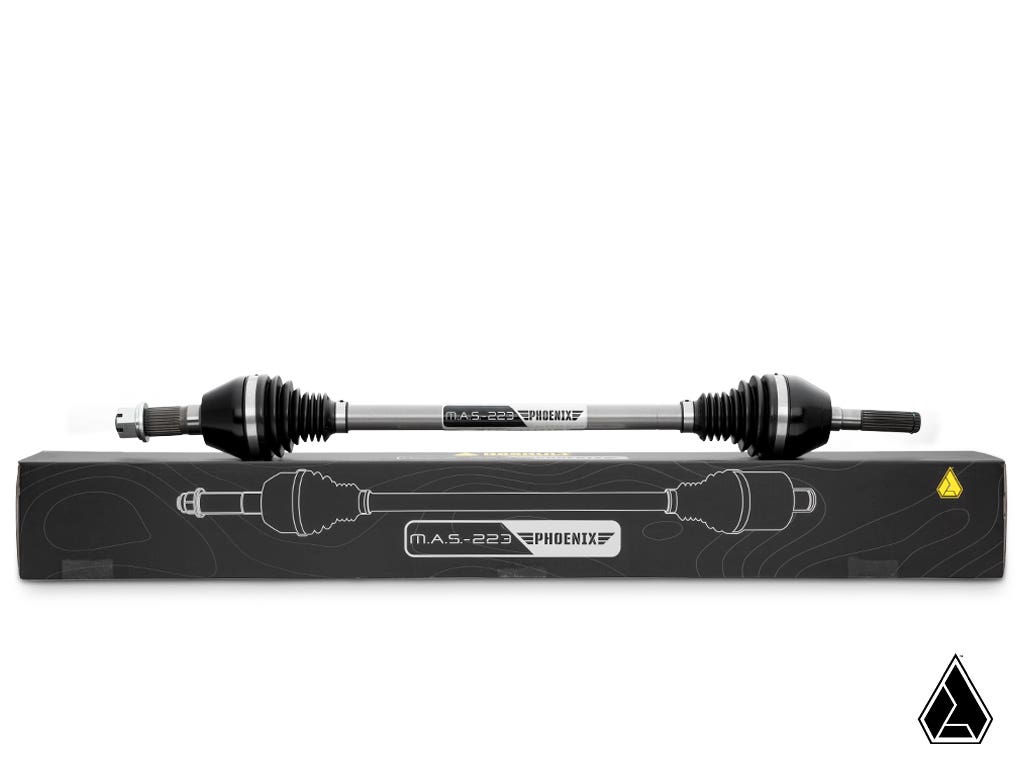

Assault Industries Can-Am Maverick X3 Phoenix Axles (2017+)

Assault Industries MAS-223 Phoenix Axles are stock-length replacement axles for the 2017+ Can-Am Maverick X3 and X3 MAX, in 64 inch and 72 inch widths, with or without Smart-Lok. They pair heat-treated 4340 chromoly shafts, larger than stock, with Assault's proprietary high-temp grease, which showed no breakdown at 586.4°F in lab testing.

Choose your axle position, then 64 inch or 72 inch machine width, then Non Smart-Lok or Smart-Lok. Each axle is sold individually.

These Can-Am X3 axles cover every common setup. Pick a Can-Am X3 front axle or a Can-Am Maverick X3 rear axle, then your width: Can-Am X3 64 axles for 64 inch machines or Can-Am X3 72 axles for 72 inch machines. Smart-Lok owners need the X3 Smart-Lok axles option. Each Can-Am X3 axle is sold on its own, so you can order one or a full set of Can-Am Maverick X3 axles. If you are shopping X3 axles for heat, these are the Phoenix axles X3 riders run.

Key Features

• Proprietary high-temp grease blend, virtually waterproof
• Grease resists temperatures above 586.4°F (308°C)
• Reduced friction prevents heat buildup
• High pressure tolerance for extreme rides
• Heat-treated 4340 chromoly shafts, larger than stock
• Operates at high CV angles
• Field and lab tested; 3-year warranty

Built To Solve: Overheated CVs on a Can-Am Maverick X3

• CV joints failing when stock grease overheats
• Boot and CV failures after long, fast pulls
• Stock shafts bending on rocks and logs
• Replacing a broken axle with another stock part

Best For: 2017+ Can-Am Maverick X3 and X3 MAX Owners

• 64 inch Maverick X3 and X3 MAX owners
• 72 inch Maverick X3 and X3 MAX owners
• Smart-Lok and non Smart-Lok machines
• Dune and desert riders who run at speed

Specifications

• Brand: Assault Industries
• Product line: MAS-223 Phoenix Axle
• Shaft: heat-treated 4340 chromoly steel, larger than stock
• Grease: proprietary high-temp blend, tested to 586.4°F (308°C)
• Warranty: 3 years
• Length: stock
• Positions: front driver side, front passenger side, rear (non Smart-Lok); front, rear (Smart-Lok)
• Widths: 64 inch, 72 inch
• Sold: individually
• Manufacturer Part Number (FDS 64 in): AXRS07-002FL0
• Manufacturer Part Number (FPS 64 in): AXRS07-003FR0
• Manufacturer Part Number (rear 64 in): AXRS07-001R0
• Manufacturer Part Number (FDS 72 in): AXRS07-005FL0
• Manufacturer Part Number (FPS 72 in): AXRS07-006FR0
• Manufacturer Part Number (rear 72 in): AXRS07-004R0
• Manufacturer Part Number (front 64 in Smart-Lok): AXRS-7-72-F-0-BT-001
• Manufacturer Part Number (front 72 in Smart-Lok): AXRS-7-73-F-0-BT-001
• Manufacturer Part Number (rear 64 in Smart-Lok): AXRS07-001R0#AA
• Manufacturer Part Number (rear 72 in Smart-Lok): AXRS07-004R0#AA

Fitment

• 64 inch: Maverick X3 900 (2018); X3 Turbo (2017-2020); X3 Turbo R (2018-2020); X3 DS Turbo R (2021); X3 DS Turbo 64 and DS Turbo RR 64 (2022+); X3 X DS Turbo R (2017-2020); X3 X DS Turbo RR (2020-2021); X3 X DS Turbo RR 64 (2022+); X3 X MR Turbo and X RC Turbo (2018-2021); X3 X MR Turbo RR 64 and X RC Turbo RR 64 (2022+)
• 64 inch MAX: X3 MAX Turbo (2017-2020); MAX Turbo R (2018-2020); MAX DS Turbo R (2021); MAX DS Turbo 64 and MAX DS Turbo RR 64 (2022+); MAX X DS Turbo (2017-2019); MAX X DS Turbo R (2020); MAX X DS Turbo RR 64 (2022+)
• 72 inch: X3 RS Turbo R (2021); X3 RS Turbo RR 72 (2022+); X3 X MR Turbo R (2018-2019); X3 X MR Turbo RR (2020-2021); X3 X MR Turbo RR 72 (2022+); X3 X RC Turbo R (2018-2020); X3 X RC Turbo RR (2020-2021); X3 X RC Turbo RR 72 (2022+); X3 X RS Turbo R (2017-2020); X3 X RS Turbo RR (2020-2021); X3 X RS Turbo RR 72 and with Smart-Shox (2022+)
• 72 inch MAX: MAX RS Turbo R (2021); MAX RS Turbo RR 72 (2022+); MAX X DS Turbo RR (2020-2021); MAX X MR Turbo R (2019-2021); MAX X MR Turbo RR (2020-2021); MAX X MR Turbo RR 72 (2022+); MAX X RS Turbo (2017-2020); MAX X RS Turbo R (2018-2020); MAX X RS Turbo RR (2020-2021); MAX X RS Turbo RR 72 and with Smart-Shox (2022+)

Replaces OEM front 705401634, 705402098, 705402097, 705402048, 705402100, 705402099, 705401686, 705401687, 705401829, 705401830 and rear 705502154, 705502362. Measure or confirm your machine width; 64 inch and 72 inch axles are not interchangeable. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.

FAQ

How do I know if my X3 is 64 or 72 inch?

Find your exact model and year in the fitment list. SuperATV groups every listed X3 and X3 MAX model by machine width.

Do I need the Smart-Lok version?

Choose Smart-Lok if your X3 is a Smart-Lok model. SuperATV offers Smart-Lok front and rear axles in both widths.

Which OEM part numbers do they replace?

SuperATV lists front 705401634, 705402098, 705402097, 705402048, 705402100, 705402099, 705401686, 705401687, 705401829, 705401830 and rear 705502154, 705502362.

What makes the Phoenix grease different?

Assault Industries uses a proprietary high-temp grease blend that is virtually waterproof. In lab testing it showed no breakdown at 586.4°F (308°C), the limit of the test equipment, while OEM grease broke down at 365°F.

How do they compare to SuperATV Rhino 2.0 axles?

Both use heat-treated 4340 chromoly. The Phoenix Axle adds Assault's high-temp grease and a 3-year warranty, versus 18 months on Rhino 2.0; Rhino 2.0 costs less. See our Rhino 2.0 listing for the Maverick X3.

What warranty do they carry?

Assault Industries backs MAS-223 Phoenix Axles with a 3-year warranty.

Why Assault Industries

Assault Industries built the MAS-223 Phoenix Axle around its own high-temperature grease. In Assault's viscosity lab testing the grease showed no breakdown at 586.4°F, where the test equipment maxed out; OEM grease broke down at 365°F. Every MAS-223 Phoenix Axle is backed by a 3-year warranty.

Complete Your Maverick X3 Driveline

When one X3 axle fails, the others have usually seen the same heat and abuse, so decide which positions you need. Confirm your model, year and option against the fitment list.
