Assault Industries Can-Am Maverick R Phoenix Axles (2024+)
Shipping calculated at checkout
In stock

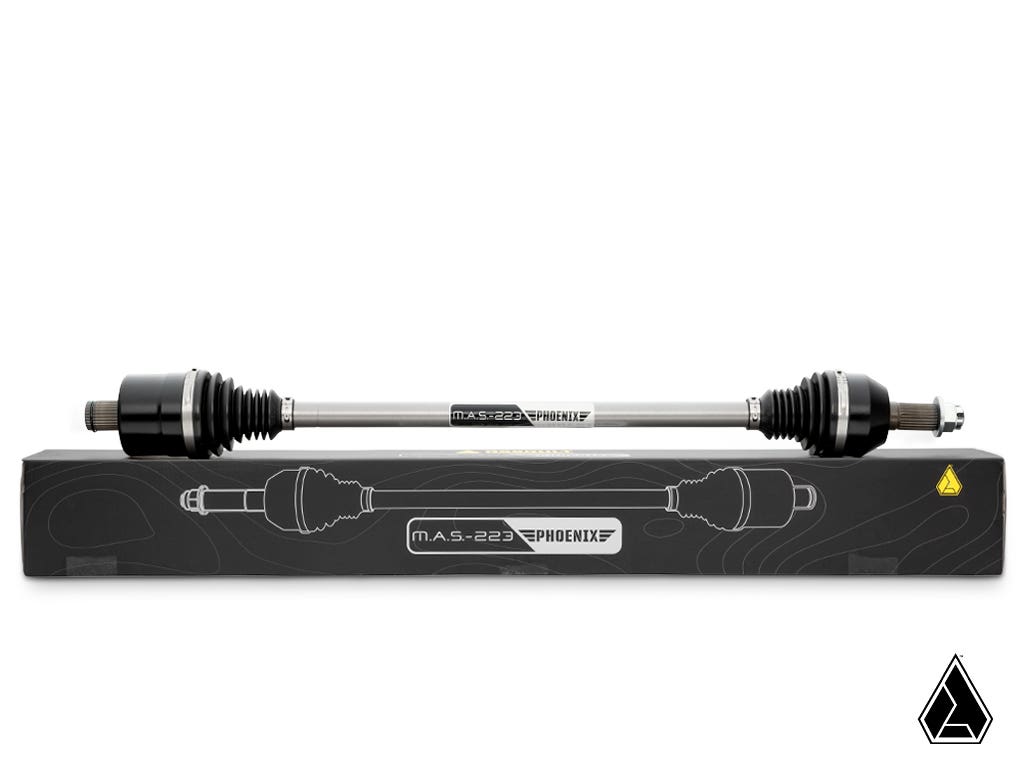

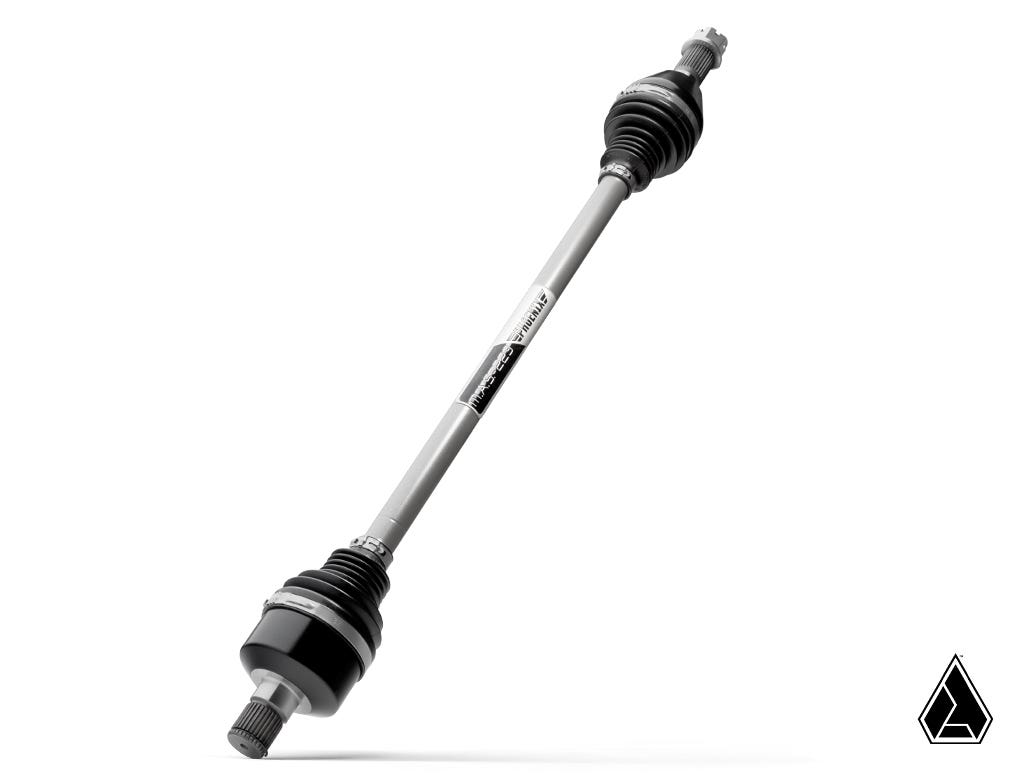

Assault Industries MAS-223 Phoenix Axles are replacement axles for the 2024+ Can-Am Maverick R, X, X RS and X RS with Smart-Shox, with a front axle for the 2025+ Maverick R MAX. They pair heat-treated 4340 chromoly shafts, larger than stock, with Assault's proprietary high-temp grease, which showed no breakdown at 586.4°F in lab testing.
Choose Front or Rear, then 2 Seat or 4 Seat (MAX). SuperATV offers a rear axle for two-seat machines only. Each axle is sold individually.
These Maverick R axles are built for the heat a Maverick R makes at speed. Pick the Maverick R front axle or Maverick R rear axle you need; each Can-Am Maverick R axle is sold on its own, and the front also covers Maverick R MAX axles on 2025+ four-seaters. Riders searching Can-Am Maverick R axles, a Maverick R CV axle or a Maverick R axle upgrade will find these Maverick R heavy duty axles add Assault's high-temp grease. If you need just one Maverick R axle, order that position only.
Key Features
- Proprietary high-temp grease blend, virtually waterproof
- Grease resists temperatures above 586.4°F (308°C)
- Reduced friction prevents heat buildup
- High pressure tolerance for extreme rides
- Heat-treated 4340 chromoly shafts, larger than stock
- Operates at high CV angles
- Field and lab tested; 3-year warranty
Built To Solve: Overheated CVs on a Can-Am Maverick R
- CV joints failing when stock grease overheats
- Boot and CV failures after long, fast pulls
- Stock shafts bending on rocks and logs
- Replacing a broken axle with another stock part
Best For: 2024+ Can-Am Maverick R and 2025+ Maverick R MAX Owners
- 2024+ Maverick R, X, X RS and X RS Smart-Shox owners
- 2025+ Maverick R MAX owners (front axle)
- Dune and desert riders who run at speed
- Owners upgrading from stock axles
Specifications
- Brand: Assault Industries
- Product line: MAS-223 Phoenix Axle
- Shaft: heat-treated 4340 chromoly steel, larger than stock
- Grease: proprietary high-temp blend, tested to 586.4°F (308°C)
- Warranty: 3 years
- Positions: front, rear
- Options: 2 Seat or 4 Seat (MAX) front; 2 Seat rear
- Sold: individually
- Replaces OEM: 705402490
- Manufacturer Part Number (front, 2 seat): AXRS-7-108-F-0-BT
- Manufacturer Part Number (front, 4 seat (MAX)): AXRS-7-108-F-0-BT#AA
- Manufacturer Part Number (rear, 2 seat): AXRS-7-108-R-0-BT
Fitment
- Can-Am Maverick R: 2024+
- Can-Am Maverick R X: 2024+
- Can-Am Maverick R X RS: 2024+
- Can-Am Maverick R X RS with Smart-Shox: 2024+
- Can-Am Maverick R MAX: 2025+
- Can-Am Maverick R MAX X: 2025+
- Can-Am Maverick R MAX X RS: 2025+
- Can-Am Maverick R MAX X RS with Smart-Shox: 2025+
Replaces OEM 705402490. SuperATV offers a front axle for the Maverick R MAX and a rear axle for two-seat models only. Fitment is not guaranteed on applications not listed above; confirm your year, model and cab before ordering.
FAQ
Is there a rear axle for the Maverick R MAX?
Not in this listing. SuperATV offers a 4 Seat (MAX) front axle and a 2 Seat rear axle.
Why does the rear axle cost more?
SuperATV prices the Maverick R rear Phoenix axle at $423.95 and the fronts at $317.95.
Which OEM part number do they replace?
SuperATV lists OEM 705402490.
What makes the Phoenix grease different?
Assault Industries uses a proprietary high-temp grease blend that is virtually waterproof. In lab testing it showed no breakdown at 586.4°F (308°C), the limit of the test equipment, while OEM grease broke down at 365°F.
How do they compare to SuperATV Rhino 2.0 axles?
Both use heat-treated 4340 chromoly. The Phoenix Axle adds Assault's high-temp grease and a 3-year warranty, versus 18 months on Rhino 2.0; Rhino 2.0 costs less. See our Rhino 2.0 listing for the Maverick R.
What warranty do they carry?
Assault Industries backs MAS-223 Phoenix Axles with a 3-year warranty.
Why Assault Industries
Assault Industries built the MAS-223 Phoenix Axle around its own high-temperature grease. In Assault's viscosity lab testing the grease showed no breakdown at 586.4°F, where the test equipment maxed out; OEM grease broke down at 365°F. Every MAS-223 Phoenix Axle is backed by a 3-year warranty.
Complete Your Maverick R Driveline
When one Maverick R axle fails, the others have usually seen the same heat and abuse, so decide which positions you need. Confirm your model, year and option against the fitment list.
