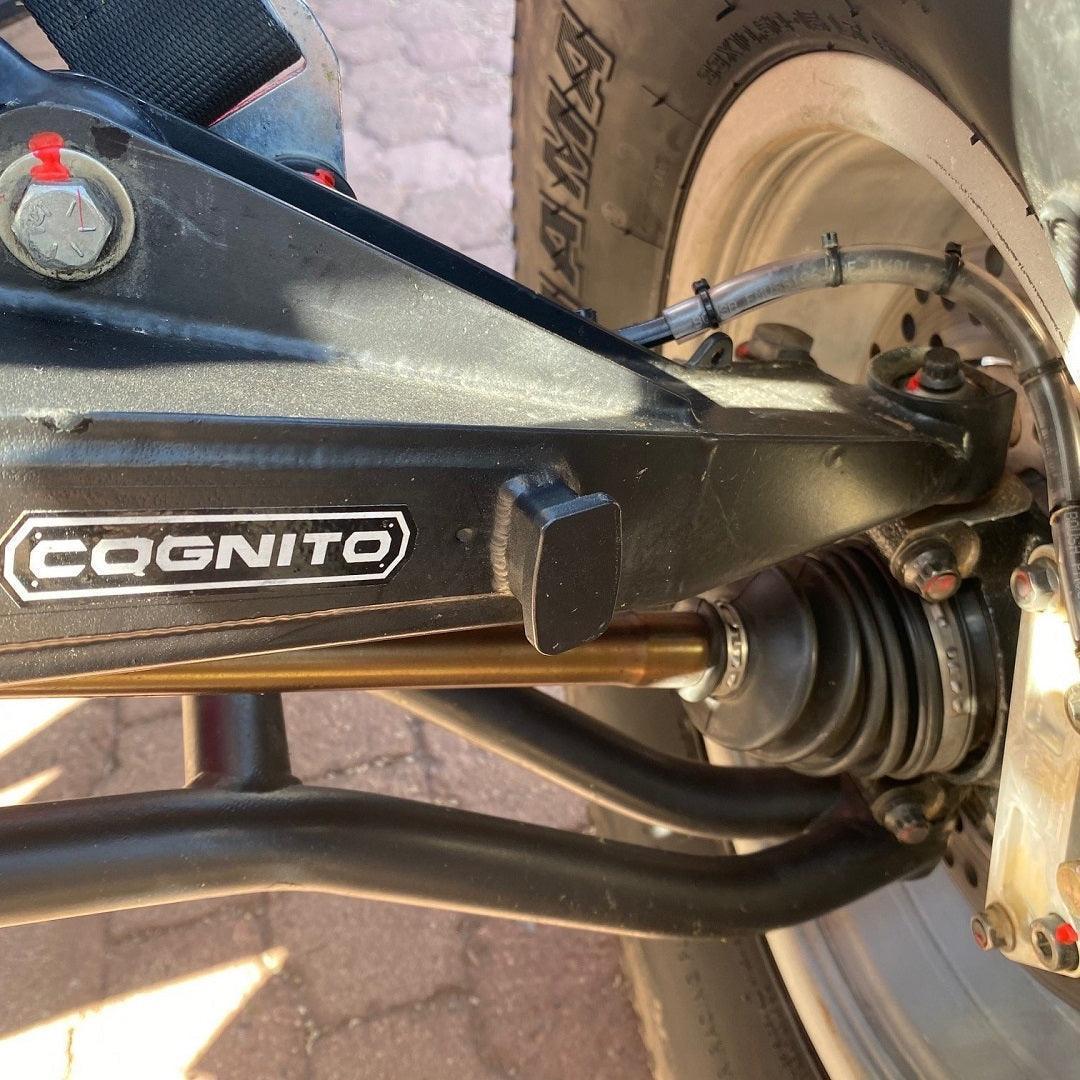

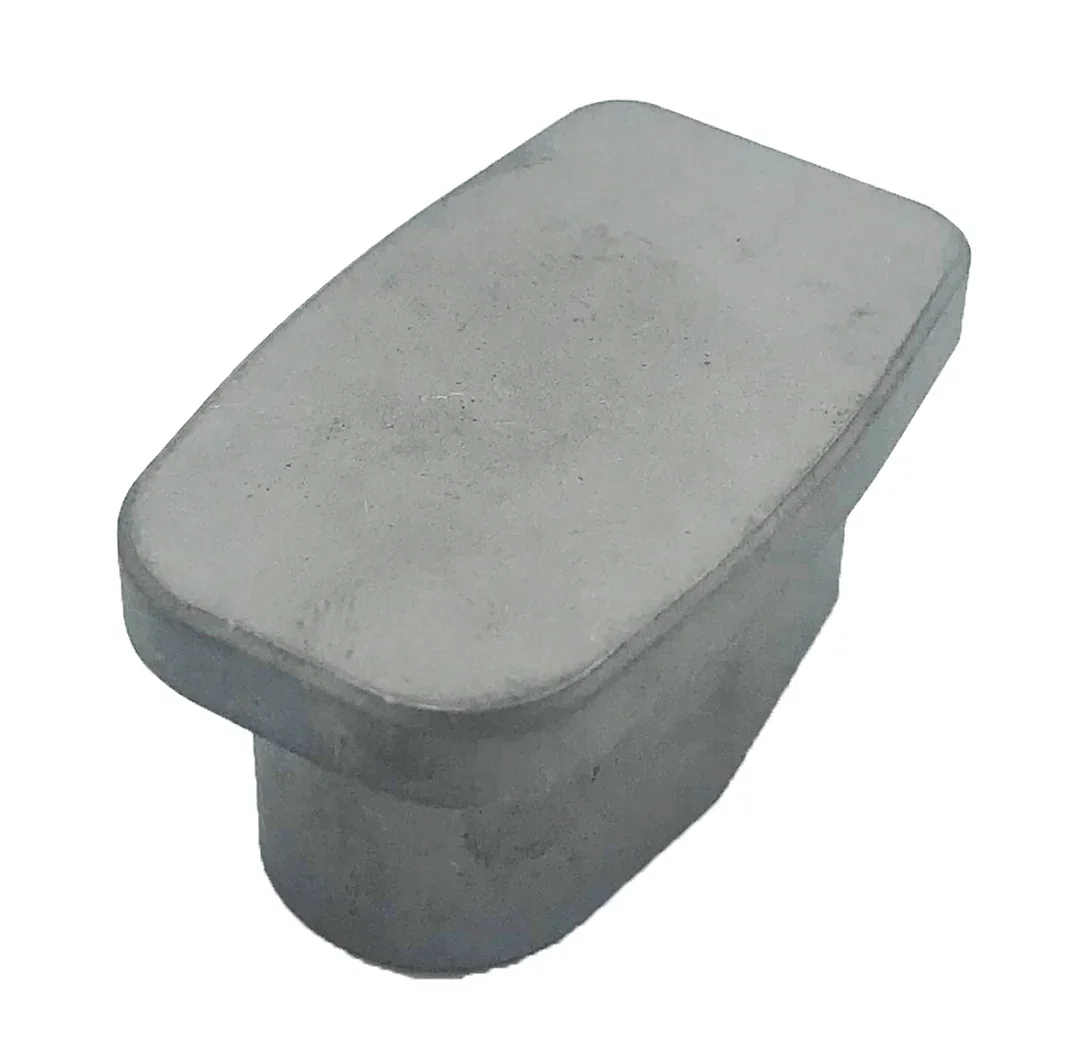

AGM Weld-On Jack Points give your AGM jack a dedicated place to lock in, so it engages your chassis the same way every time instead of balancing on a flat surface. The diamond face tolerates up to 12 degrees of misalignment, and the back can be shaped to fit your tube or suspension component.
Key Features
- Creates a mechanical connection with compatible AGM jacks
- Allows up to 12 degrees of misalignment
- Makes jack placement faster and more repeatable
- Welds to a suitable chassis or suspension component
- Back side can be shaped to match the mounting surface

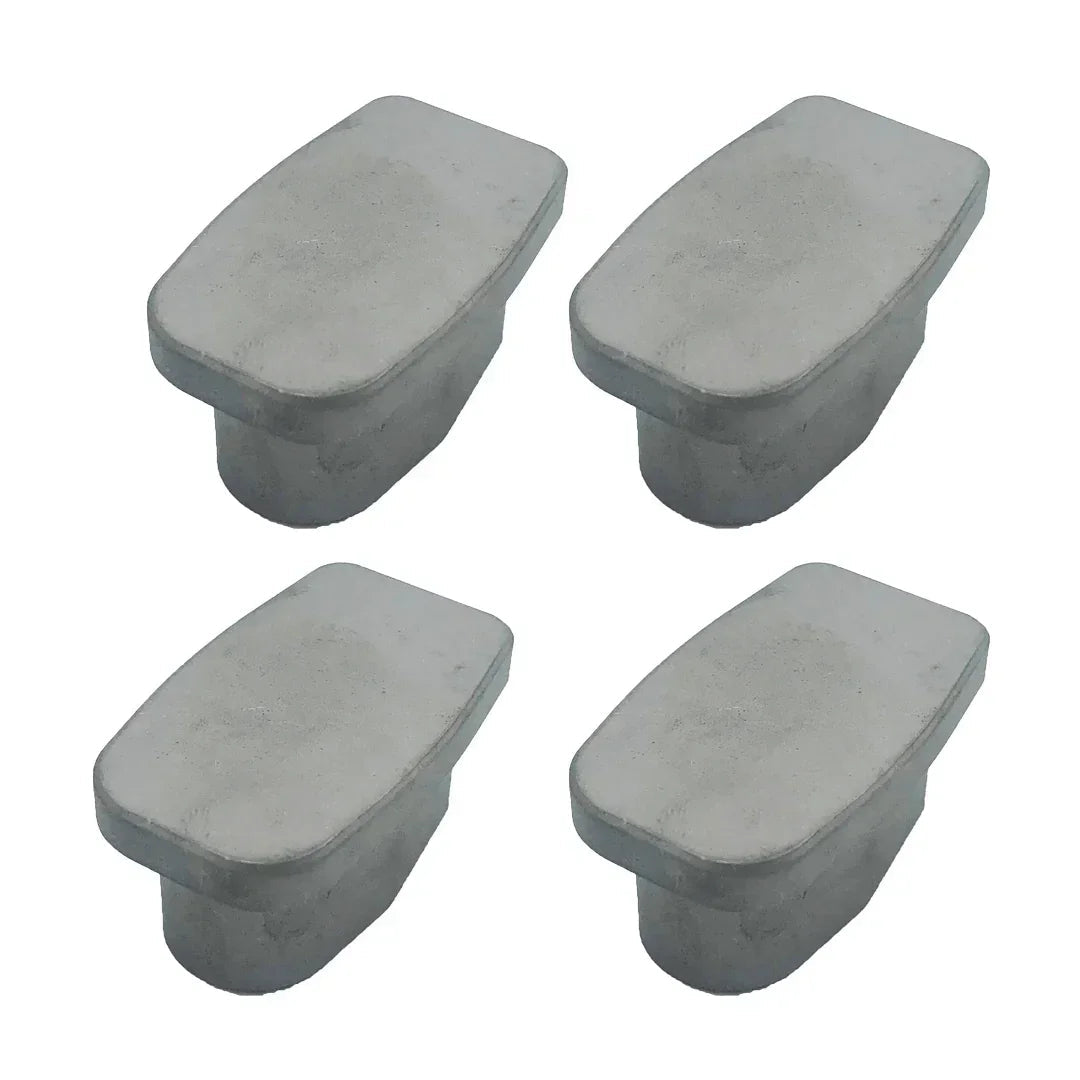

- Sold individually or in a 4-pack
Built To Solve: Jacks Slipping Off UTV and Race Car Lift Points
- Jacks that slide on round tubes or angled surfaces
- Hunting for safe jacking points in the dark or mid-race
- Inconsistent jack placement between tire changes
- Unsafe engagement when the jack cannot approach straight
Best For: Race, Trail and Custom Chassis Builders
- Drivers who want the most secure permanent lift point
- Dedicated off-road, race and trail vehicles
- Custom chassis or suspension needing a contoured fit
- Owners of AGM PRO and Sport Series jacks
Specifications
- Type: weld-on jack point
- Misalignment tolerance: up to 12 degrees
- Pack options: 1 pack or 4 pack
- Installation: weld to a structurally suitable chassis or suspension component
- Manufacturer Part Numbers: AGM-EJA-2021 (1 pack), AGM-EJA-2031 (4 pack)
Fitment
Universal weld-on fitment for compatible AGM jacks. Installation should be completed by an experienced welder or fabricator at a structurally suitable lift point. Fitment is not guaranteed on unlisted applications.
FAQ
Which jacks work with AGM Weld-On Jack Points?
They create a mechanical connection with compatible AGM jacks, including the PRO and Sport Series.
How much misalignment do they allow?

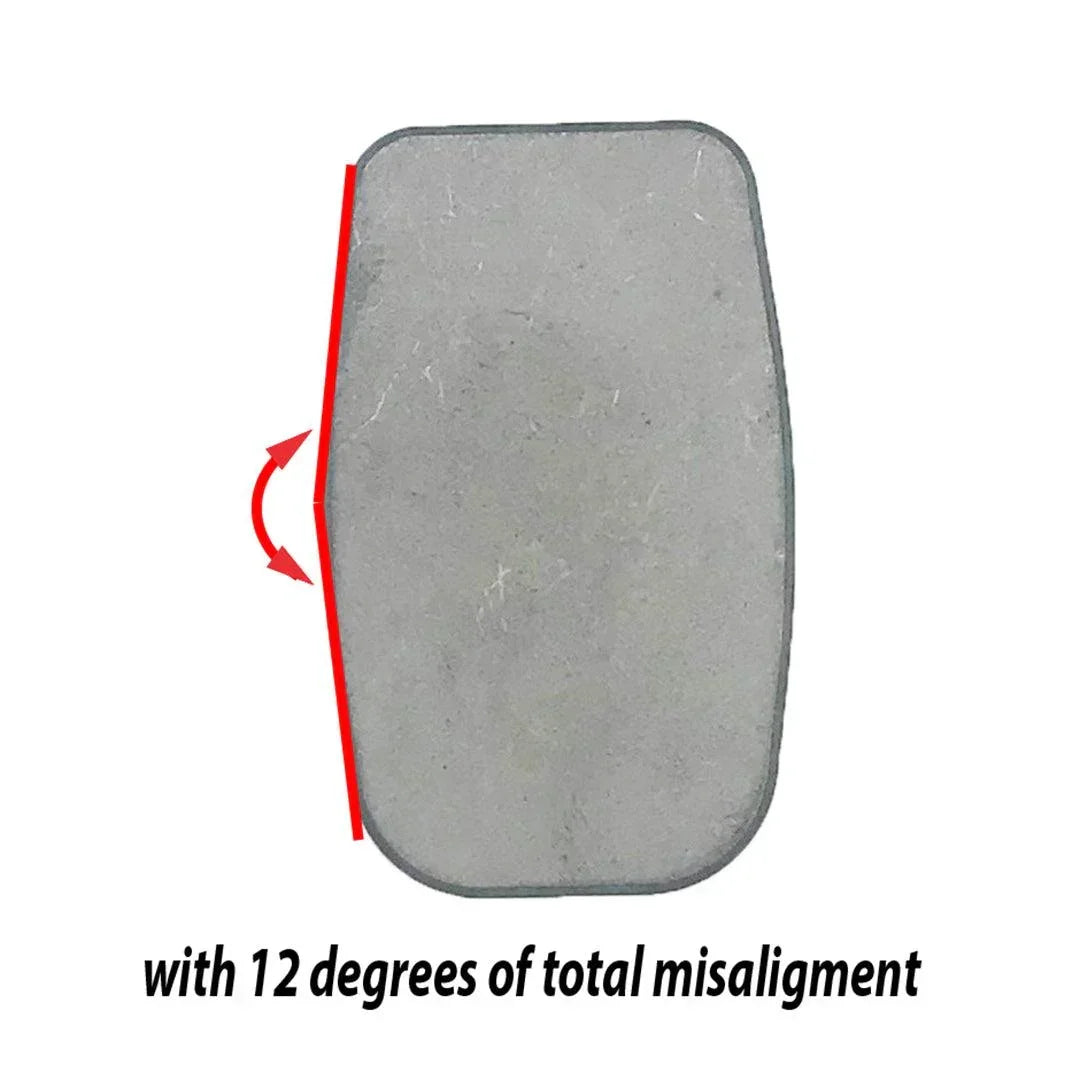

The diamond-shaped face allows up to 12 degrees of misalignment.
Can I shape the Jack Point to fit my tube?
Yes. Extra material on the back can be shaped. Insert the Jack Point in the jack first, mark the face, and leave 1/8 to 1/4 in. for the weld bead.
How should the Jack Point be oriented?
Weld it so the front face is vertical and the sides are perpendicular to the ground at vehicle ride height.
Do I need a welder to install them?
Yes. AGM recommends an experienced welder or fabricator. If you cannot weld, the Bolt-On Jack Points install with rivnuts instead.
Weld-On or Bolt-On Jack Points?
Weld-On points are the most secure permanent option and can be contoured. Bolt-On points avoid welding but require drilling and rivnuts on flat plate.
Why AGM
AGM builds its trail jacks around three in-house systems: the GroundLoc concave base for loose terrain, the VersaLift modular lifting head and collar, and ToughThred ACME screw drives that lift mechanically with no hydraulics to leak. Every AGM jack, hook, Jack Point and mount is designed to work as one system, so accessories you add later fit the jack you already own.
Finish Your AGM Jack Point Setup
Order a 4-pack to cover all four corners, and confirm each location is structurally suitable before welding. Pair the Jack Points with a Manual Jack PRO, Electric Jack PRO or Manual Jack Sport.
