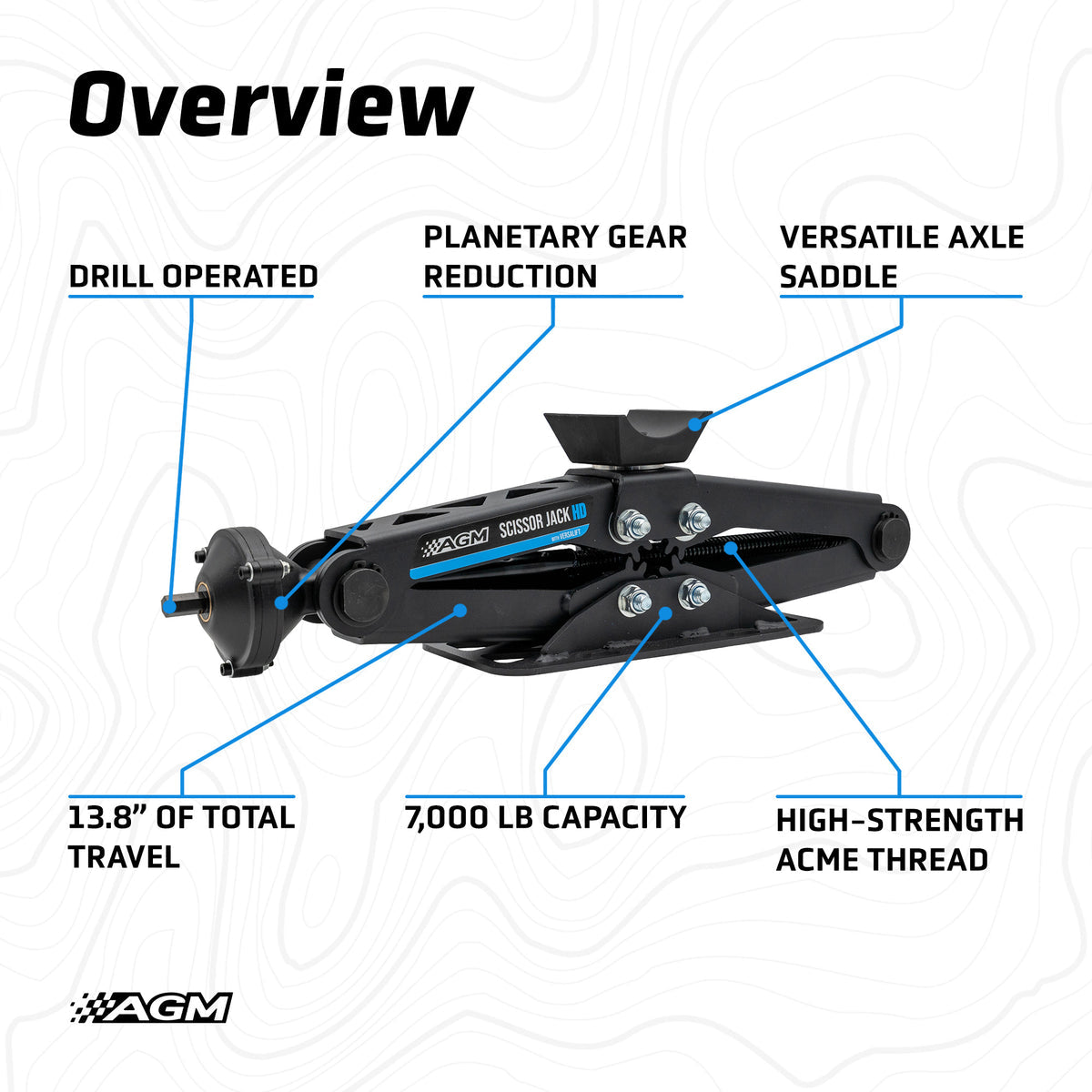

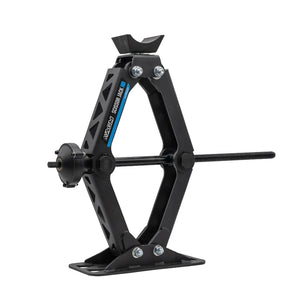

The AGM Scissor Jack HD lifts full-size trucks, SUVs, overland rigs and trailers with a 7,000 lb. rating, yet collapses to 6.7 inches for storage. Its EZ-Torque reduction gearbox runs from a standard 18V drill, and the included hand crank and two lifting heads cover the rest.
Key Features
- 7,000 lb. (3.5-ton) rated capacity
- 13.8 in. of travel to a 20.5 in. maximum height
- Collapses to 6.7 in.
- EZ-Torque reduction gearbox runs from a standard 18V drill
- Flat Puck Head and Axle Saddle Head included

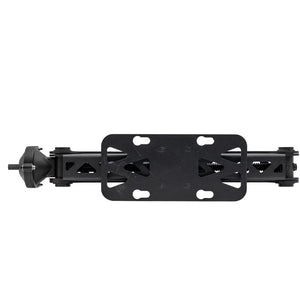

- 12 x 6 in. rectangular steel base
- Ships with a long-reach hand crank and an AGM GO-Bag
Built To Solve: Weak Factory Jacks on Trucks, SUVs and Overland Rigs
- Emergency jacks that struggle with heavy vehicles
- Floor jacks too big to carry
- Hydraulic jacks that leak
- Hard lift points that need an axle saddle

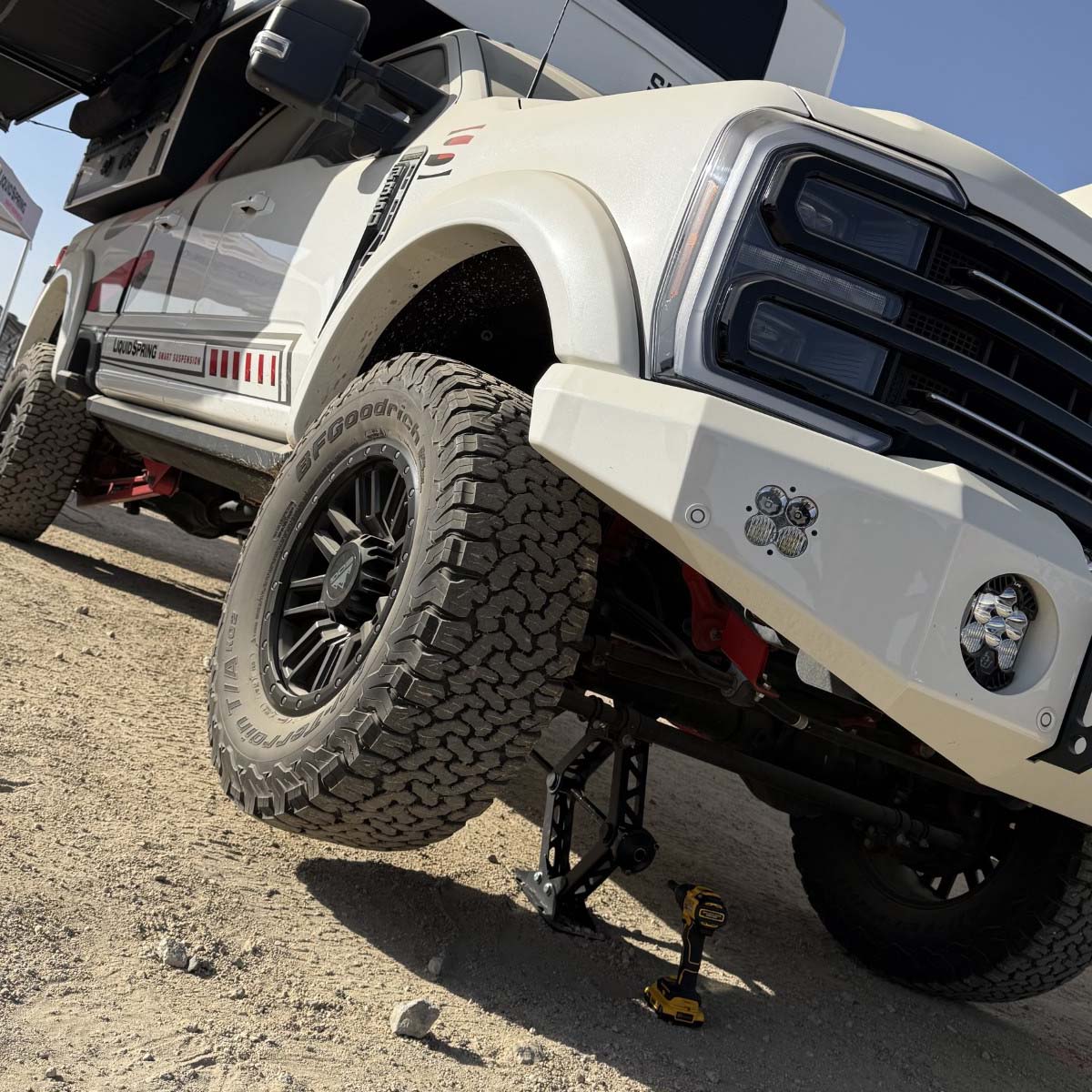

Best For: Truck, SUV, Overland and Camper Van Owners
- Full-size trucks and SUVs

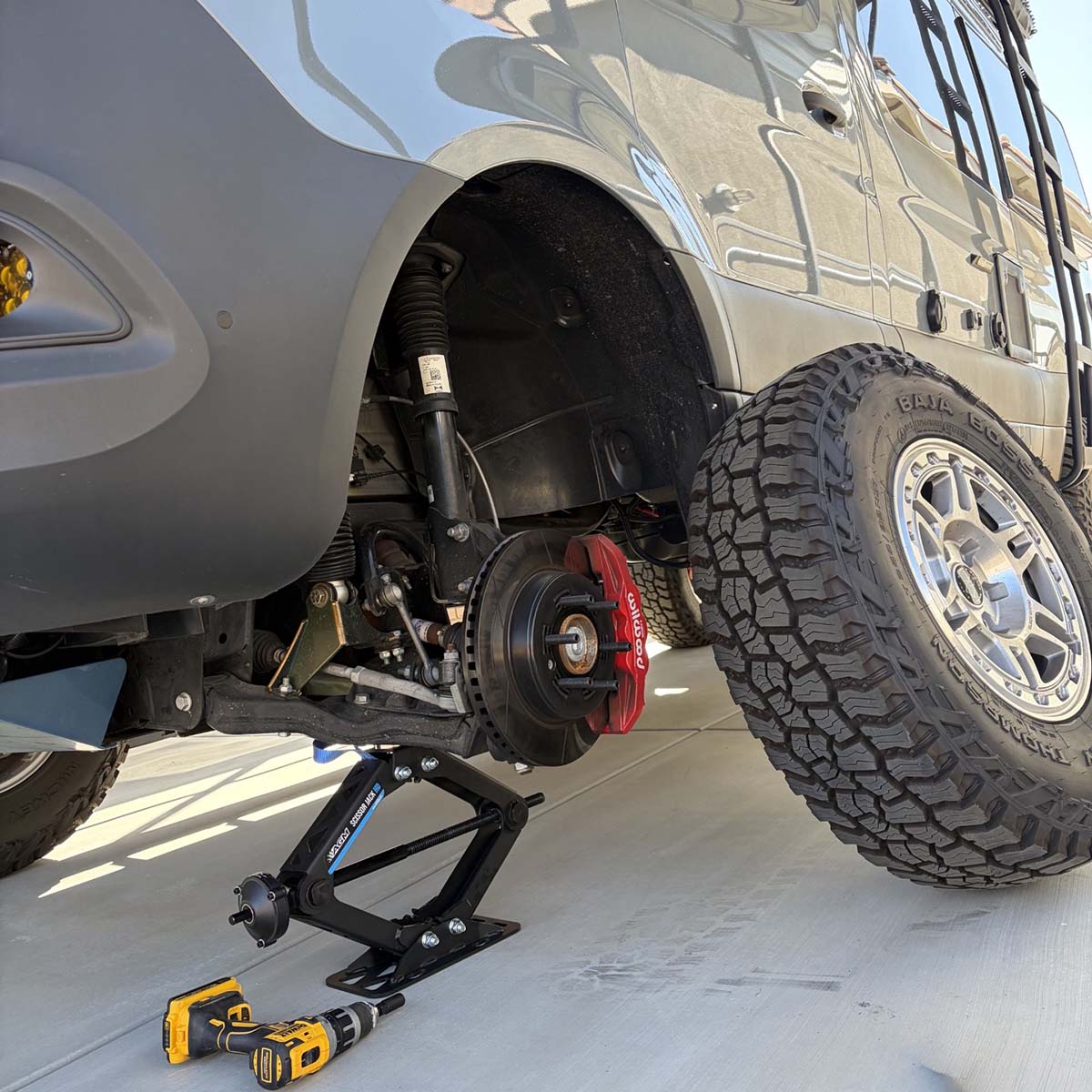

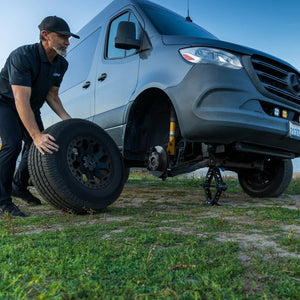

- Overland rigs and camper vans
- Trailers
- Roadside, trail-side, garage and travel repairs
- Larger vehicles within the 7,000 lb. rating

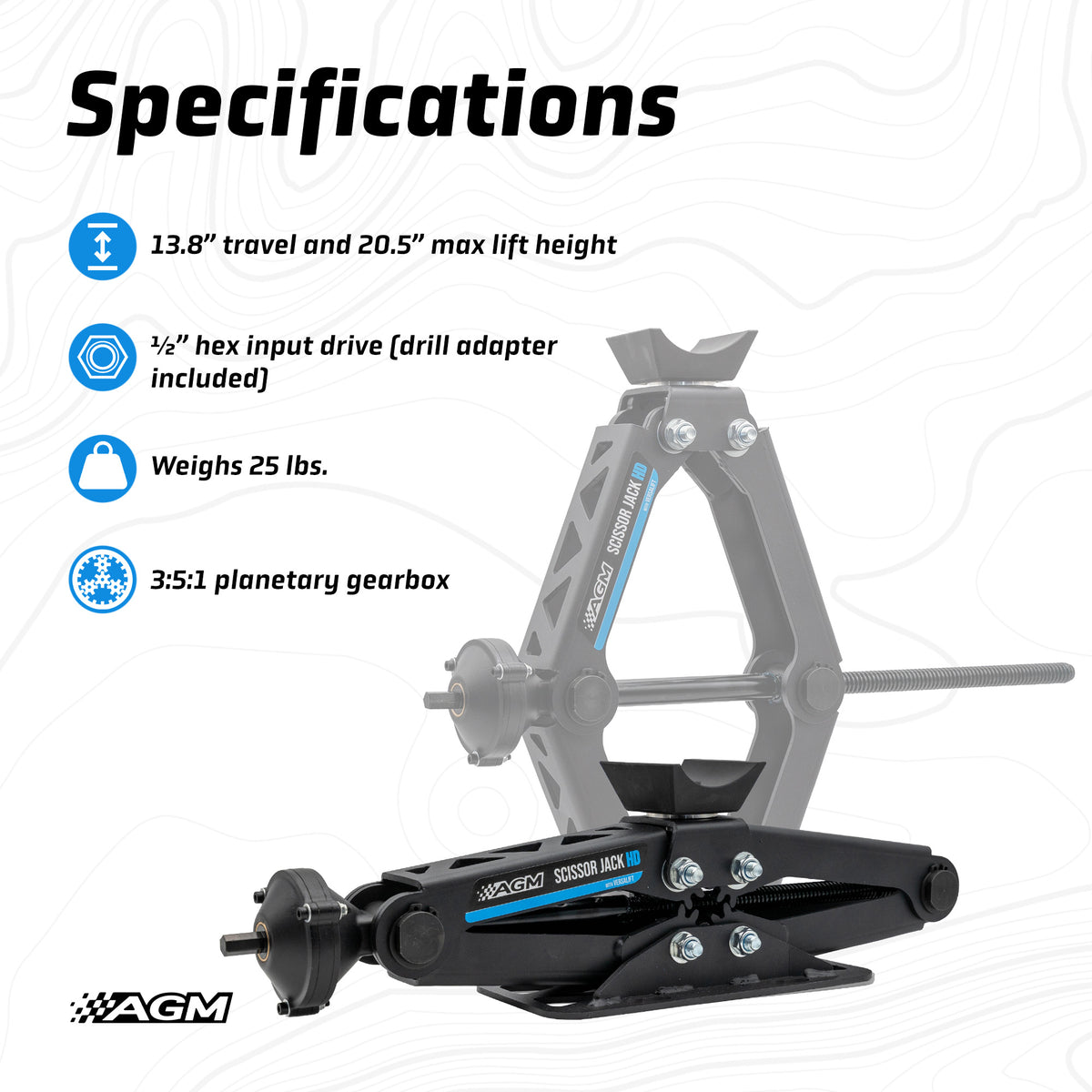

Specifications
- Capacity: 7,000 lb. (3.5-ton)
- Travel: 13.8 in.
- Maximum height: 20.5 in.

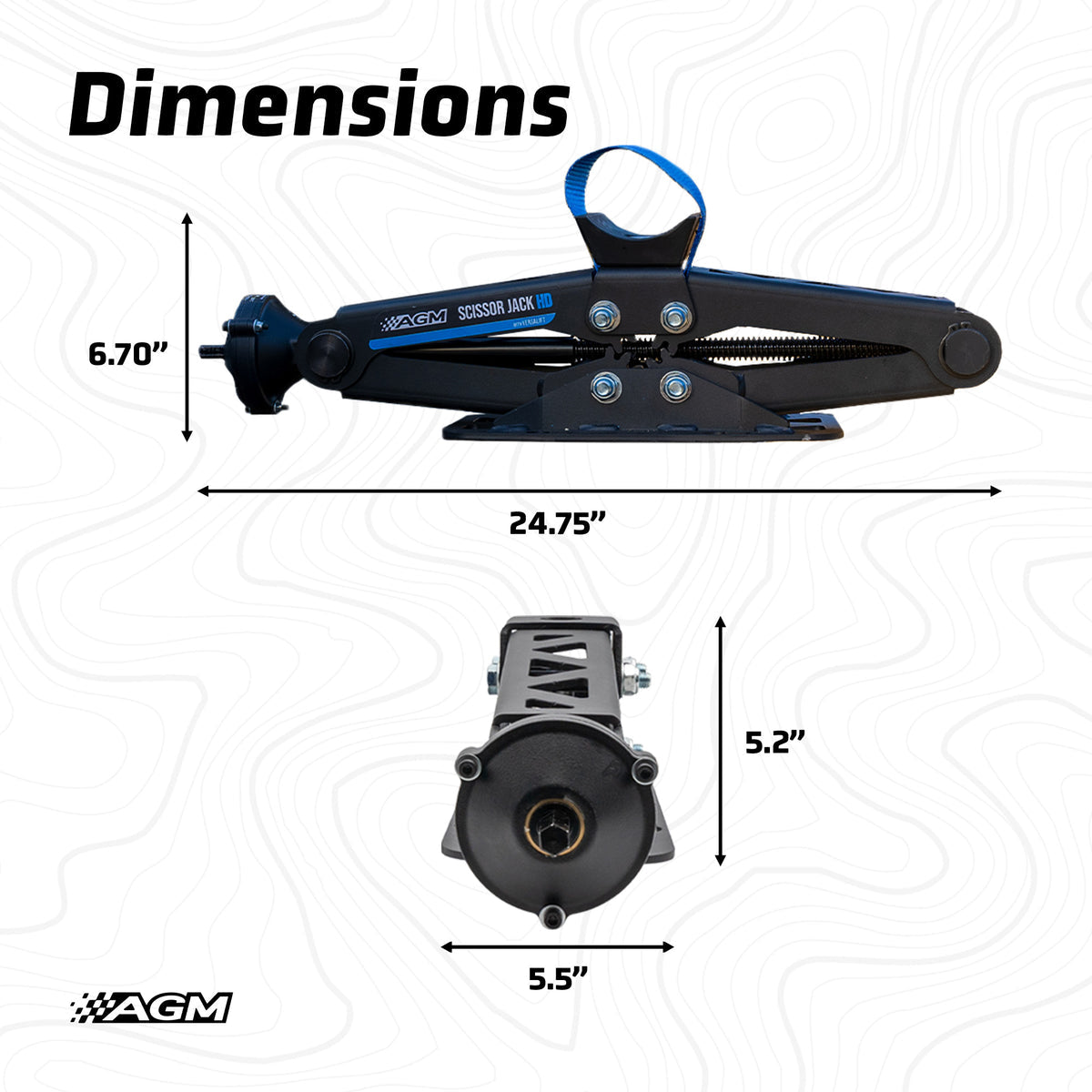

- Collapsed height: 6.7 in.

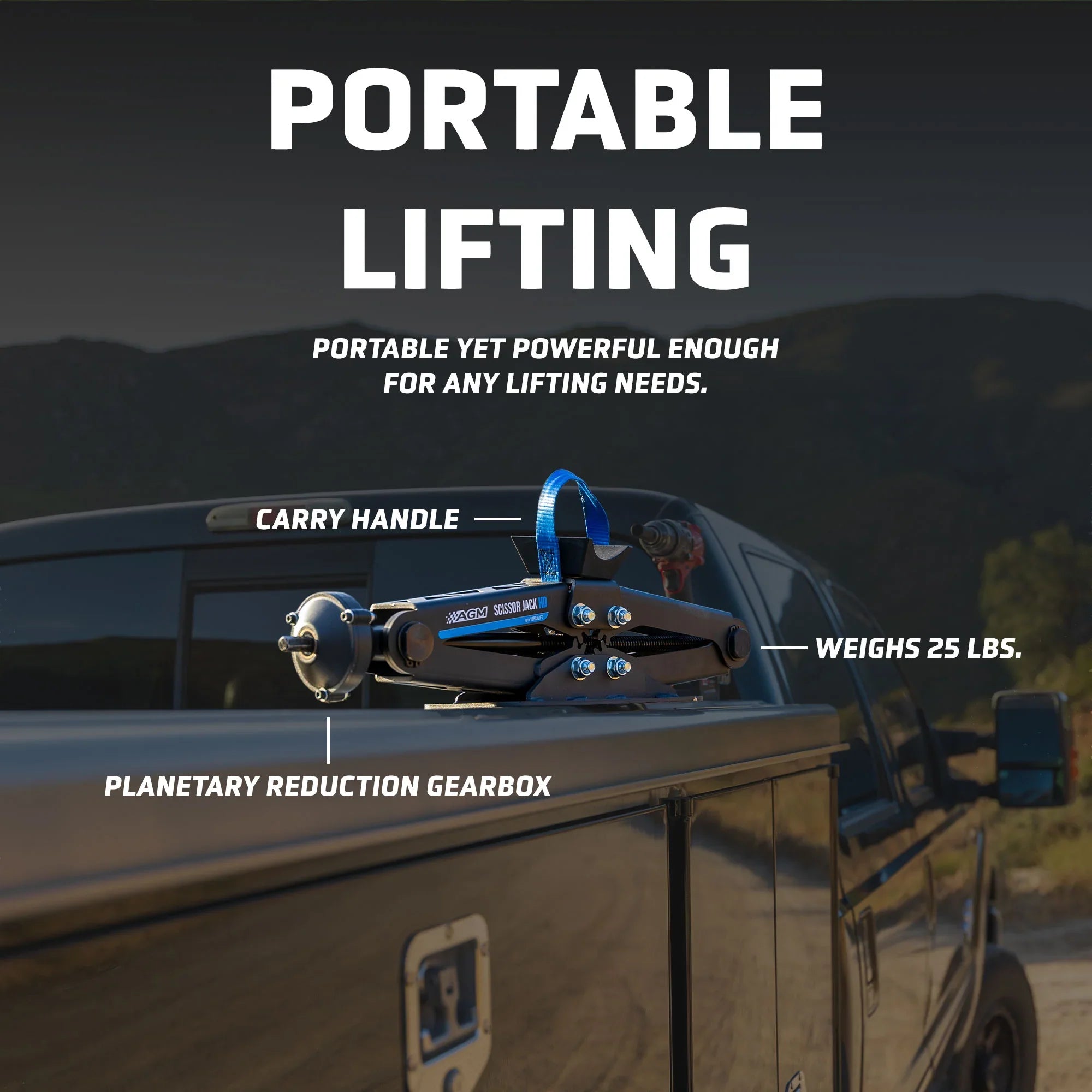

- Weight: 23.5 lb.
- Lift speed: 0.8 in./sec. unloaded, 0.44 in./sec. loaded

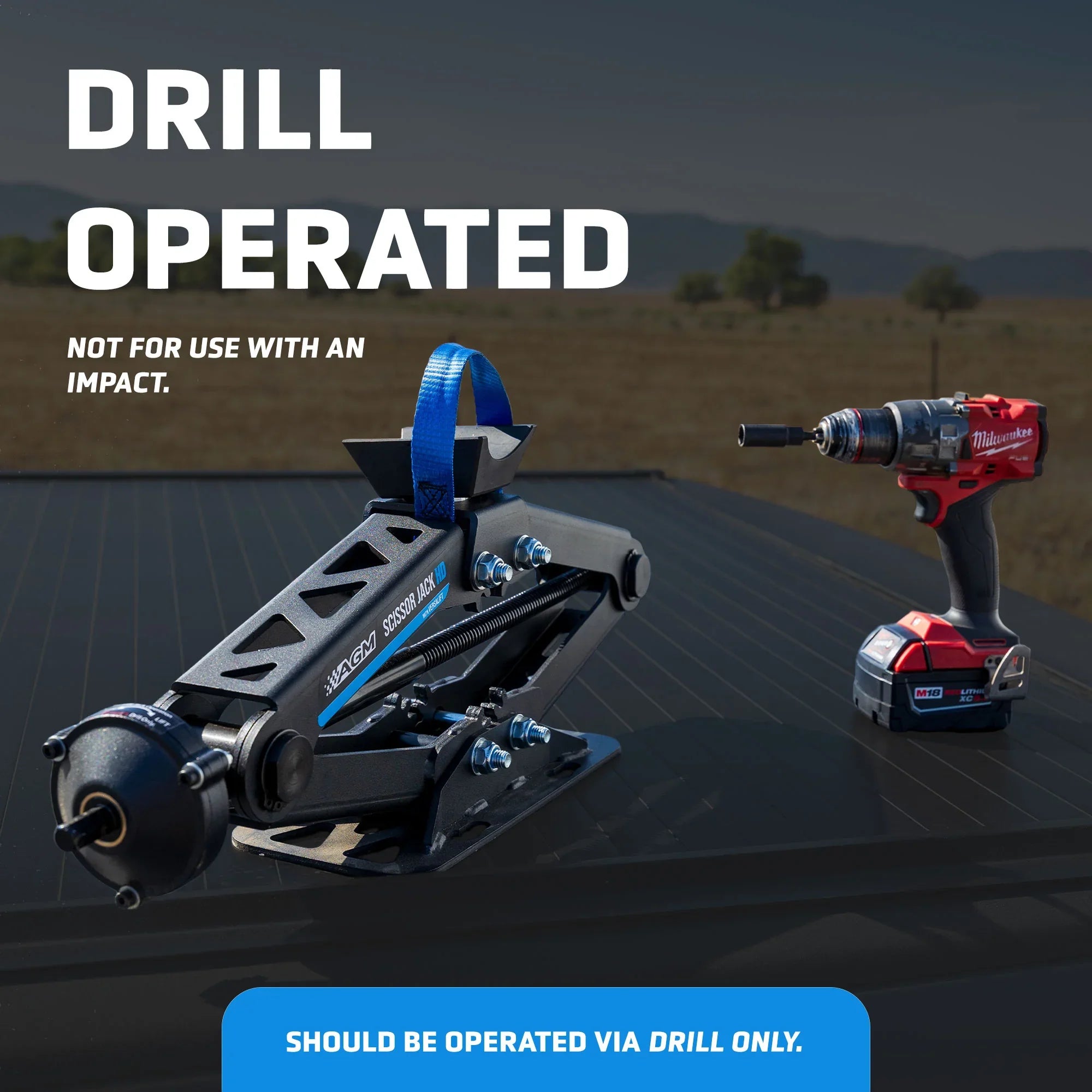

- Operation: compatible 18V drill or long-reach hand crank; do not use an impact gun
- Input drive: 1/2 in. hex; recommended drill torque 1,400 in.-lb.

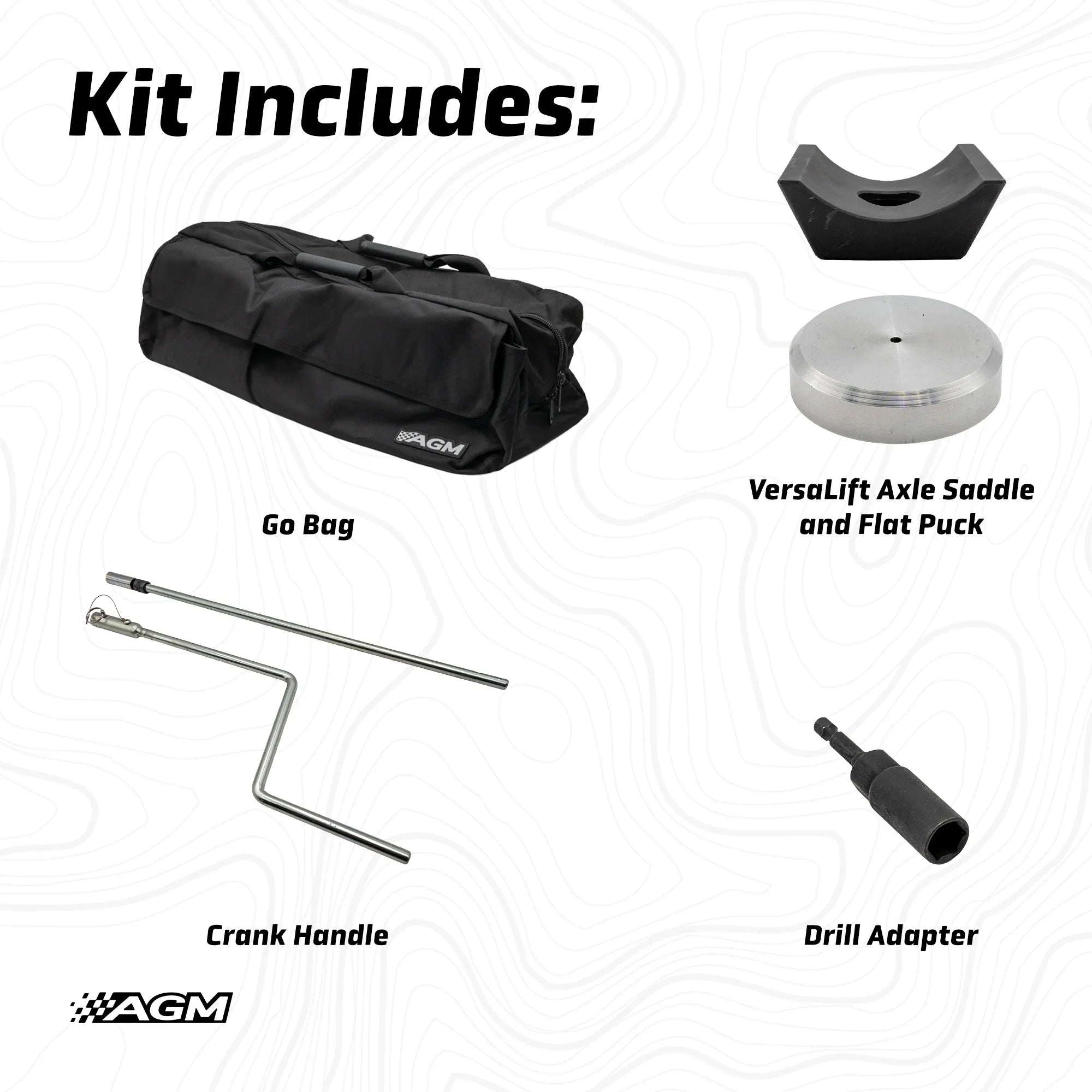

- Includes: Scissor Jack HD, EZ-Torque gearbox, Flat Puck Head, Axle Saddle Head, drill hex adapter, hand crank, AGM GO-Bag
- Manufacturer Part Number: AGM-EJA-2002
Fitment
Universal fit for full-size trucks, SUVs, overland rigs, camper vans, trailers and other larger vehicles within the 7,000 lb. rating. For UTVs and SxSs, the lighter AGM Scissor Jack is the better fit. Fitment is not guaranteed on unlisted applications.
FAQ
How much can the AGM Scissor Jack HD lift?
It is rated for 7,000 lb. (3.5 tons) with 13.8 inches of travel and a 20.5-inch maximum height.
Can I use an impact gun on the Scissor Jack HD?
No. AGM specifies a compatible 18V drill or the included hand crank. Do not use an impact gun or impact wrench.
What lifting heads are included?
A Flat Puck Head for flat lift points and an Axle Saddle Head for axle-style lift points.
Does it come with a bag?
Yes. The Scissor Jack HD ships with an AGM GO-Bag.
How small does it collapse?
It collapses to 6.7 inches for storage.
Scissor Jack HD or the standard Scissor Jack?
Choose the HD for trucks, SUVs and overland rigs. The 2,000 lb. Scissor Jack is built for UTVs and SxSs.
Why AGM
AGM builds its trail jacks around three in-house systems: the GroundLoc concave base for loose terrain, the VersaLift modular lifting head and collar, and ToughThred ACME screw drives that lift mechanically with no hydraulics to leak. Every AGM jack, hook, Jack Point and mount is designed to work as one system, so accessories you add later fit the jack you already own.
Choose the Right AGM Scissor Jack for Your Vehicle
The Scissor Jack HD is the pick for trucks, tow rigs and overland builds; UTV owners should look at the standard Scissor Jack. Make sure your 18V drill meets the 1,400 in.-lb. torque recommendation, and pack a tire repair kit alongside it.
