Adjustable Antenna Bar Mount for UTV Roll Cage | Rugged Radios
Shipping calculated at checkout
In stock

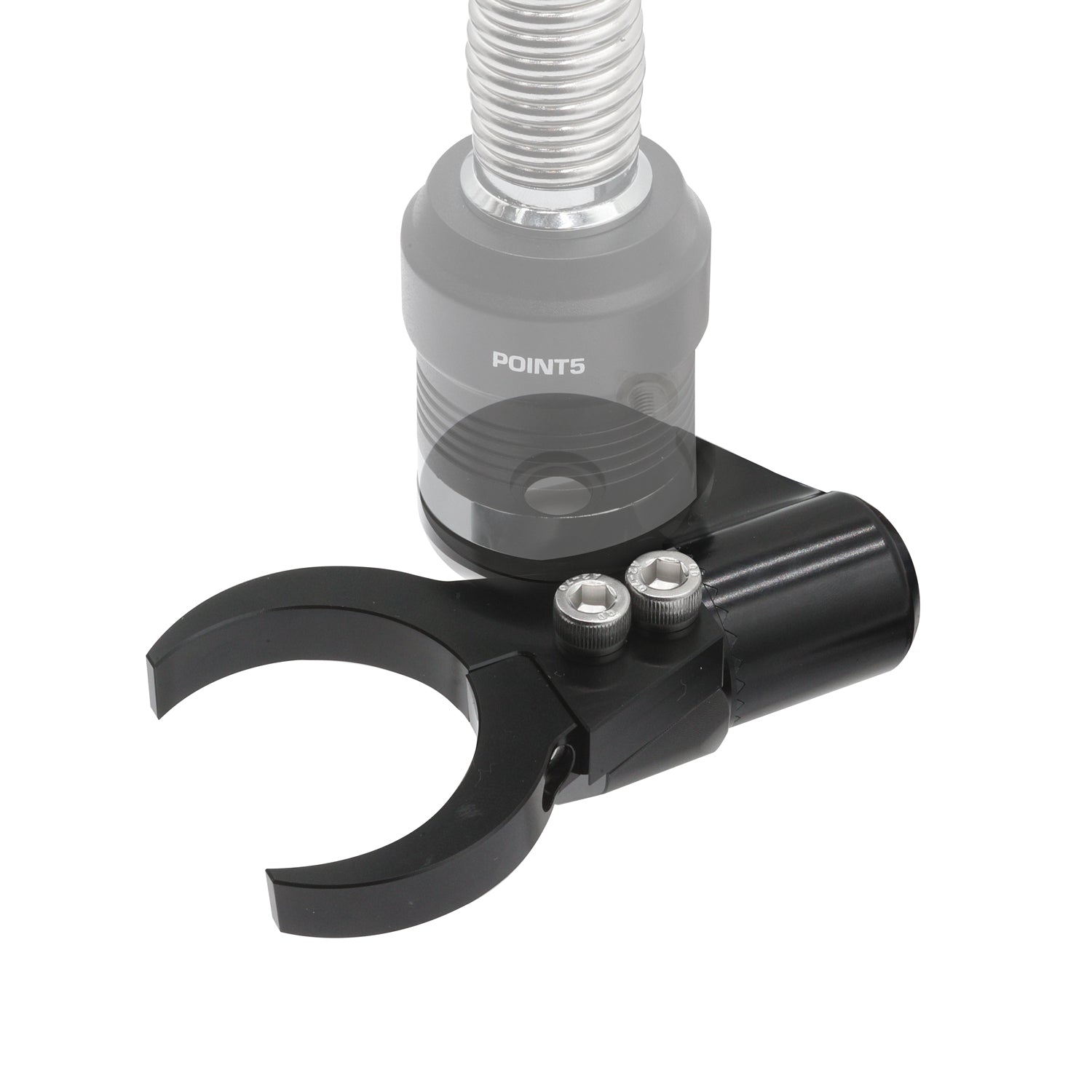

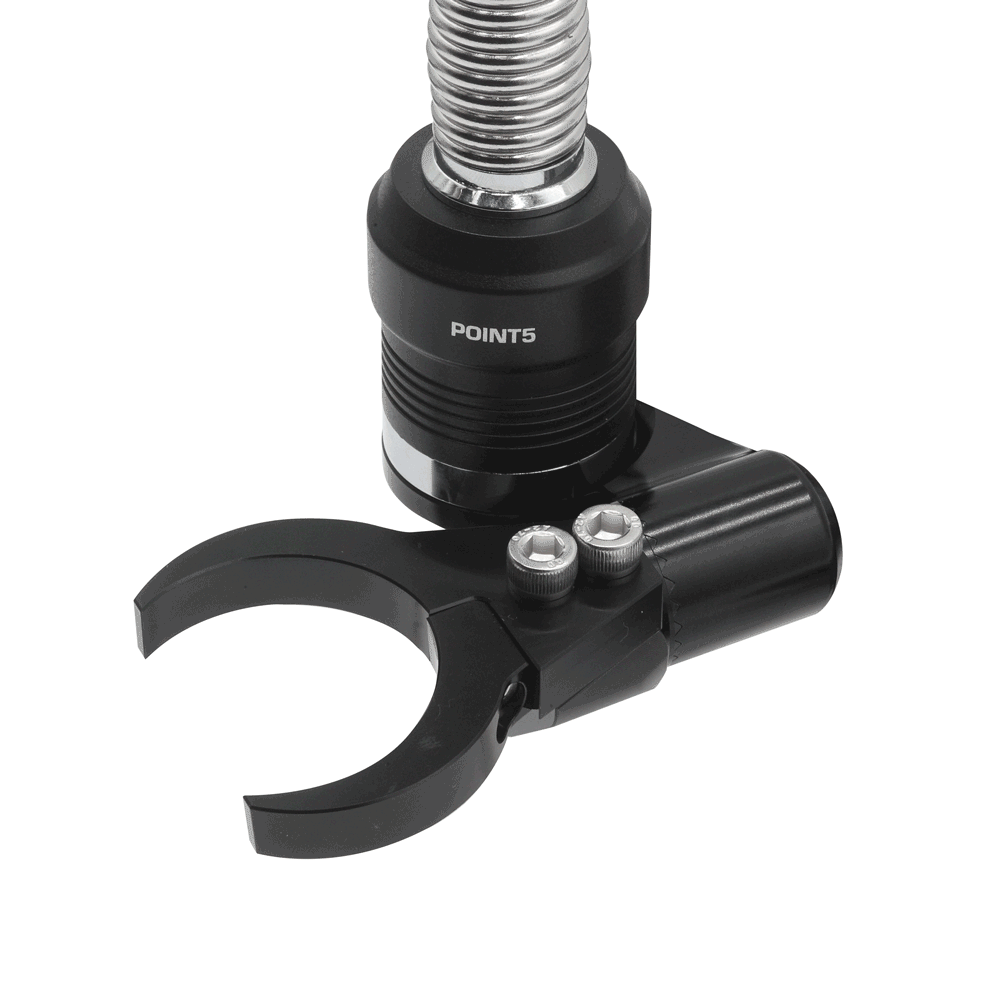

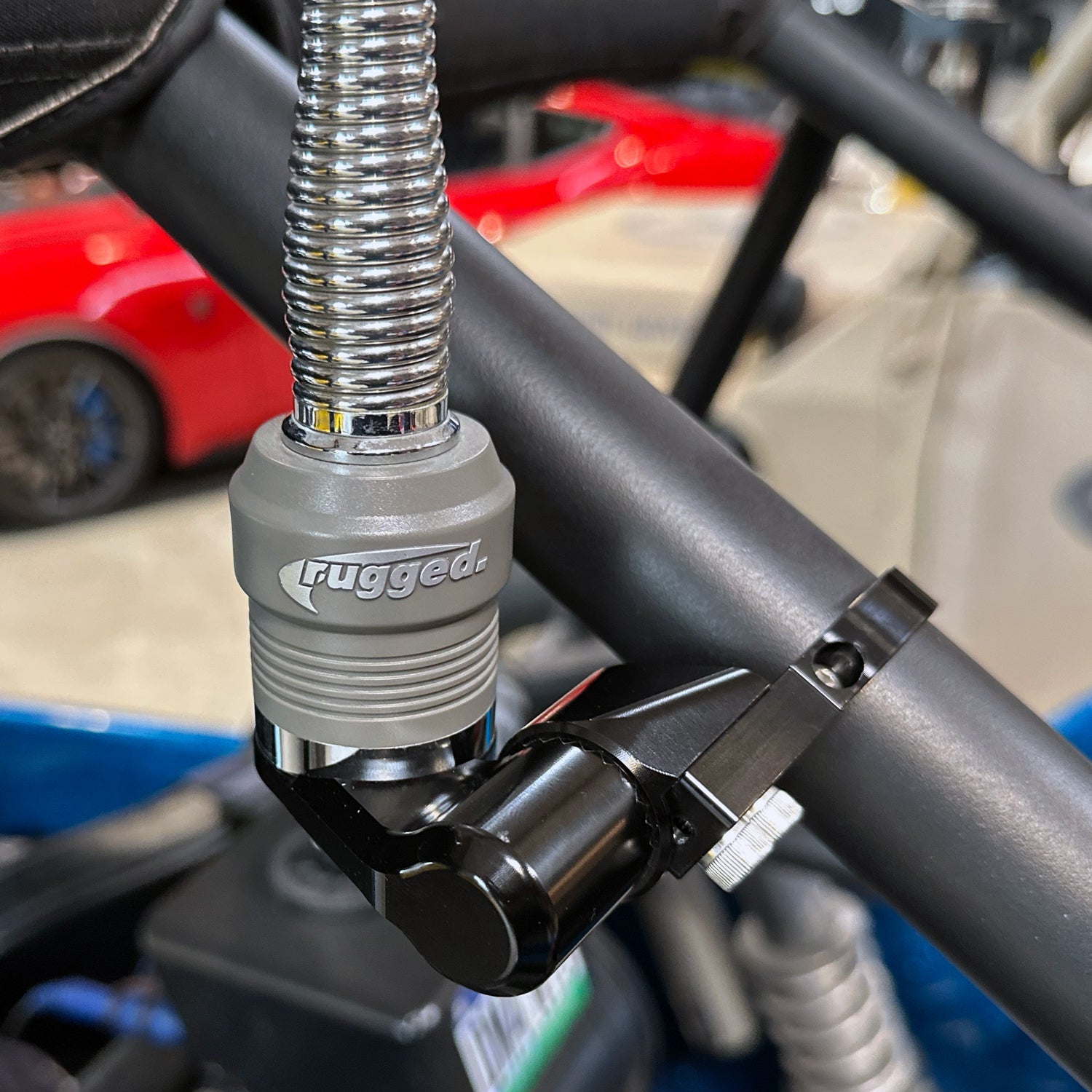

Mount your UTV antenna to almost any roll cage with the Rugged Radios Adjustable Antenna Bar Mount — no drilling and no welding required. This billet aluminum antenna bar mount clamps onto tubular frames from 1 inch to 2.5 inches, then locks your NMO antenna at the exact angle you want across more than 30 indexed positions, so your signal stays clear whether you run it horizontal or vertical.
Built for side-by-side riders adding a two-way radio, this adjustable antenna mount relocates in seconds with basic hand tools, making it easy to fine-tune placement or move the antenna between vehicles without touching your cage.
Key Features

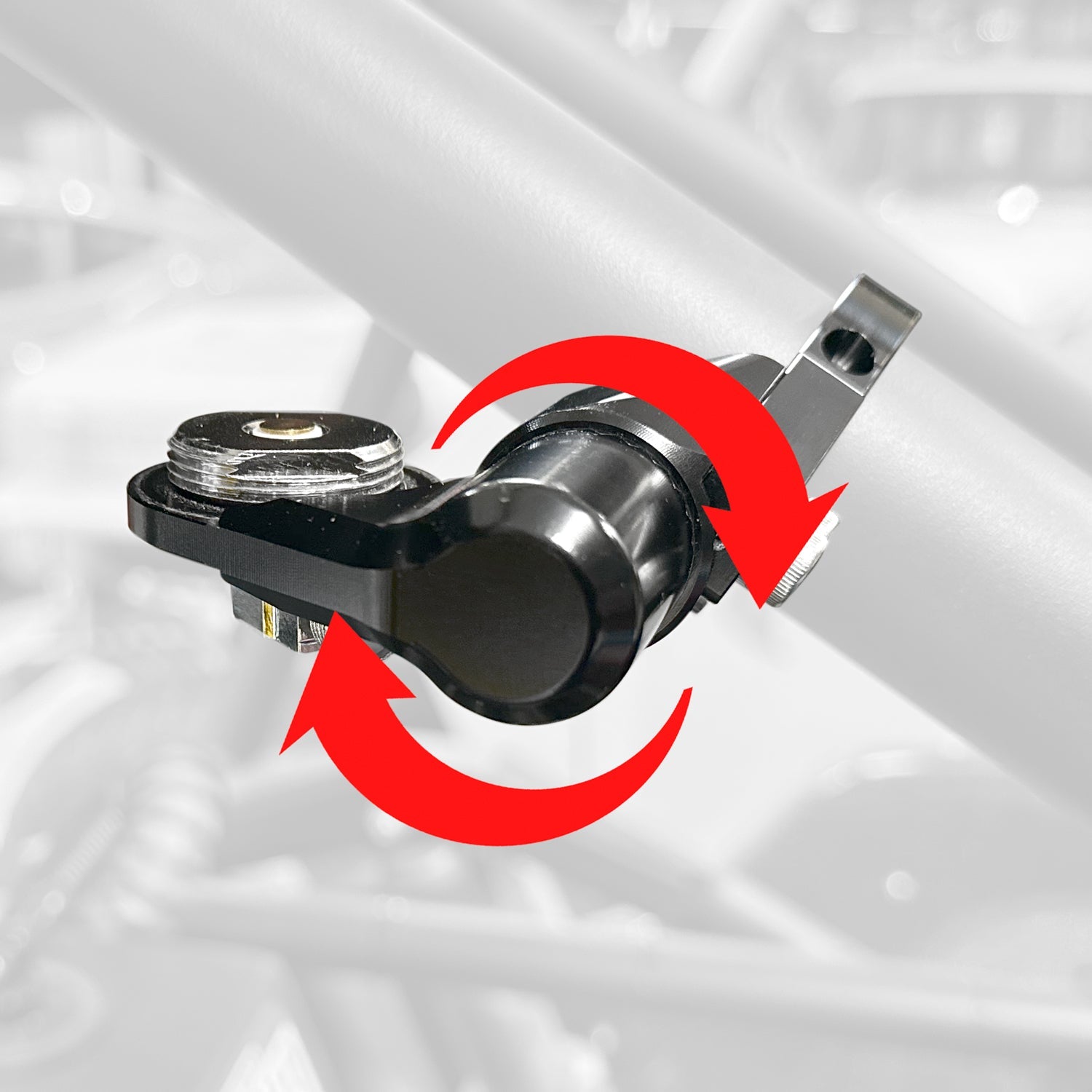

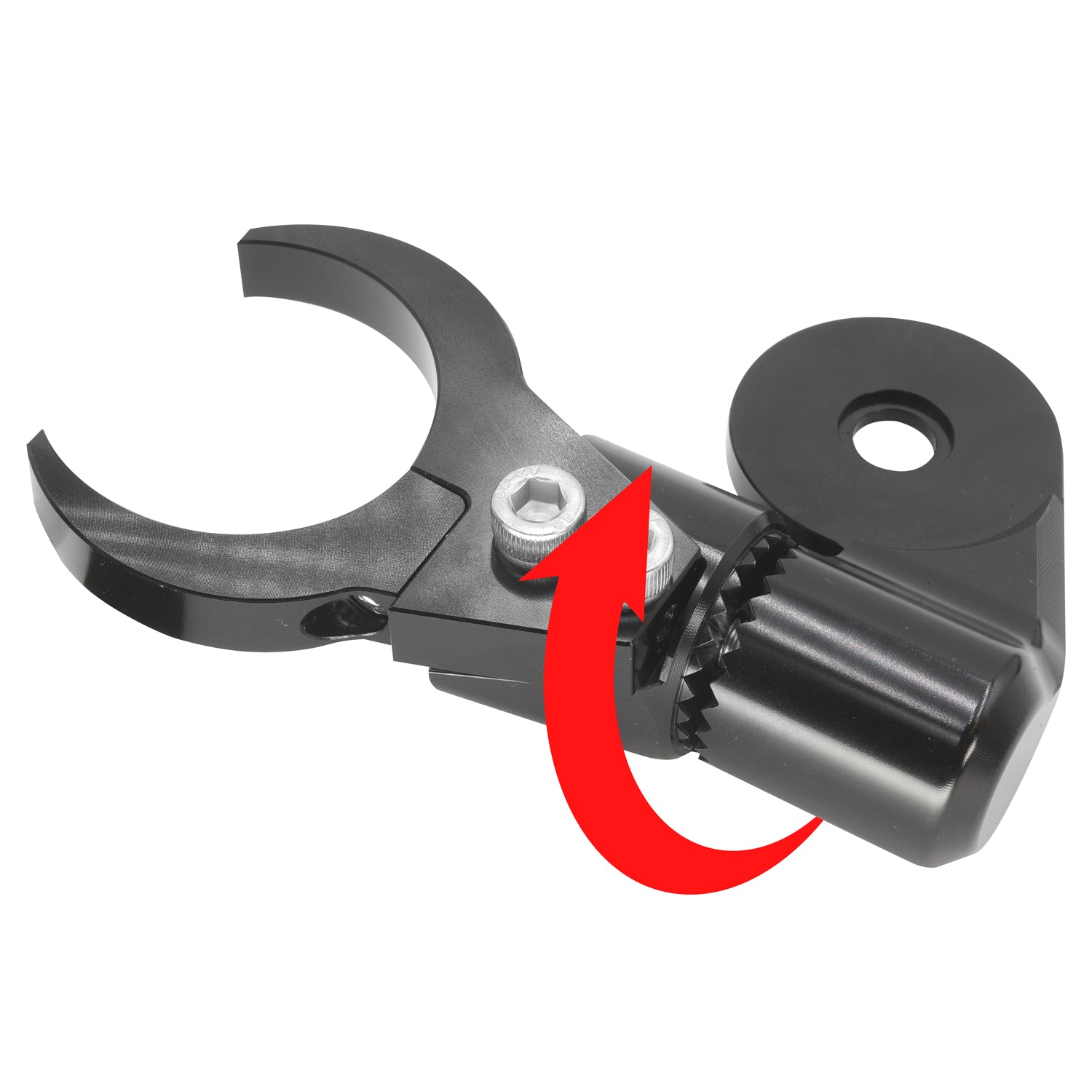

- Over 30 indexed locking positions to set your antenna angle exactly
- Clamps tubing sizes 1", 1.25", 1.5", 1.75", 1.8", 2", and 2.5"
- Horizontal or vertical mounting for flexible placement
- Billet aluminum construction for off-road durability
- No drilling and no welding — installs with basic hand tools
- Works with 3/8-inch NMO-style antenna cables
Built To Solve: No-Drill Antenna Mounting On A UTV Roll Cage
- Fixes flimsy or damaged factory antenna placement that cracks on rough trails
- Removes the need to drill or weld holes into your cage or body panels
- Corrects a poor antenna angle that hurts your radio signal
- Lets you relocate the antenna when you add lights, mirrors, or other accessories
Best For: UTV And Side-By-Side Riders Running A Two-Way Radio
- Dune, desert, and trail riders adding a mobile antenna to their build
- Owners of Can-Am, Polaris, Honda, Kawasaki, and Yamaha UTVs with 1"–2.5" tubing
- Racers and weekend riders who want a clean, adjustable no-drill install
- Anyone moving a single whip antenna between multiple vehicles
Choose the bar size that matches your cage tube — see Fitment below. If you already run a compatible clamp, the Antenna Mount Only option gives you just the adjustable antenna head.
Specifications
- Material: billet aluminum
- Fits tubing: 1", 1.25", 1.5", 1.75", 1.8", 2", and 2.5"
- Adjustment: 30+ indexed locking positions
- Mounting orientation: horizontal or vertical
- Antenna compatibility: 3/8-inch NMO-style antenna cables
- Not compatible with NMO-MT-3/4 mounts
- Manufacturer Part Number: BM-XC-ANT
Fitment
The Adjustable Antenna Bar Mount fits virtually any UTV, side-by-side, or custom build with round tubing from 1 inch to 2.5 inches. Select the bar size that matches the tube you plan to clamp to. Common bar diameters by vehicle:
- Can-Am Maverick X3 and X3 Max: 1.8" perimeter and crossbar
- Can-Am Commander, Maverick, and Defender: 2.0" crossbar
- Polaris RZR, Ranger, RZR S, and XP: 1.75" cage
- Polaris Pro R, Turbo R, and Pro XP (2015+): 1.75" crossbar, 2.0" perimeter
- Honda Talon: 2.0" perimeter, 1.65" crossbar
- Kawasaki Teryx and Teryx KRX: 1.75" (KRX crossbar 1.5")
- Yamaha YXZ and Wolverine RMAX: 1.75" perimeter, 1.5" crossbar
This is a universal clamp mount, so measure your tube before ordering. Fitment is not guaranteed on applications not listed here.
FAQ
Will this antenna bar mount fit my roll cage?
It clamps onto round tubing from 1 inch up to 2.5 inches, which covers most UTV and side-by-side roll cages and custom builds. Measure your tube diameter and pick the matching bar size before ordering.
What size bar mount should I choose?
Choose the size that matches the tube you want to clamp to. For example, most Polaris RZR cages are 1.75 inches and Can-Am X3 tubing is 1.8 inches. See the Fitment section for common diameters by vehicle.
Do I need to drill or weld to install this antenna mount?
No. This is a no-drill, no-weld clamp mount that installs and relocates with basic hand tools, so you can fine-tune placement or move it without modifying your cage.
What antennas work with this mount?
It is designed for 3/8-inch NMO-style antenna cables, the standard used by most UTV whip and mobile radio antennas. It is not compatible with NMO-MT-3/4 mounts.
Can I mount the antenna horizontally or vertically?
Yes. The billet aluminum head offers more than 30 indexed locking positions and supports both horizontal and vertical mounting, so you can set the exact antenna angle you want.
What is the difference between the bar mount and the Antenna Mount Only option?
The bar mount sizes include the tube clamp plus the adjustable antenna head. The Antenna Mount Only (No Bar Mount) option is just the adjustable antenna head for riders who already have a compatible clamp or mounting point.
Why Rugged Radios
Rugged Radios builds off-road communication gear trusted by UTV, desert, and race teams, from radios and intercoms to the antennas and mounts that keep them connected. The Adjustable Antenna Bar Mount carries that focus with billet aluminum construction and a no-drill design that stands up to real trail abuse.
Complete Your UTV Antenna And Radio Setup
Pair the Adjustable Antenna Bar Mount with the right NMO whip antenna, a coax extension cable for a clean routing path, and a shock spring to protect the whip on rough terrain. Confirm your cage tube diameter against the fitment list above, then choose the matching bar size — or the Antenna Mount Only option if you already run a compatible clamp. Order from Dunes 2 Dezert SXS.
