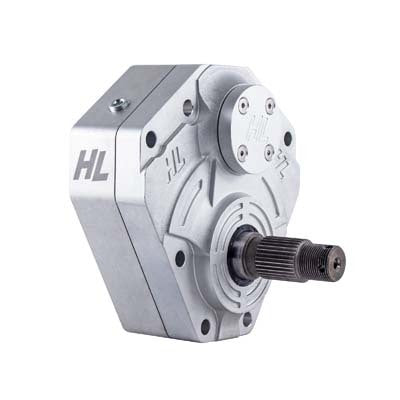

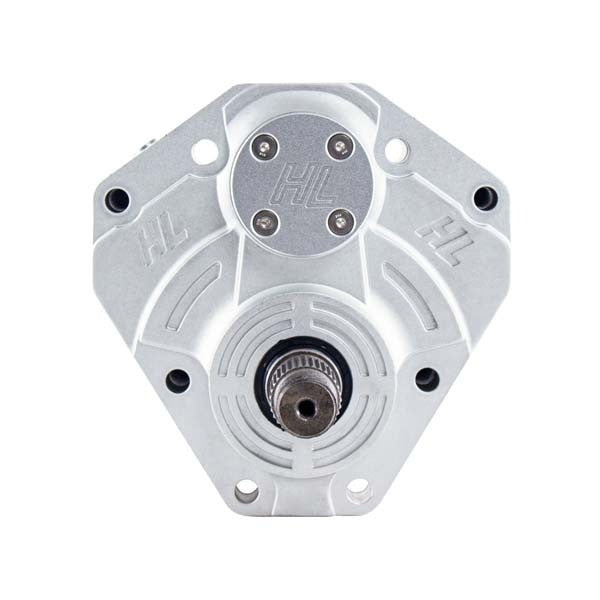

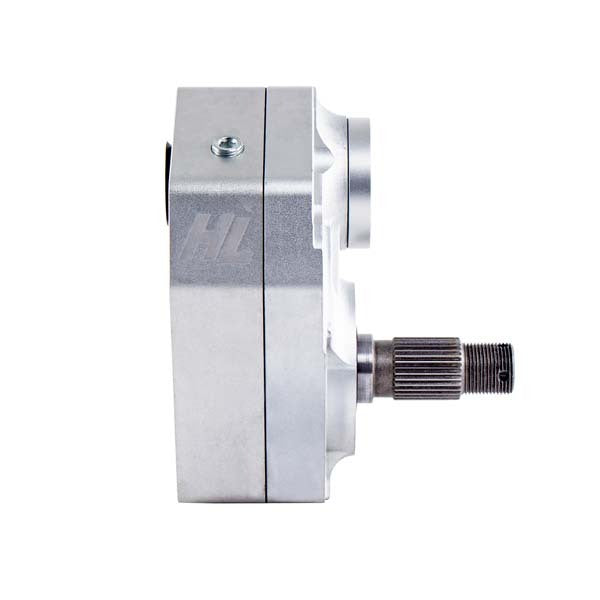

High Lifter 4" Portal Lift 15% Polaris General XP 4 1000 (2020-2026)
Shipping calculated at checkout
Out of stock
Larger tires can cost a Polaris General XP 4 1000 torque when the gearing is too high to offset them. Listed for: Polaris General XP 4 1000 2020 - 2026. Fitment is not guaranteed on unlisted applications. High Lifter's portal gear lift provides a 15% reduction. A second idler gear spreads the load over more gear teeth, while the portal boxes provide 4 inches of lift.
Key Features
- 4-inch portal lift with 15% gear reduction

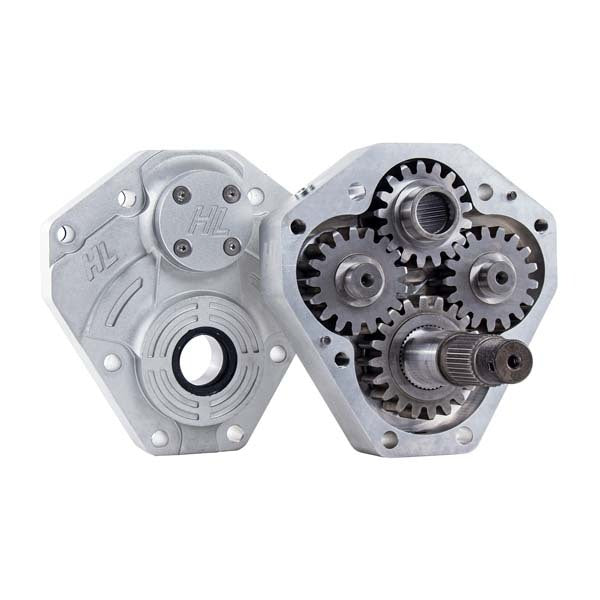

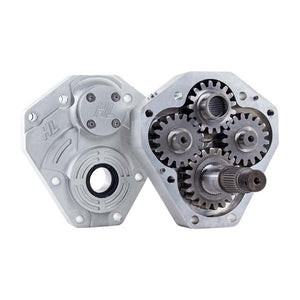

- Dual idler gears spread load across twice as many gear teeth
- Forged gear boxes with an optional venting provision
- 5/16-inch steel backing plates with welded gusset brackets
- Slotted stainless steel rotors with assembly access holes

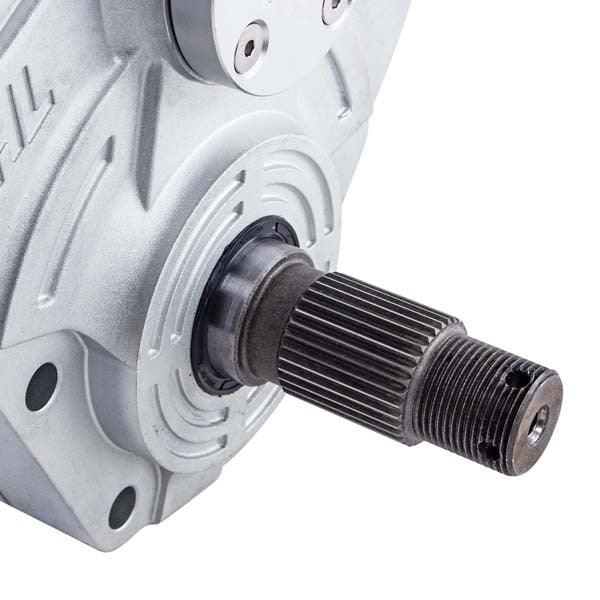

- Two spindle-shaft oil seals and a triple input-shaft seal
- High-density Kevlar fiber gaskets that need no additional sealant
Built To Solve: Polaris General XP 4 1000 Tire and Gearing Control
- Uses a 15% portal gear reduction to address the torque loss associated with larger tires.
- Spreads gear load over twice as many teeth with a second idler gear.
- Uses slotted rotors to dissipate heat during braking.
- Adds sealing area at the spindle shaft and a wiper seal at the input shaft.
Best For: Polaris General XP 4 1000 Riders Planning Larger Tires
- Four-seat General XP 4 1000 owners looking for a 4-inch portal lift.
- Riders choosing a 15% gear reduction for a larger-tire setup.
- Owners prepared to check tire clearance against their lift and other modifications.
- Riders who can meet the minimum 14-inch wheel and backspacing requirements.
Specifications
- Lift height: 4 inches
- Backing plate: 5/16-inch steel
- Largest stated tire with portals: 33 inches; general guidance, not guaranteed
- Largest stated tire with forward arms: 35 inches; general guidance, not guaranteed
- Minimum wheel diameter: 14 inches
- 14- and 15-inch wheel backspacing: Maximum 4-1/2 inches
- 16-inch and larger wheel backspacing: Maximum 5 inches
- Manufacturer part numbers: PGL-415DI-GEN1XP-1
What's in the Box
- Four portal boxes
- Dual idler gears
- High-density Kevlar fiber gaskets
- Spindle shaft oil seals
- Input shaft triple seal with wiper seal
- Steel backing plates with welded gusset brackets
- Stainless steel rotors
Fitment
- Polaris General XP 4 1000 2020 - 2026
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Is the vent kit part of this portal lift?
The gear box has a venting provision, but the vent kit is optional and was listed as available soon.
What do factory 14-inch wheels need?
Factory 14-inch wheels must run a 1-inch spacer.
How should I choose tires for this portal lift?
Check your tire brand, lift and other modifications before deciding. The stated tire sizes are general guidance, not a guarantee.
What wheel backspacing is allowed?
For 14- and 15-inch wheels, maximum backspacing is 4-1/2 inches. For wheels 16 inches and larger, it is 5 inches.
Will the backing plates work with aftermarket control arms?
The stated control-arm compatibility is limited to arms built to factory hub specifications.
Which General XP model is this portal lift for?
Choose this version for a Polaris General XP 4 1000 from 2020 through 2026.
Why High Lifter
High Lifter adds a second idler gear to its portal gear box to spread the load across more gear teeth.
Choose a General XP 4 1000 Portal Lift
Check your wheel backspacing and tire setup, then order this High Lifter portal gear lift from Dunes 2 Dezert SXS.
