High Lifter 4" 15% Dual Idler Portals Polaris RZR XP 1000 (2024-2026)
Shipping calculated at checkout
Out of stock
Larger tires can rob the Polaris RZR XP 1000 of torque, even when a lower gear ratio brings the speedometer closer to its stock reading. Listed for: Polaris RZR XP 1000 2024 - 2026; Polaris RZR XP 4 1000 2024 - 2026. Fitment is not guaranteed on unlisted applications. High Lifter 4 inch portals add lift and a 15% gear reduction. A second idler gear spreads the load across twice as many gear teeth.
Key Features
- 4-inch lift with 15% gear reduction

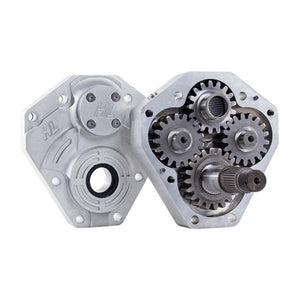

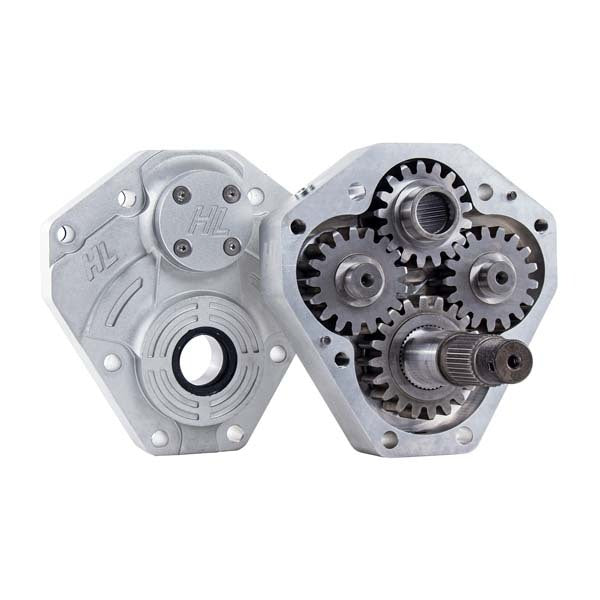

- Dual idler gears spread load across more gear teeth
- Forged gear boxes
- 5/16-inch steel backing plates with bent flanges
- Precision-ground stainless steel rotors with access holes and slots
- Dual spindle-shaft oil seals and a triple input-shaft seal
- High-density Kevlar fiber gaskets require no additional sealant
Built To Solve: RZR XP 1000 Lift and Gear Reduction
- Offset some of the torque loss associated with larger tires through gear reduction.
- Spread gear load across twice as many teeth with the second idler gear.
- Use improved engine braking to reduce how often the brakes are needed.
- Dissipate heat through slots in the stainless steel rotors.
Best For: Polaris RZR XP 1000 and XP 4 1000 Riders
- 2024-2026 RZR XP 1000 riders adding a 4-inch portal lift.
- 2024-2026 RZR XP 4 1000 riders looking for 15% gear reduction.
- Riders checking wheel diameter and backspacing before ordering portals.
- Riders comparing tire clearance with stock or forward arms.
Specifications
- Lift height: 4 inches
- Backing plate: 5/16-inch steel with bent flanges
- Minimum wheel diameter: 14 inches
- Maximum backspacing: 4-1/2 inches for 14- and 15-inch wheels; 5 inches for wheels 16 inches and larger
- Tire fitment guide: 33 inches with portals; 35 inches with forward arms. Verify tire and modification clearance.
- Manufacturer part numbers: PGL-415DI-RZR1-2
What's in the Box
- Four portal boxes
- Input-shaft wiper seal
Fitment
- Polaris RZR XP 1000 2024 - 2026
- Polaris RZR XP 4 1000 2024 - 2026
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
What wheel size can I run with these portals?
Use a wheel at least 14 inches in diameter. The backspacing limit is 4-1/2 inches for 14- and 15-inch wheels and 5 inches for wheels 16 inches and larger.
What is required to run 14-inch factory wheels?
A 1-inch spacer is required with 14-inch factory wheels.
Will a 35-inch tire always clear with forward arms?
No. The 35-inch figure is a general guide, not a guarantee. Verify the tire, lift and other modifications before buying.
Do the portal gaskets need additional sealant?
No additional sealant is needed with the high-density Kevlar fiber gaskets.
When should I consider a lower gear ratio?
High Lifter recommends a lower ratio when top speed is not the priority and you want more power to offset the torque loss from larger tires.
Why High Lifter
High Lifter adds a second idler gear to the portal gearbox to spread the load across more gear teeth.
Shop RZR XP 1000 Portal Gear Lifts
Check your wheel backspacing and tire clearance, then order your High Lifter portals from Dunes 2 Dezert SXS.
