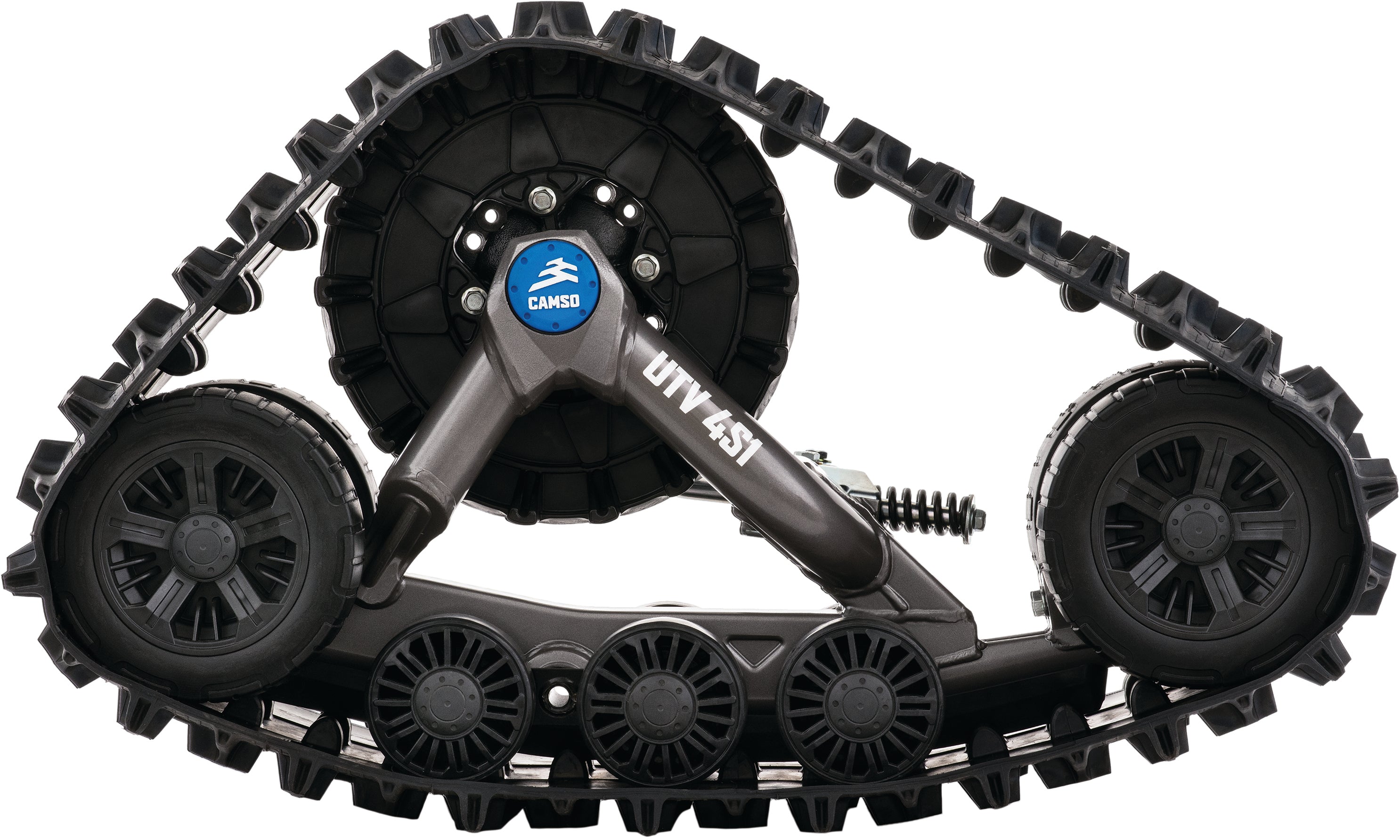

CAMSO UTV 4S1 Track System for Kubota 1140 RTV
Transform your off-road capability with the CAMSO UTV 4S1 Track System for the Kubota 1140 RTV, engineered for riders who require maximum traction, stability, and reliability in the harshest terrain. Whether you're working remote job sites, managing property, or pushing through deep snow, this Kubota 1140 RTV track system delivers unmatched flotation and torque for year-round performance.
With more than 2520 sq. in. of ground contact and a 5-inch increase in ground clearance, the CAMSO 4S1 Track System allows your Kubota 1140 RTV to travel confidently across rutted trails, deep powder, uneven terrain, rocks, logs, and broken ice. The advanced Flex-Track front design significantly improves steering response, lateral stability, and comfort while reducing vibration and shock across rough terrain.
Built for extreme durability, the CAMSO UTV 4S1 Track System for Kubota 1140 RTV uses a carbon-steel frame, high-density flat-free tires, and oil-bath triple bearings designed for long-term reliability and low maintenance. When conditions demand more torque, the optimized sprocket system ensures maximum power transfer, making it ideal for utility work, hunting, farming, or backcountry travel.
Whether you're hauling feed, plowing through snow, or towing equipment, this Kubota 1140 RTV track kit supports up to 1000 lbs of cargo and 2500 lbs of towing capacity on snow or ice—making your RTV a true four-season machine.
⭐ Top Performance Benefits
✔ Maximum Traction & Hill-Climbing Power
• Climb 20° inclines in deep snow
• Increased surface contact for improved flotation
• 1.125" lugs provide aggressive grip in all conditions
✔ Smooth & Comfortable Ride
• Foam-filled idler wheels absorb bumps
• Rubber-mounted shafts reduce vibration
• Flex-Track design maintains consistent ground contact
✔ Built for Long-Term Durability
• Carbon steel frame resists impacts and debris
• High-density tires reduce long-term wear
• Triple hub bearings with oil-bath lubrication
• Bladder-style face seals prevent water intrusion
✔ Enhanced Torque & Load Handling
• Optimized sprocket ratio for high-torque tasks
• Efficient power transfer for heavy towing
• Hauls 1000 lbs or tows up to 2500 lbs
✔ Precision Steering & Stability
• Curved Flex-Track improves handling response
• Optimized geometry reduces fatigue on long rides
• Increased lateral support on steep sidehills
🧰 What’s Included
• (4) Track systems – 2 front, 2 rear
• Kubota 1140-specific mount kit
• Anti-rotation spring & limiter
• Full hardware & installation components
📐 Technical Specifications
Drive & Frame
• Internal drive
• Carbon steel frame
• 15–18 tooth sprocket compatibility
• Progressive-damper anti-rotation arm
Track Dimensions
• Front: 98.5" × 12.5" × 1.125" lugs
• Rear: 116.7" × 14" × 1.125" lugs
Weights
• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount Kit: ~6.25 lbs
Wheel & Bearing System
• 5.2" double-bearing mid-rollers
• 9.49" flat-free tires
• Forged-steel hub with triple bearings
❓ Frequently Asked Questions
Q1: Will the CAMSO 4S1 Track System fit my Kubota 1140 RTV?
Yes — fits 2016 Kubota 1140 RTV with sheet-metal rear A-arms.
Q2: How much ground clearance is gained?
Approximately 5 inches.
Q3: What load can it tow?
Up to 2500 lbs on snow and ice.
Q4: Is installation difficult?
No — the included mount kit allows clean, bolt-on installation using factory mounting locations.
🚜 Fitment
2016 Kubota 1140 RTV – Sheet Metal Rear A-Arms
