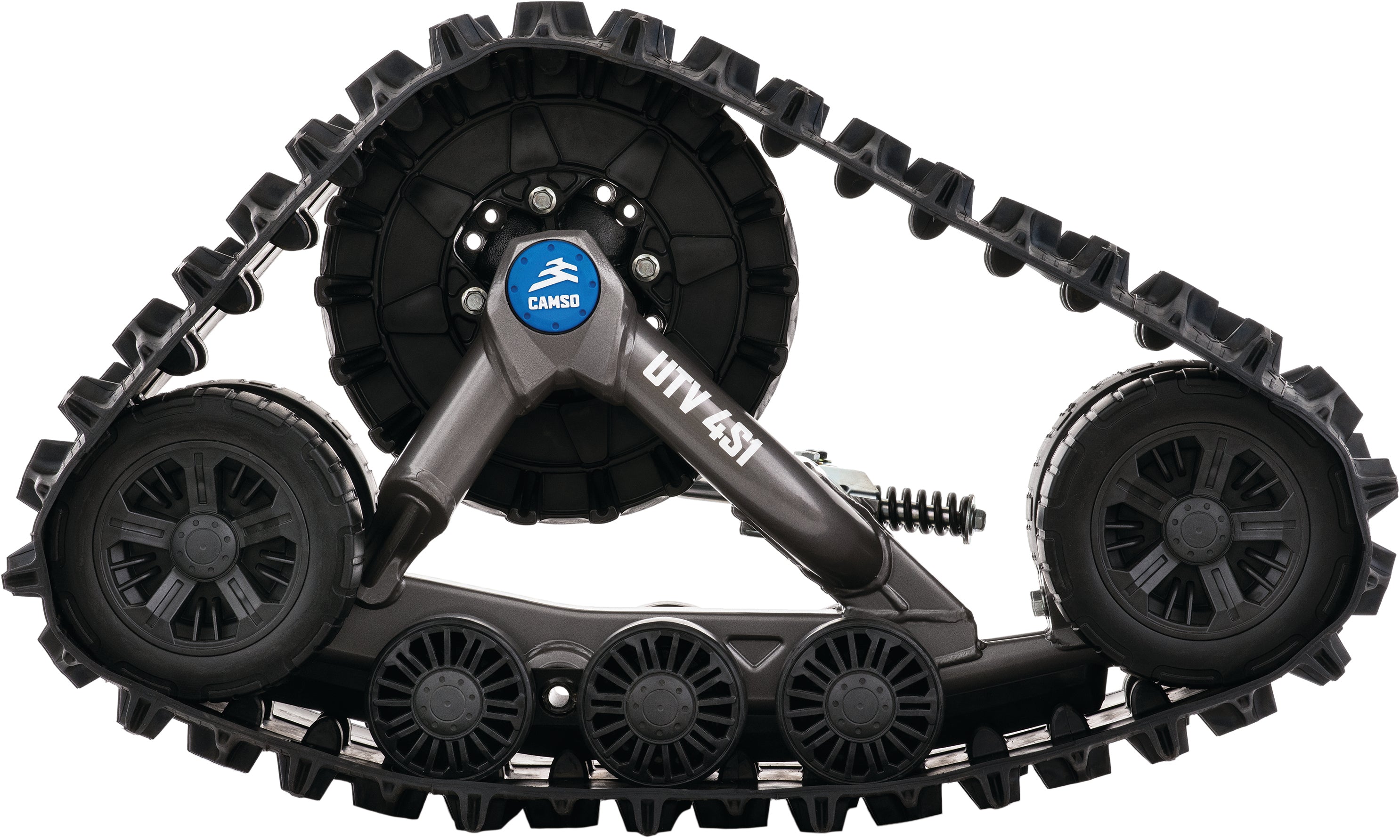

CAMSO UTV 4S1 Track System for Kubota 1100 & 1140 RTV

Transform your machine into a four-season workhorse with the CAMSO UTV 4S1 Track System for Kubota 1100 & 1140 RTV. Engineered for the harshest terrain, this premium track conversion delivers the traction, flotation, and stability needed to take on deep snow, mud, muskeg, swamps, and rugged backcountry environments. Whether you're using your Kubota RTV for work, farm utility, ranching, or recreation, the CAMSO 4S1 Track System dramatically boosts capability and all-terrain performance.

With more than 2520 sq. in. of ground contact and an added 5 inches of ground clearance, your Kubota 1100 or 1140 RTV gains the ability to glide over deep powder, navigate rutted trails, cross broken ice, and climb technical terrain with confidence. The exclusive Flex-Track front design enhances steering precision, reduces resistance, and provides superior stability on uneven ground and steep sidehills.

Built tough, the CAMSO 4S1 Track System for Kubota RTVs features a high-strength carbon steel frame, flat-free high-density tires, and triple oil-bath hub bearings for long-term durability with minimal maintenance. Whether you're towing a heavy utility sled or hauling materials, this track system lets your Kubota RTV handle up to 1000 lbs of cargo and 2500 lbs of towing across snow or ice.

Optimized gearing improves torque transfer, allowing your Kubota 1100 or 1140 RTV to maintain power under load while maximizing efficiency. From winter access roads to off-grid properties and beyond, the CAMSO UTV 4S1 Track System gives your RTV unmatched reliability and performance all year long.

⭐ Top Performance Benefits

✔ Maximum Traction & Climbing Ability

• Easily climb 20º hills in deep snow
• Massive ground contact for flotation
• 1.125" aggressive lugs for superior grip

✔ Smoother, More Comfortable Ride

• Foam-filled idler wheels absorb impacts
• Rubber-mounted shafts minimize vibration
• Flex-Track design maintains smooth ground contact

✔ Extreme Durability for Harsh Environments

• Heavy-duty steel frame resists debris buildup
• High-density flat-free tires last longer
• Triple hub bearings + oil bath lubrication
• Moisture-blocking face seals prevent intrusion

✔ Boosted Torque & Hauling Performance

• Improved sprocket ratio increases torque
• Ideal for snow towing, ranch work, and utility loads
• Tow up to 2500 lbs across frozen terrain

✔ Better Steering & Stability

• Curved Flex-Track improves steering in all conditions
• Enhanced lateral stability on steep sidehills
• Predictable, controlled handling

📐 Technical Specifications

Drive & Frame

• Internal drive
• Carbon steel frame
• 15–18 tooth sprocket compatibility
• Progressive-damper anti-rotation arm

Track Dimensions

• Front Track: 98.5" × 12.5" × 1.125" lugs
• Rear Track: 116.7" × 14" × 1.125" lugs

Weights

• Front Track: 103 lbs
• Rear Track: 120 lbs
• Mount kit: ~6.25 lbs

Wheels & Bearings

• 5.2" dual-bearing mid-roller wheels
• 9.49" flat-free tires
• Forged hubs with triple oil-bath bearings

🔧 What’s Included

• (4) Track systems – 2 front & 2 rear
• Kubota 1100/1140-specific mount kit
• Anti-rotation spring & limiter
• All hardware + installation components

❓ Frequently Asked Questions

Q1: Will this fit my Kubota 1100 or 1140 RTV?
Yes — fits:
• 2007–2014 Kubota RTV 1100 (T / H / A models)
• 2010–2014 Kubota RTV 1140 CPX

Q2: How much ground clearance is added?
Approximately 5 inches.

Q3: What are the hauling capabilities?
• Haul up to 1000 lbs
• Tow up to 2500 lbs (snow/ice)

Q4: How durable is the system?
The CAMSO 4S1 uses steel construction, sealed hubs, and triple bearings for long service life.

Q5: Does installation require modification?
No — the mount kit is designed for a clean, straightforward installation.

🚜 Fitment

Kubota RTV 1100 (2007–2014)
T • H • A

Kubota RTV 1140 CPX (2010–2014)
