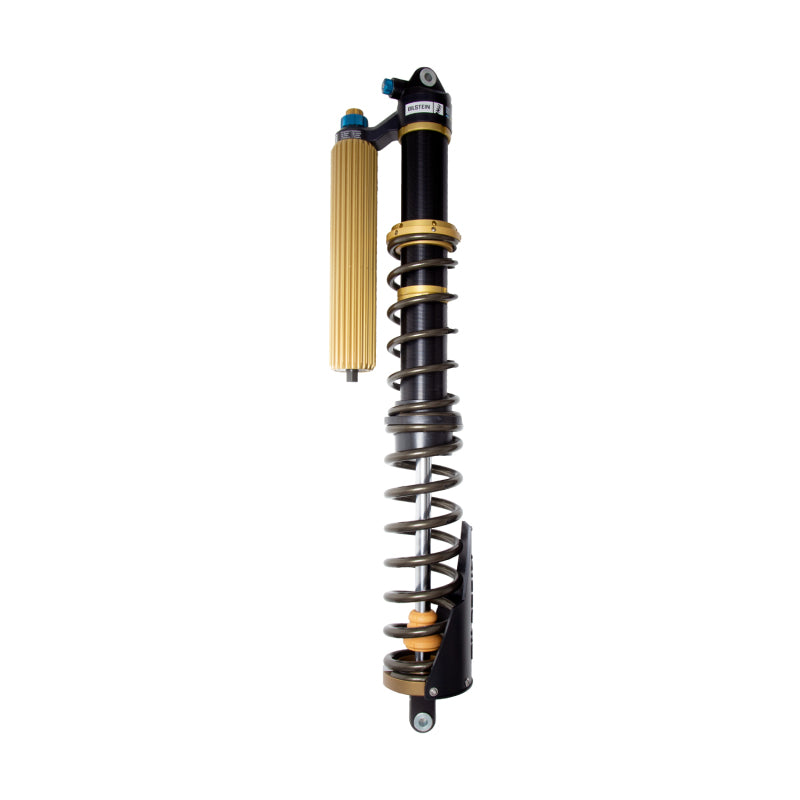

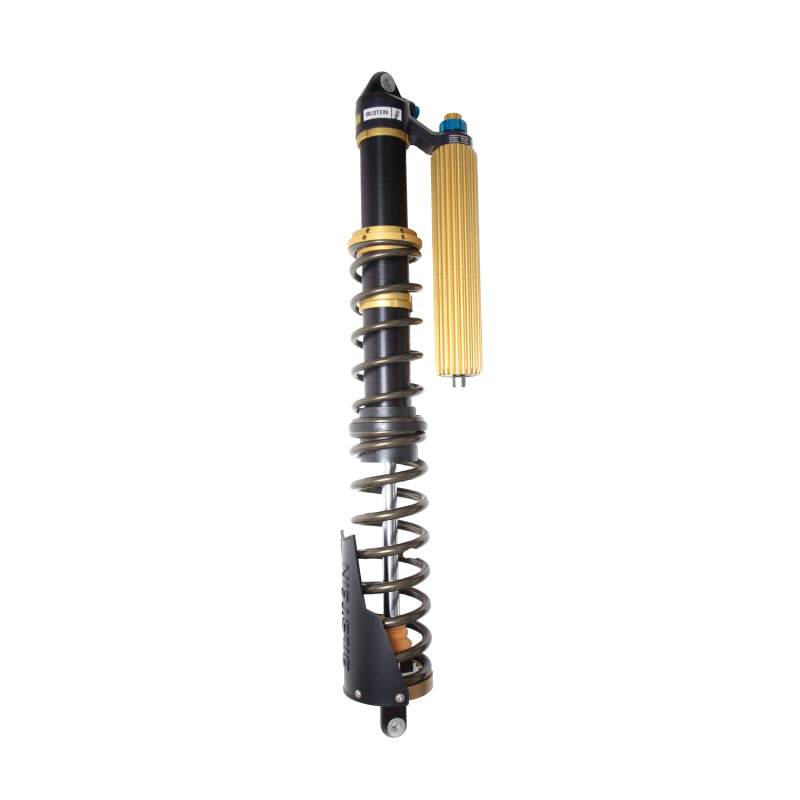

Bilstein Black Hawk Rear Left Coilover – Polaris RZR Pro R 4 (2022–2024)
Upgrade your suspension with the Bilstein Black Hawk Powersports Rear Left Shock & Coil Spring Assembly for Polaris RZR Pro R 4. Designed specifically for high-performance UTV applications, this direct-fit coilover delivers race-ready durability, advanced damping technology, and full suspension tuning capability to help you push your machine to the limit.
Built with Bilstein’s patented ZoneControl® position-sensitive damping, the Black Hawk system features five independently tuned damping zones—three compression and two rebound—allowing the suspension to react differently throughout the shock travel. The result is exceptional comfort over small bumps, superior control during high-speed impacts, and outstanding bottom-out protection.
With 4-way adjustable damping, dual-rate coil springs, and a precision-engineered 70mm rear left corner module, the Bilstein Black Hawk coilover gives riders the flexibility to fine-tune suspension performance for dunes, desert runs, trails, or aggressive off-road racing.
📦 Need it fast? Contact us for current availability and estimated lead times before ordering.
Key Features
- Direct-fit rear left coilover for Polaris RZR Pro R 4
- Bilstein ZoneControl® position-sensitive damping technology
- 5 damping zones (3 compression / 2 rebound)
- 4-way adjustable damping system
- Dual-rate coil springs with crossover nuts
- Internal Jounce Cut Off (JCO) hydraulic bump stop
- Rebound Cut Off (RCO) droop control system
- All-aluminum shock body construction
- Gold finned remote reservoirs for enhanced cooling
- Fully serviceable race-ready design
- 70mm rear left corner module
Advanced Suspension Technology
ZoneControl® Position-Sensitive Damping
Bilstein’s ZoneControl CR technology divides suspension travel into multiple damping zones, allowing the shock to respond differently depending on where it is in the stroke.
Benefits include:
- Improved comfort over small bumps
- Enhanced control during large impacts
- Greater stability at high speeds
Internal Jounce Cut Off (JCO)
The JCO hydraulic bump stop system functions as a two-stage internal bump stop designed to control harsh bottom-outs.
Features include:
- 10-position clicker adjustment
- Precise bottom-out tuning
- Increased durability during aggressive riding
Rebound Cut Off (RCO)
The RCO system manages rebound at full suspension extension, stabilizing the vehicle when the suspension reaches maximum droop.
Benefits include:
- Smoother suspension extension
- Increased damper protection
- Eliminates the need for external limit straps
4-Way Adjustable Suspension
Bilstein Black Hawk coilovers provide four external adjustments for precise tuning:
- High-Speed Compression
- Low-Speed Compression
- Rebound
- Jounce Cut Off (Hydraulic Bump Stop)
All adjustments are easily accessible for quick suspension changes depending on terrain or driving style.
Dual-Rate Spring System
Each coilover includes dual-rate coil springs and crossover nuts, allowing easy adjustment of:
- Ride height
- Spring preload
- Suspension progression
This provides riders with the flexibility to tune suspension characteristics for different riding environments.
Built for Race Conditions
Bilstein Black Hawk coilovers are designed to perform in the most demanding off-road conditions with:
- All-aluminum shock bodies
- Gold finned reservoirs for improved heat dissipation
- Fully rebuildable and serviceable components
- Race-ready durability right out of the box
Fitment
Compatible with:
- 2022 Polaris RZR Pro R 4 Premium
- 2023 Polaris RZR Pro R 4 Premium
- 2024 Polaris RZR Pro R 4 Premium
- 2022 Polaris RZR Pro R 4 Sport
- 2022 Polaris RZR Pro R 4 Ultimate
- 2023 Polaris RZR Pro R 4 Ultimate
- 2024 Polaris RZR Pro R 4 Ultimate
- 2022 Polaris RZR Pro R 4 Ultimate Launch Edition
FAQ
What makes Bilstein Black Hawk shocks different?
They use ZoneControl position-sensitive damping, allowing the suspension to adapt to different parts of the shock travel for improved comfort and control.
Are these shocks adjustable?
Yes. They feature 4-way external adjustability including compression, rebound, and hydraulic bump stop control.
Are they race-ready?
Yes. Bilstein designed the Black Hawk suspension system to handle extreme off-road conditions and competitive racing environments.
Are they rebuildable?
Yes. The Black Hawk coilovers are fully serviceable and rebuildable.
Take Your RZR Pro R Suspension to the Next Level
Experience unmatched suspension control with the Bilstein Black Hawk Rear Left Coilover for Polaris RZR Pro R 4.
Order today from Dunes 2 Dezert SXS and unlock race-ready suspension performance, superior comfort, and bottomless ride capability.
