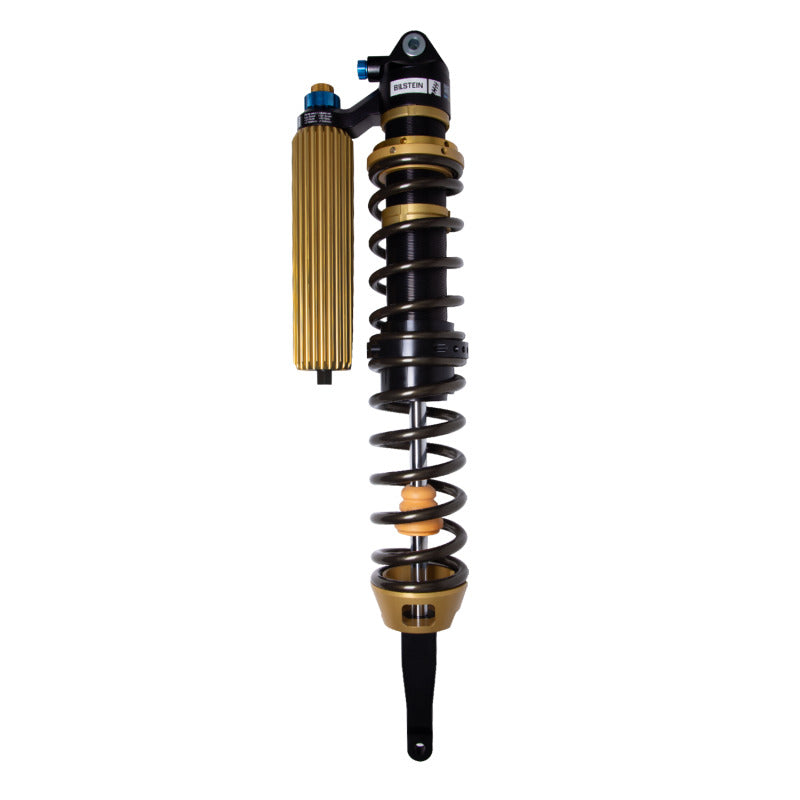

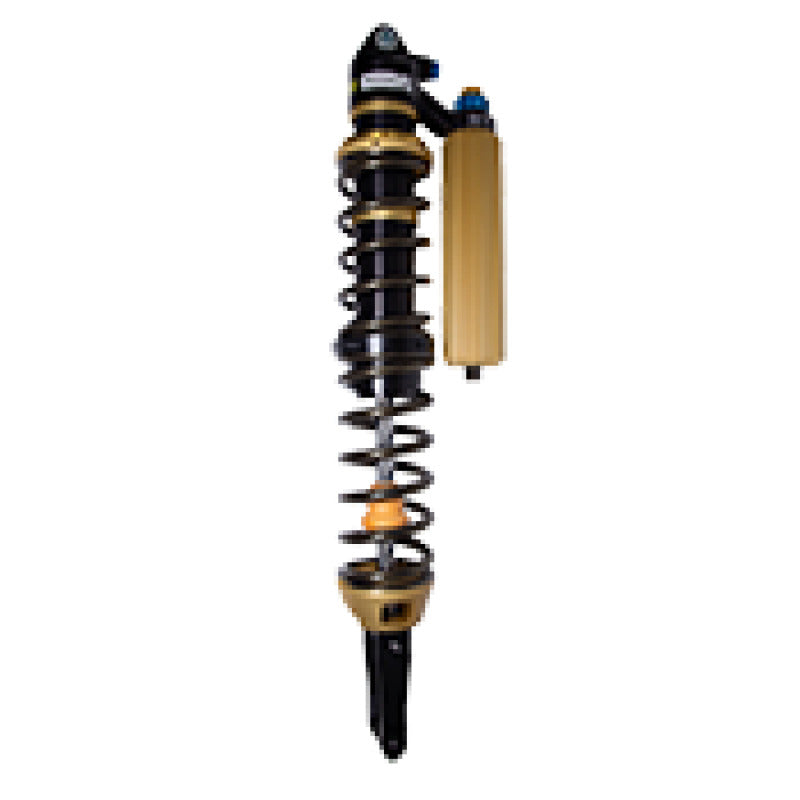

Bilstein Black Hawk Front Coilover Shock – Polaris RZR Pro R 4 (2022–2024)
Upgrade your suspension performance with the Bilstein Black Hawk Powersports Front Shock & Coil Spring Assembly for Polaris RZR Pro R 4. Engineered specifically for high-performance UTV applications, these direct-fit coilovers deliver advanced damping technology, race-ready durability, and complete suspension tuning capability.
Built with Bilstein’s patented ZoneControl® position-sensitive damping, the Black Hawk coilover features five independently tuned damping zones—three compression and two rebound—to provide unmatched control across all riding conditions. Whether you're attacking desert terrain, dunes, trails, or race courses, these shocks provide the comfort, stability, and bottom-out resistance needed to push your machine further.
With 4-way external adjustability, dual-rate springs, and a precision-engineered 70mm front corner module, the Bilstein Black Hawk suspension system gives riders the ability to fine-tune damping performance for their exact riding style and terrain.
Key Features
- Direct-fit coilover shock for Polaris RZR Pro R 4
- Bilstein ZoneControl® position-sensitive damping
- 5 damping zones (3 compression / 2 rebound)
- 4-way adjustable damping system
- Dual-rate coil springs with crossover nuts
- Internal Jounce Cut Off (JCO) hydraulic bump stop
- Rebound Cut Off (RCO) droop control system
- All-aluminum shock construction
- Gold finned remote reservoirs
- Completely serviceable race-ready design
- 70mm front right corner module
📦 Need it fast? Contact us for current availability and estimated lead times before ordering.
Advanced Suspension Technology
ZoneControl® Position-Sensitive Damping
Bilstein’s ZoneControl CR technology divides the shock travel into multiple damping zones, allowing the suspension to react differently depending on where it is in the travel range.
Benefits include:
- Improved ride comfort on small bumps
- Better control during aggressive impacts
- Increased suspension stability during high-speed driving
Internal Jounce Cut Off (JCO)
The JCO hydraulic bump stop system functions as a two-stage internal bump stop to control bottom-out events.
Features include:
- 10-position clicker adjustment
- Improved bottom-out control
- Increased suspension durability during hard landings
Rebound Cut Off (RCO)
The RCO system manages suspension droop by controlling rebound at full extension. This helps stabilize the vehicle and eliminates the need for traditional limit straps.
Benefits include:
- Smoother suspension extension
- Increased damper protection
- Improved vehicle stability
4-Way Adjustable Suspension
Bilstein Black Hawk shocks offer four external adjustments for precision tuning:
- High-Speed Compression
- Low-Speed Compression
- Rebound
- Jounce Cut Off (Hydraulic Bump Stop)
All adjustments are easily accessible, allowing riders to make quick changes based on terrain and driving conditions.
Dual-Rate Spring System
Each Black Hawk coilover includes dual-rate springs and crossover nuts, allowing easy adjustment of:
- Ride height
- Spring preload
- Suspension progression
This provides the flexibility to tune the suspension for different terrains and driving styles.
Built for Race Conditions
The Bilstein Black Hawk coilover system is designed to withstand extreme conditions with:
- All-aluminum shock bodies
- Gold finned remote reservoirs for improved cooling
- Fully serviceable construction
- Race-ready durability right out of the box
Fitment
Compatible with:
- 2022 Polaris RZR Pro R 4 Premium
- 2023 Polaris RZR Pro R 4 Premium
- 2024 Polaris RZR Pro R 4 Premium
- 2022 Polaris RZR Pro R 4 Sport
- 2022 Polaris RZR Pro R 4 Ultimate
- 2023 Polaris RZR Pro R 4 Ultimate
- 2024 Polaris RZR Pro R 4 Ultimate
- 2022 Polaris RZR Pro R 4 Ultimate Launch Edition
FAQ
What makes Bilstein Black Hawk shocks different?
They use ZoneControl position-sensitive damping with multiple damping zones, allowing better control, comfort, and bottom-out resistance compared to traditional coilovers.
Are these shocks adjustable?
Yes. They feature 4-way adjustability including compression, rebound, and hydraulic bump stop tuning.
Are these shocks race-ready?
Yes. Bilstein designed the Black Hawk system to handle extreme off-road conditions and race-level abuse.
Are the shocks serviceable?
Yes. The Black Hawk coilovers are fully rebuildable and serviceable.
Take Your RZR Pro R Suspension to the Next Level
Experience unmatched suspension control with the Bilstein Black Hawk Front Coilover for Polaris RZR Pro R 4.
Order today from Dunes 2 Dezert SXS and unlock race-ready performance, superior comfort, and bottomless suspension capability.
