Polaris RZR XP 2024+ High Clearance Radius Rod Set | DRT Motorsports
Shipping calculated at checkout
In stock

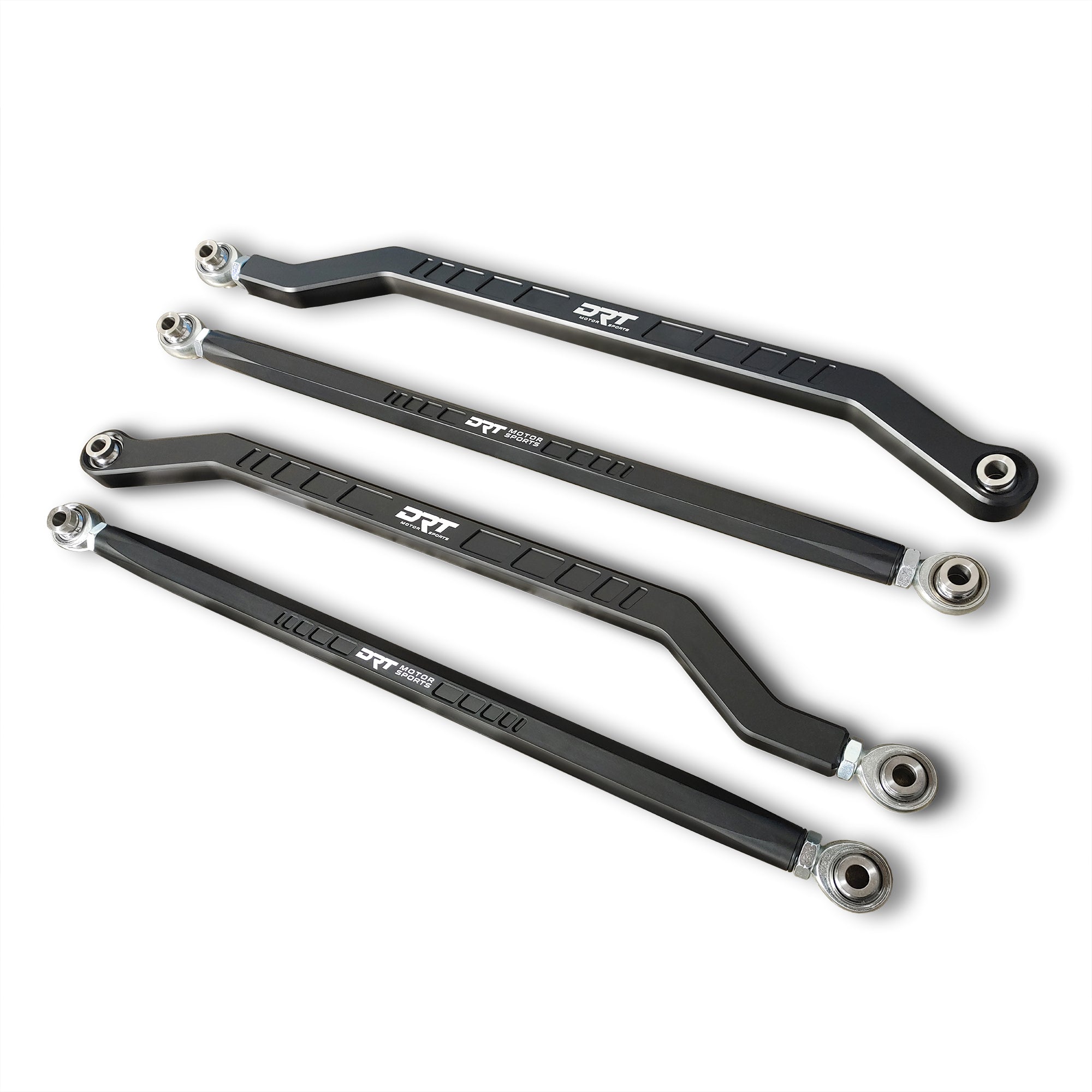

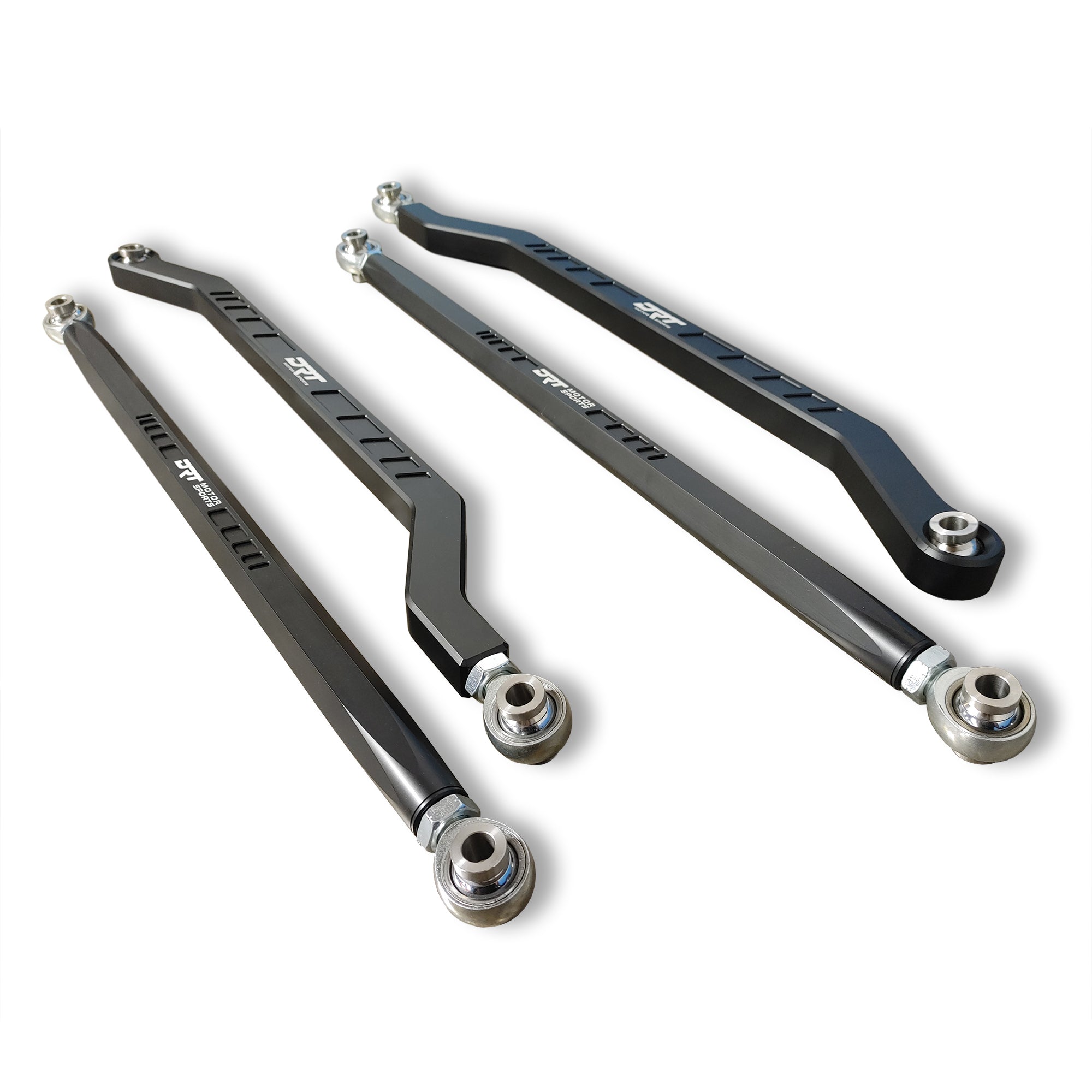

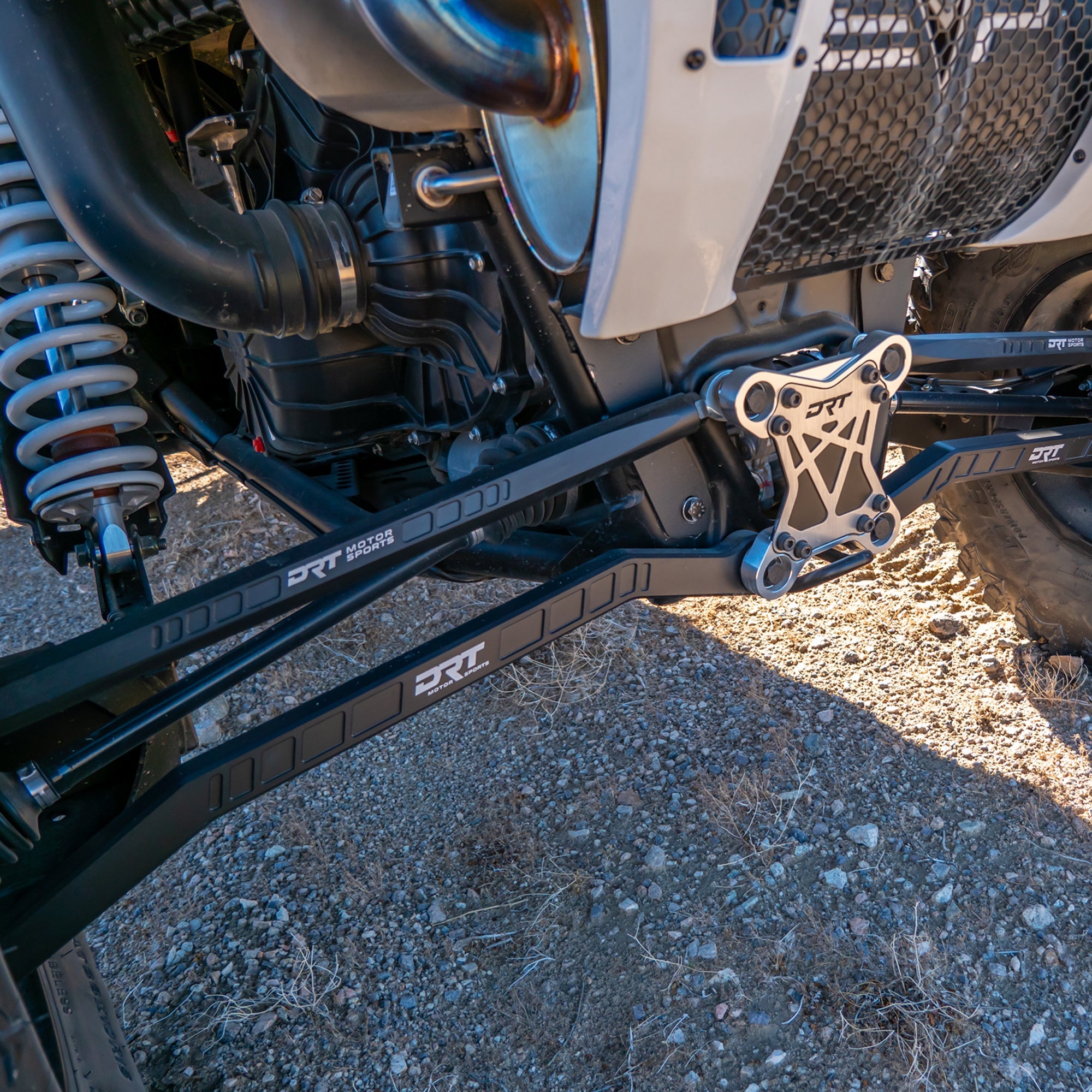

The Polaris RZR XP 2024+ Billet Aluminum High Clearance Radius Rod Set from DRT Motorsports is essential for riders who need more strength, durability, adjustability, and the highest clearance possible out of their rear suspension. Engineered specifically for 2024+ Polaris RZR XP 1000 and XP 4 1000 (64" platform), this kit replaces OEM non-adjustable radius rods with race-grade billet aluminum links that handle the punishment serious XP riders put their machines through.
Designed with performance in mind: reduced weight, significantly increased strength, and total adjustability compared to OEM. Manufactured in the USA on state-of-the-art CNC equipment from aerospace-grade 6061-T6 aluminum. Upper rods are fully adjustable with left/right-hand rod ends at each end for quick camber tuning. Lower billet high-clearance rods feature press-fit Teflon-lined wide spherical bearings for maximum load resistance, secured with spiral locks to ensure they remain in place under aggressive use.
Key Features
- Vehicle-specific fit — 2024+ Polaris RZR XP 1000 and XP 4 1000 (64" platform, 2-door and 4-door)
- CNC-machined aerospace-grade 6061-T6 aluminum construction
- Mil-spec anodized finish
- Hex bar geometry for wrench lock at rod ends

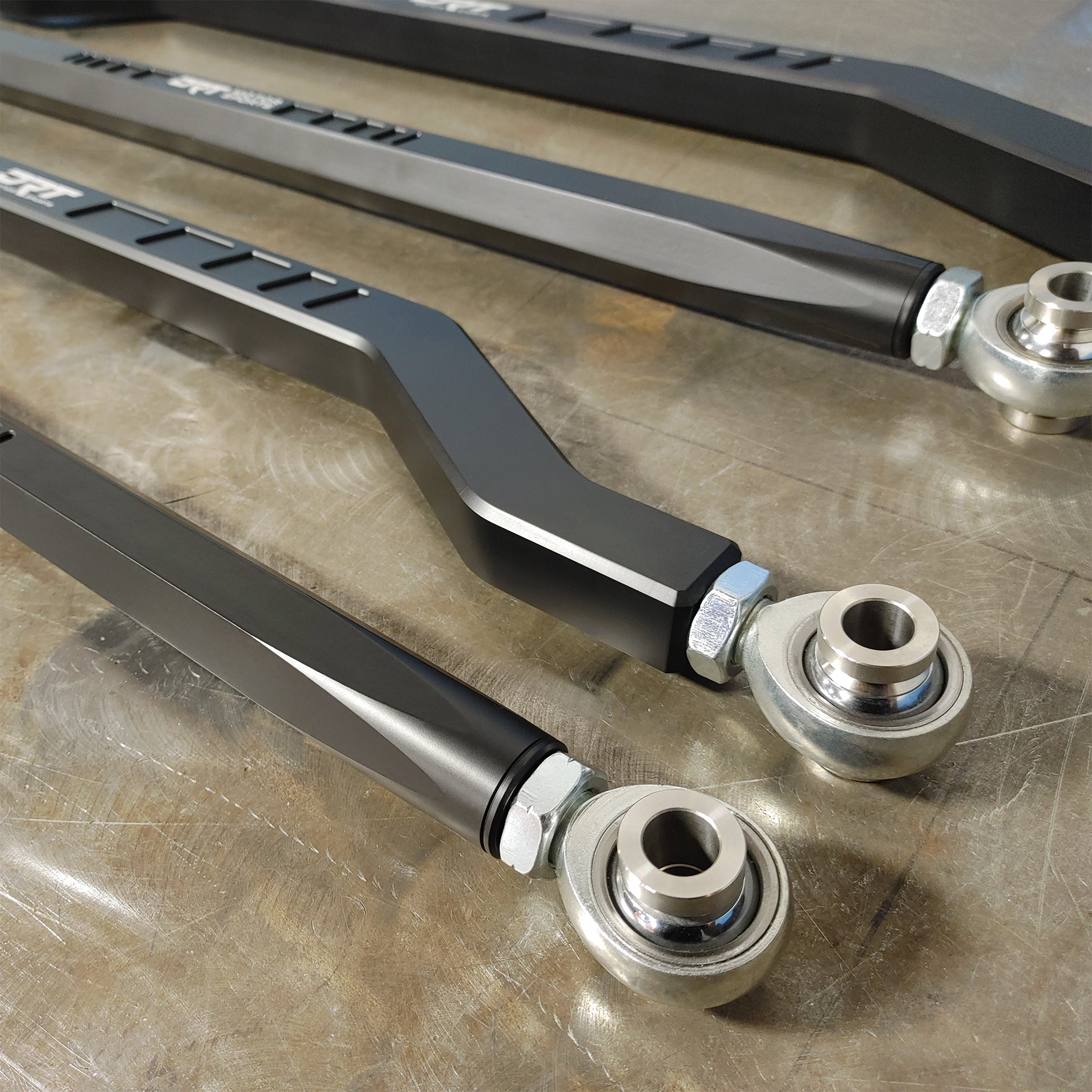

- Upper rods: 3-piece PTFE-lined 5/8" left/right-hand rod ends, fully adjustable

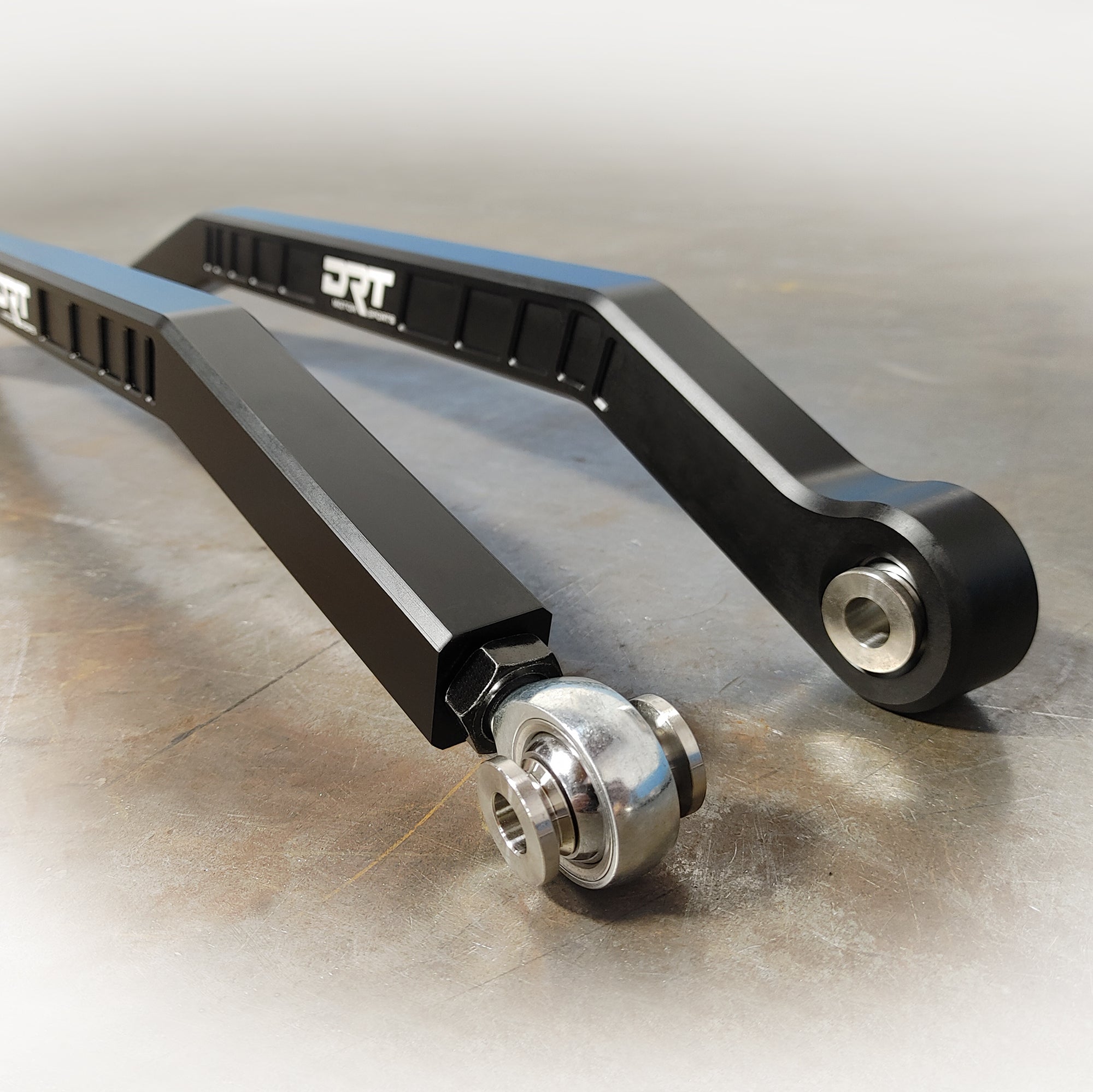

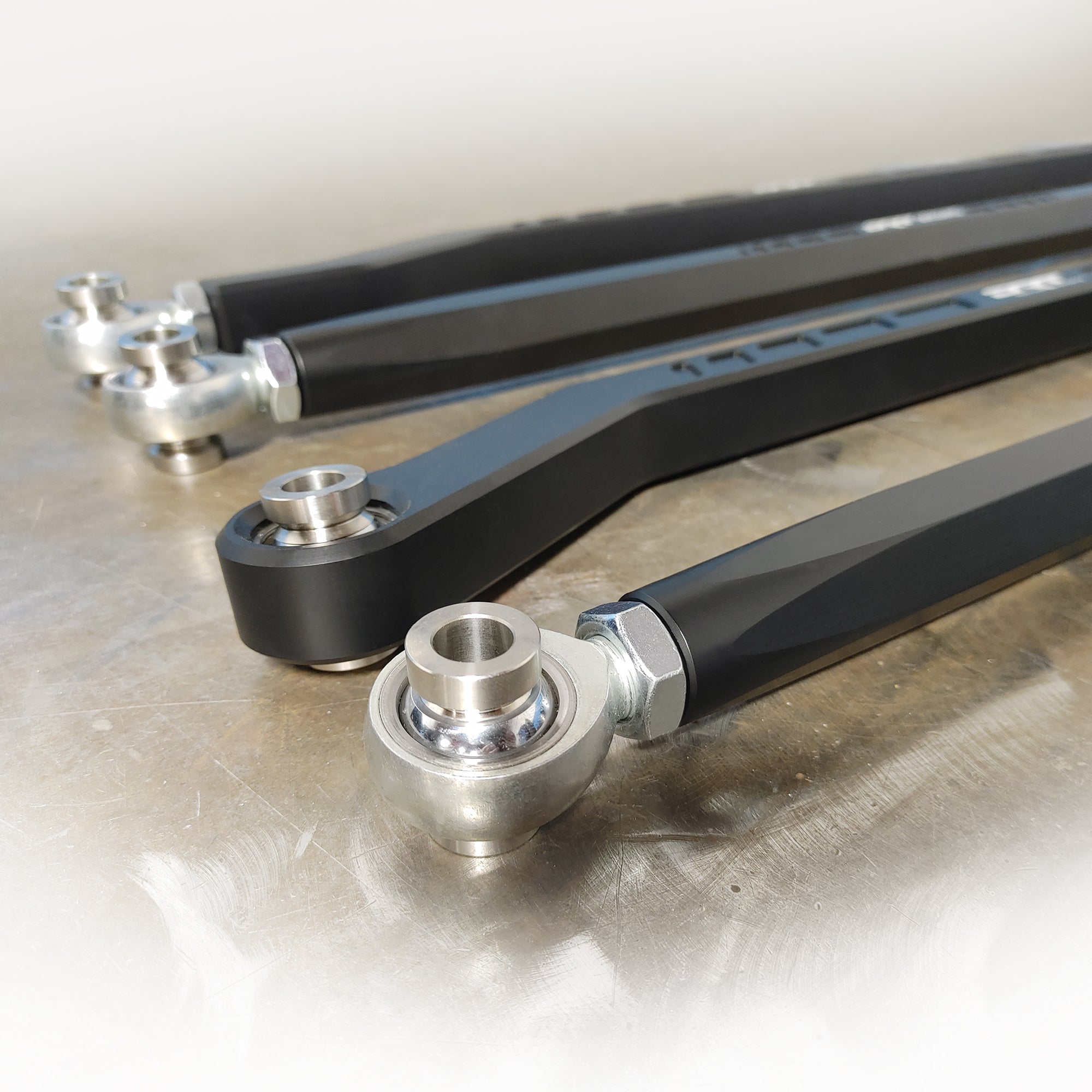

- Lower high-clearance rods: press-fit Teflon-lined wide spherical bearings with spiral locks
- 303 stainless steel rod end spacers
- Machined pockets with laser-engraved DRT branding

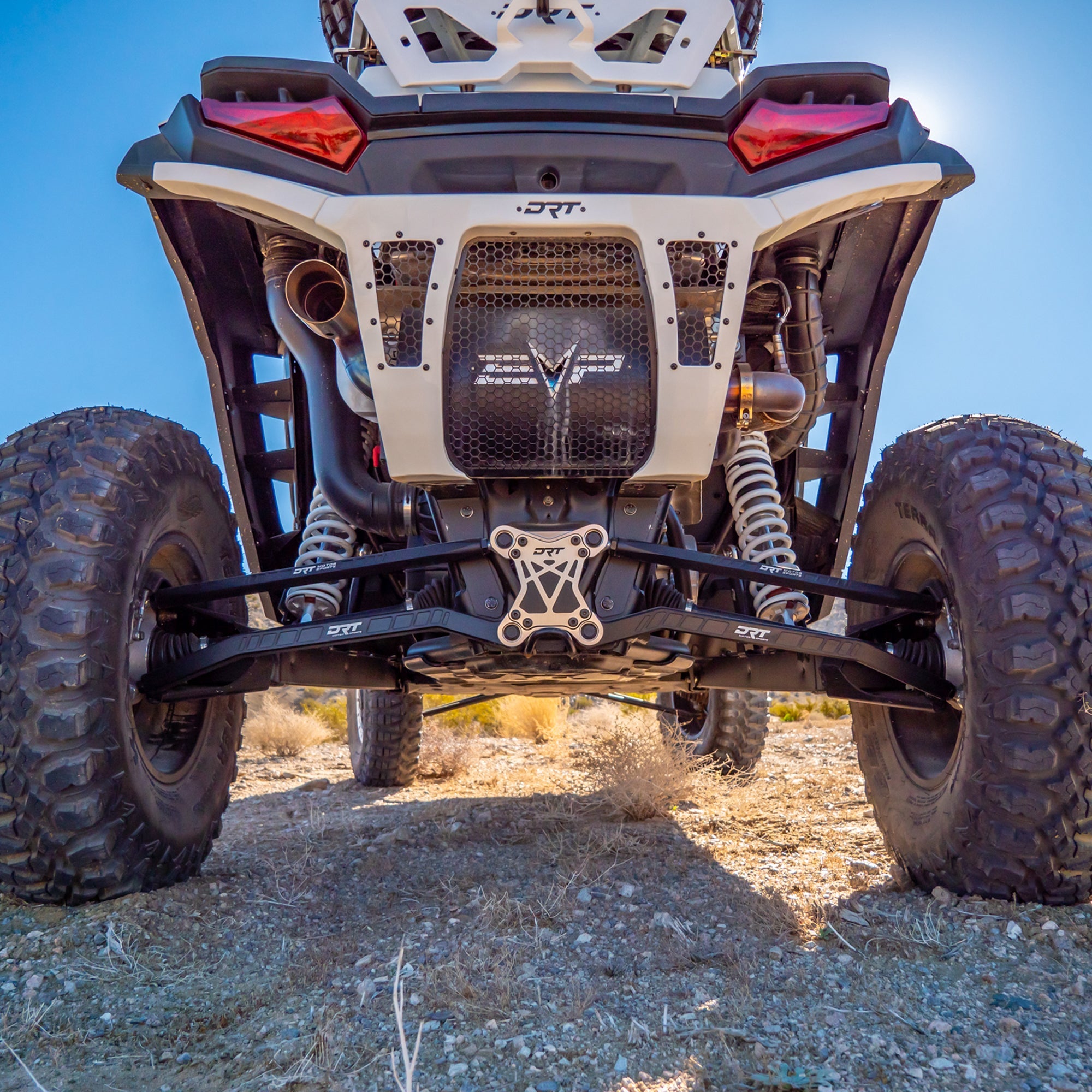

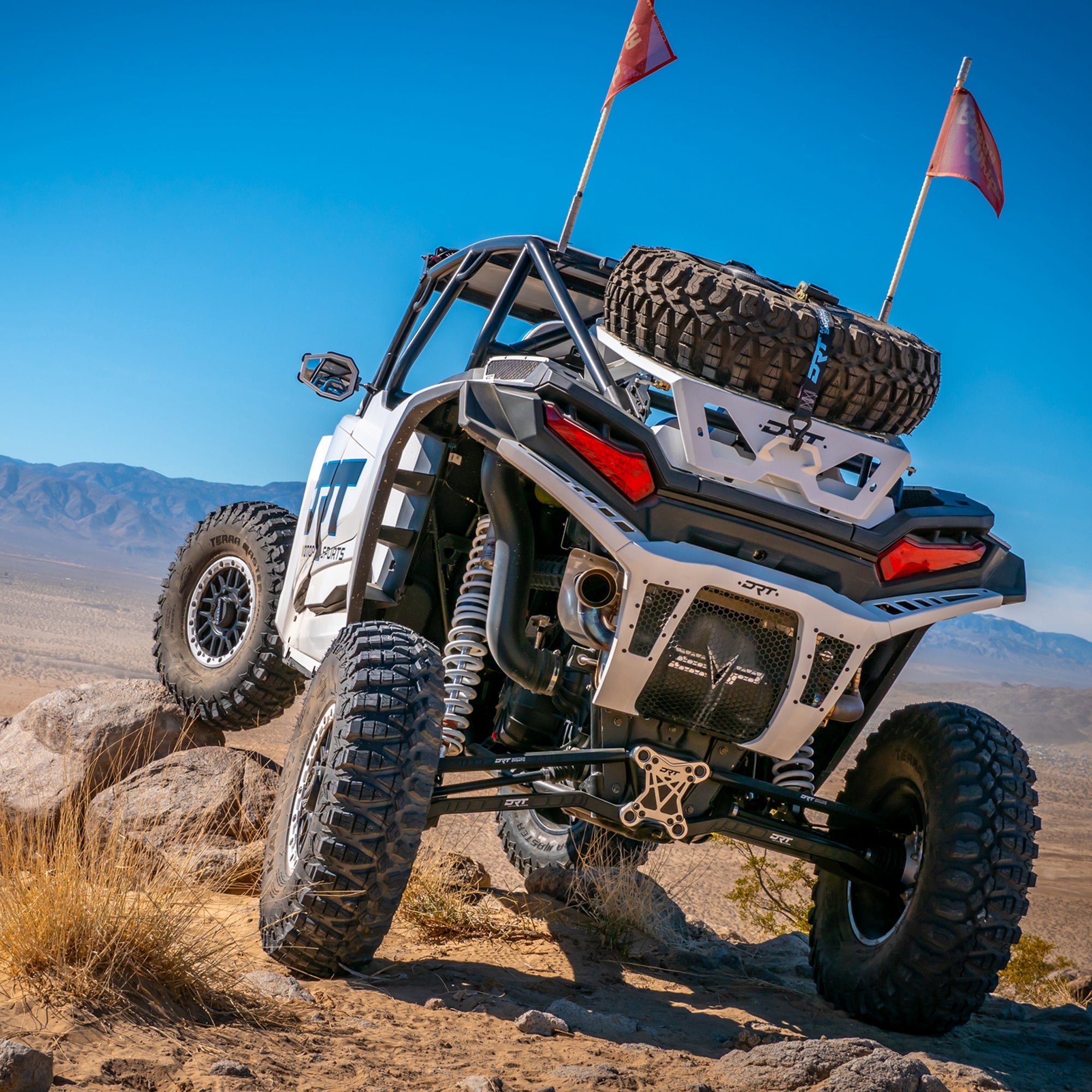

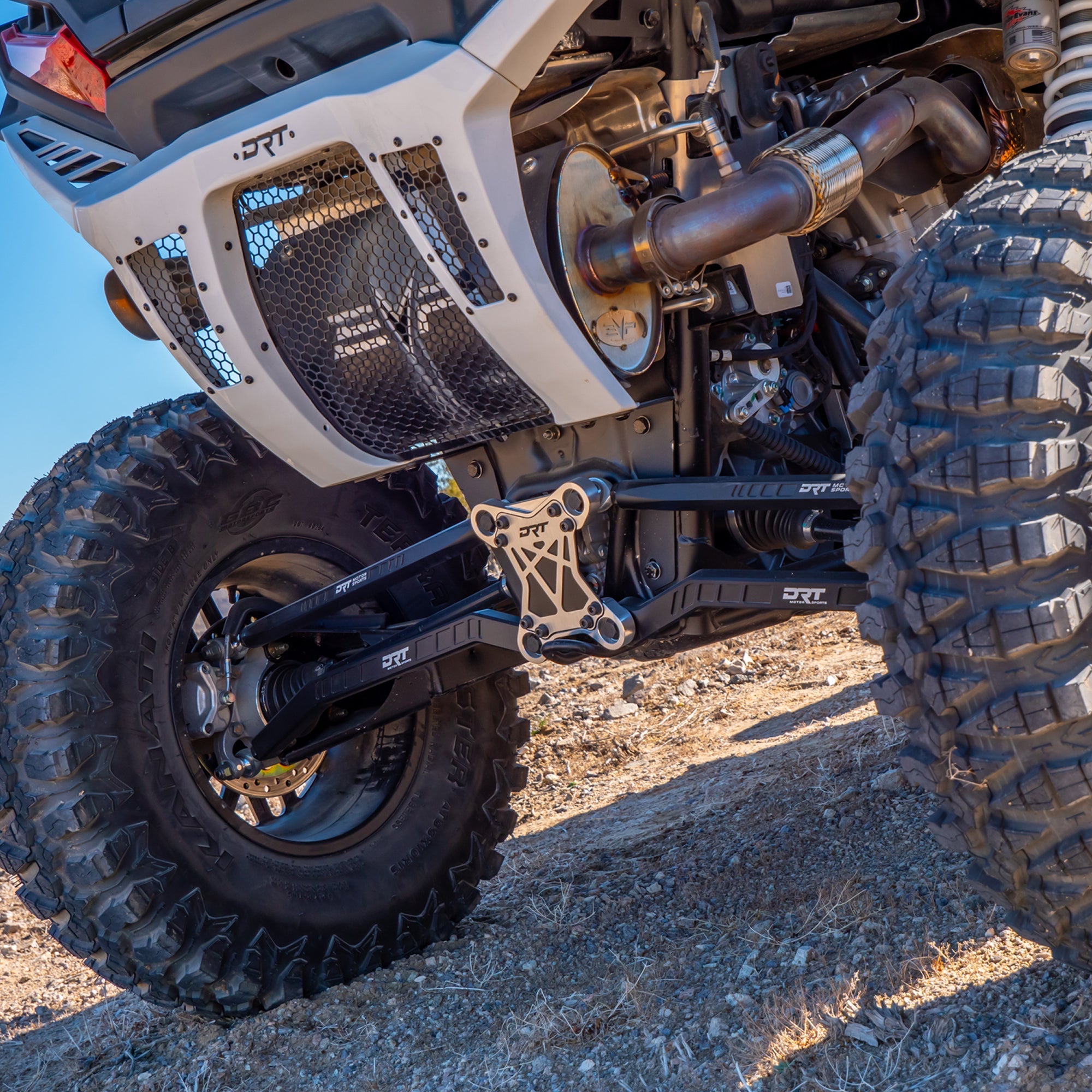

- Highest clearance possible for technical terrain
- Reduced weight vs. OEM with significantly increased strength
- Made in the USA
- PATENT PENDING design exclusive to DRT Motorsports
Specifications
- Application: 2024+ Polaris RZR XP 1000 / XP 4 1000 (64" platform)
- Material: Aerospace-grade 6061-T6 aluminum, hex bar geometry
- Finish: Mil-spec anodize
- Upper rod ends: 3-piece PTFE-lined 5/8" chromoly steel, left/right adjustable
- Lower rod bearings: Press-fit Teflon-lined wide spherical with spiral locks
- Spacers: 303 stainless steel
- Branding: Laser-engraved DRT logos in machined pockets
- Installation: Direct bolt-on — verify jam nuts tight with thread locker; paint check recommended
- Origin: Made in the USA
- Status: Patent Pending
Fitment
Engineered for 2024+ Polaris RZR XP 1000 and RZR XP 4 1000 (64" platform, 2-door and 4-door). Direct OEM-replacement for factory non-adjustable radius rods.
FAQ
Does it fit my RZR XP 4 1000 (4-door)?
Yes. The kit fits both 2-door RZR XP 1000 and 4-door RZR XP 4 1000 — same suspension geometry across both wheelbase configurations.
Why upgrade from OEM radius rods?
The 2024+ XP 1000 ships with non-adjustable radius rods that can bend or fail under aggressive use. The DRT billet aluminum links are stronger, lighter, fully adjustable, and use lower spherical bearings with spiral locks for race-grade reliability.
What's the difference between upper and lower rods?
Upper rods use 3-piece PTFE-lined 5/8" chromoly rod ends, left/right adjustable for camber tuning. Lower high-clearance rods use press-fit Teflon-lined wide spherical bearings with spiral locks for maximum load resistance.
Will it fit my older XP Turbo or Pro XP?
No. This kit is sized for the 2024+ XP 1000 chassis. The older XP Turbo and 2020+ Pro XP use different chassis and require platform-specific radius rod sets.
What's the installation tip?
Verify jam nuts are tight and installed with thread locker. Paint check is recommended for visual movement verification. Inspect jam nuts before each ride to ensure tightness and security.
Is it really lighter and stronger than OEM?
Yes. CNC-machined 6061-T6 aluminum delivers reduced weight with significantly increased strength versus OEM. Lower spherical bearings also outperform OEM bushings under load.
Why DRT Motorsports
DRT Motorsports engineers Polaris RZR XP 2024+ specific suspension components that replace OEM weak points with race-grade billet aluminum. From aerospace-grade 6061-T6 construction and PTFE-lined chromoly rod ends to wide spherical bearings with spiral locks, mil-spec anodize, laser-engraved branding, and Made-in-the-USA precision, every DRT high-clearance radius rod set upgrades suspension strength, clearance, and adjustability.
