Can-Am X3 Front HD Winch Bumper

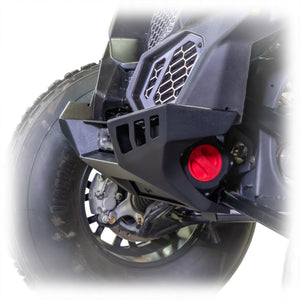

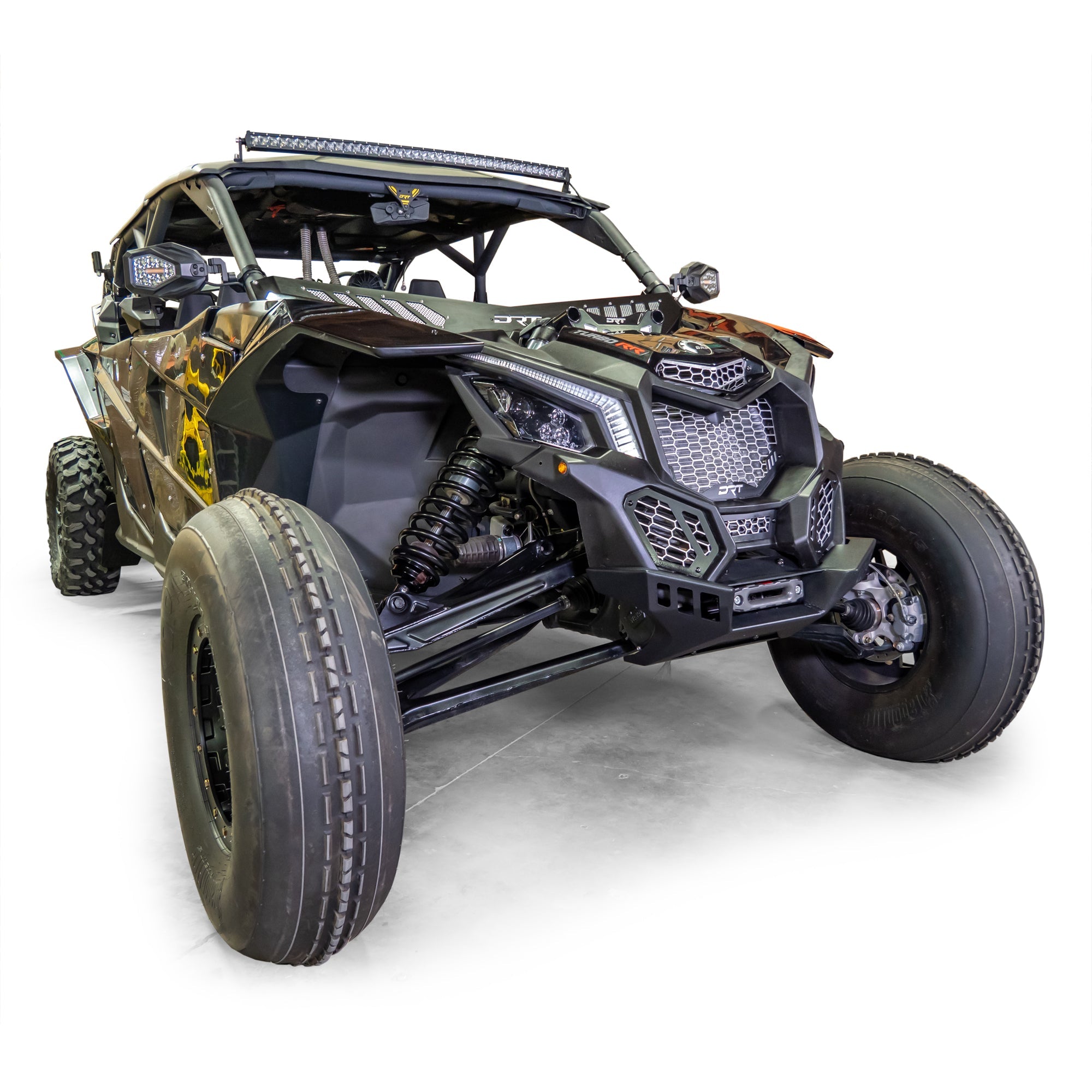

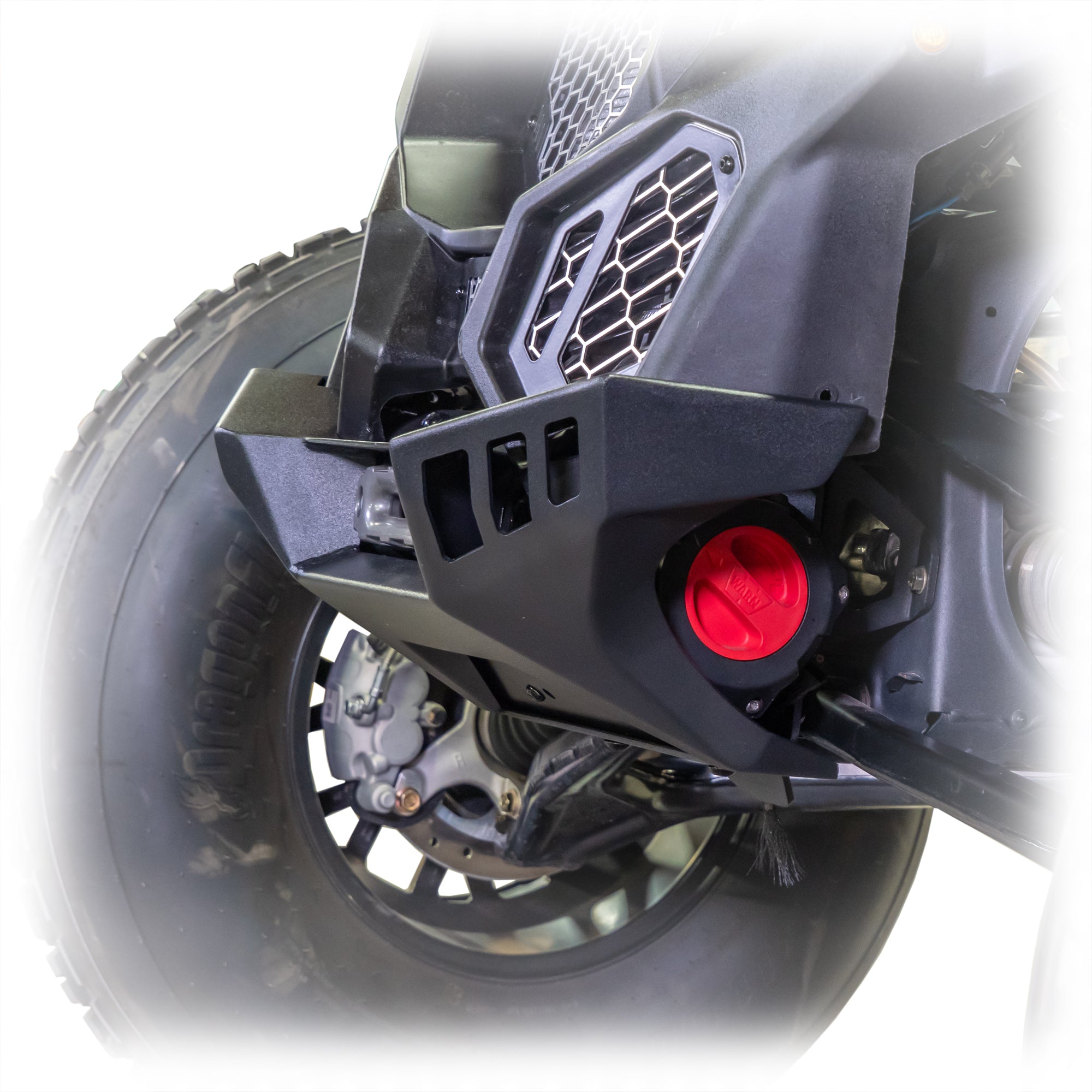

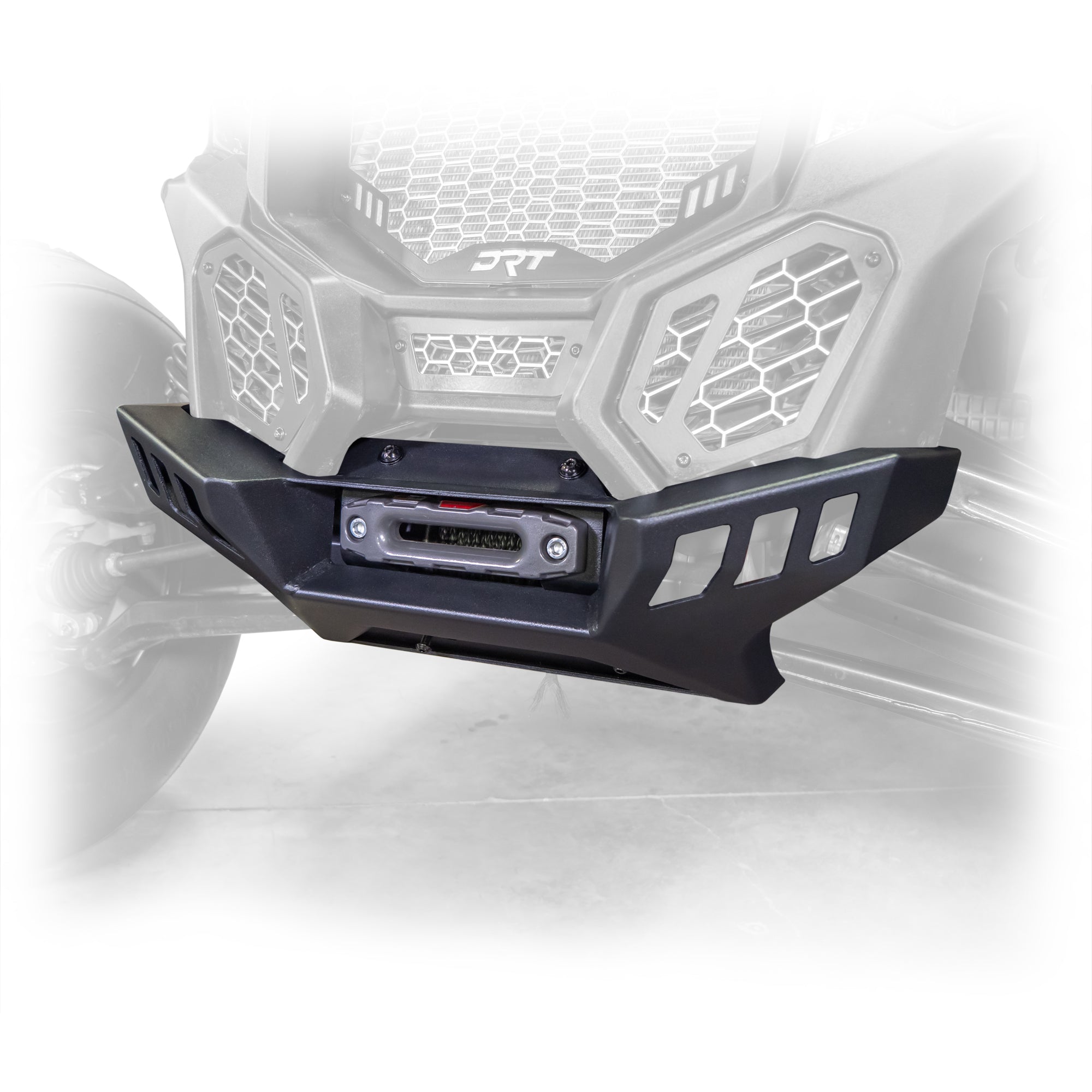

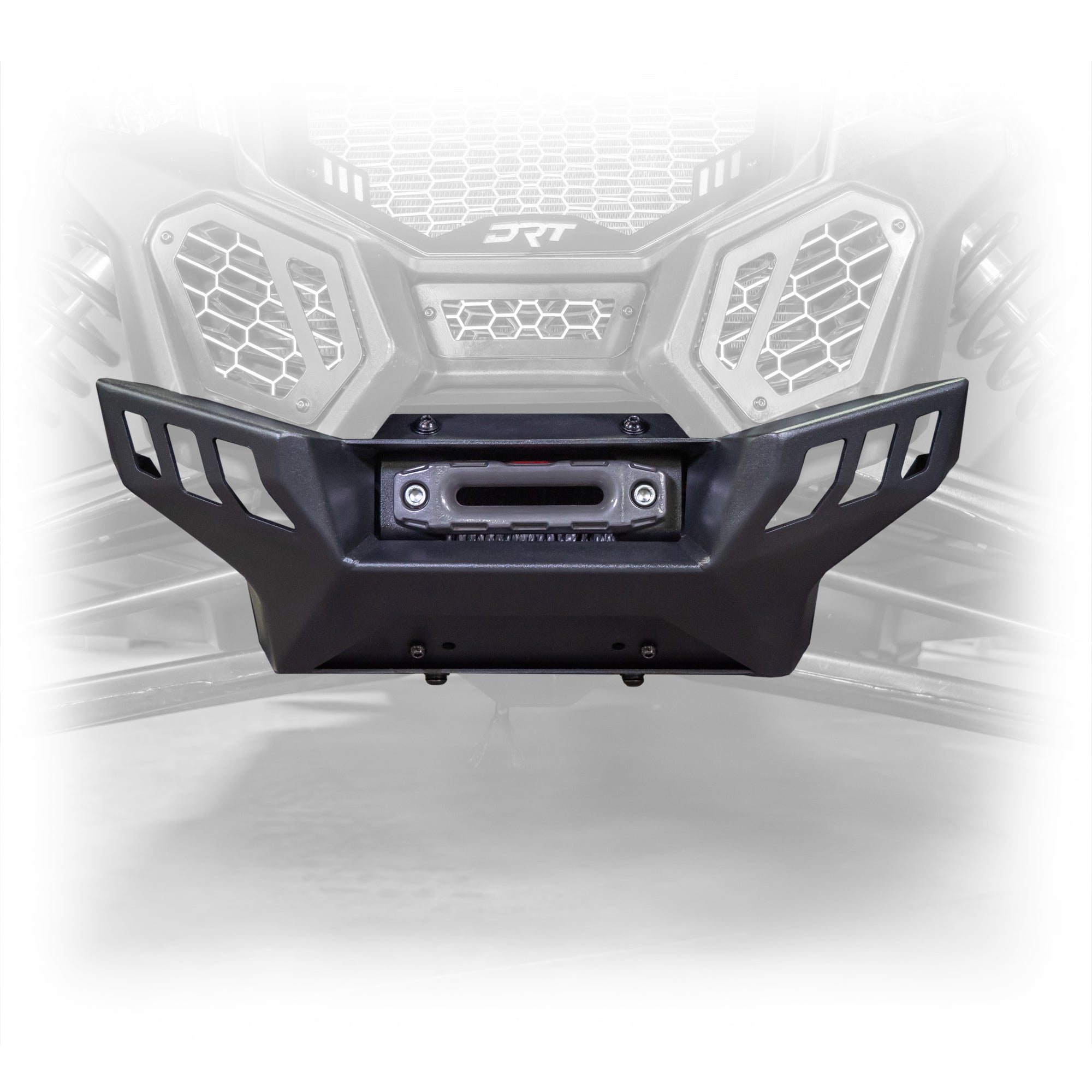

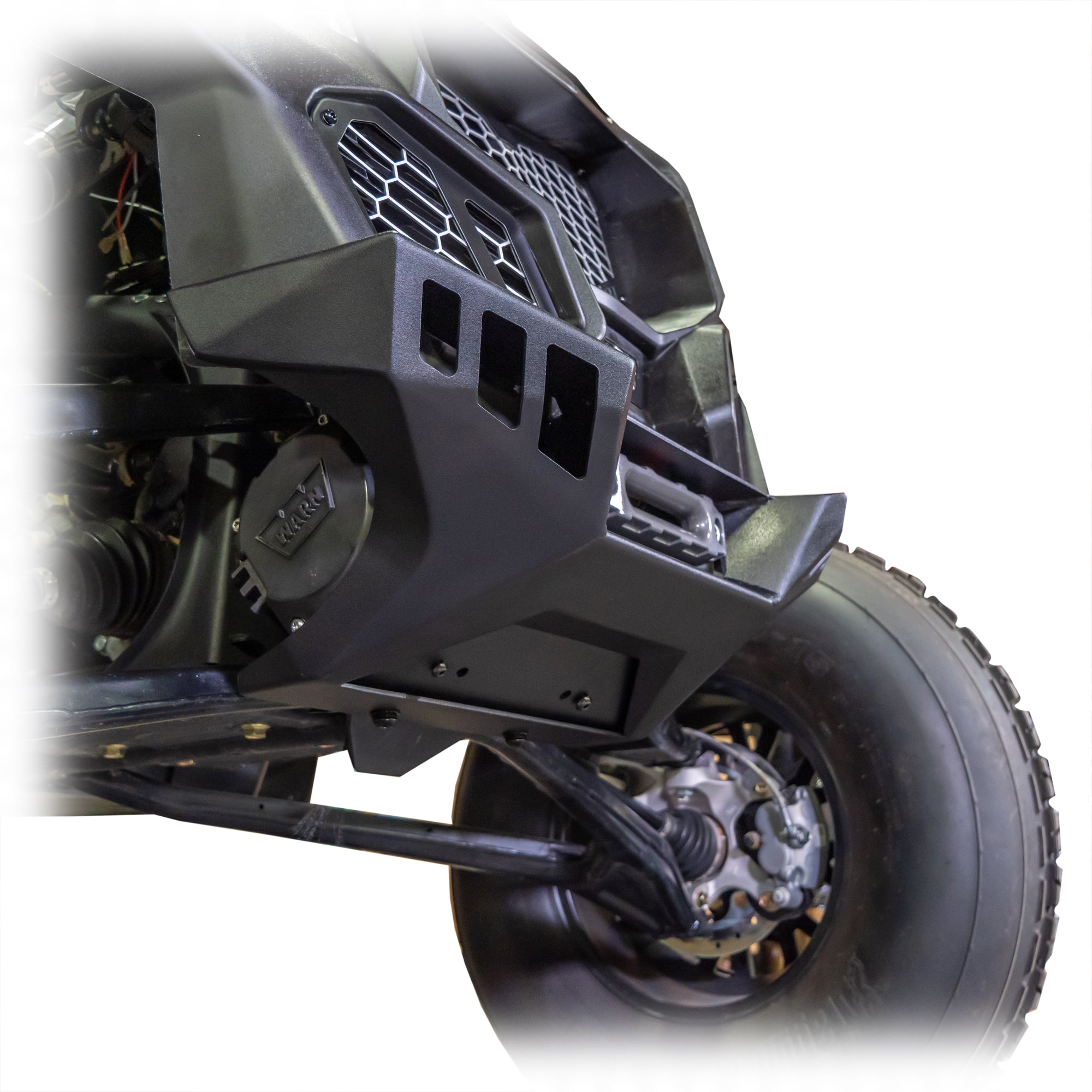

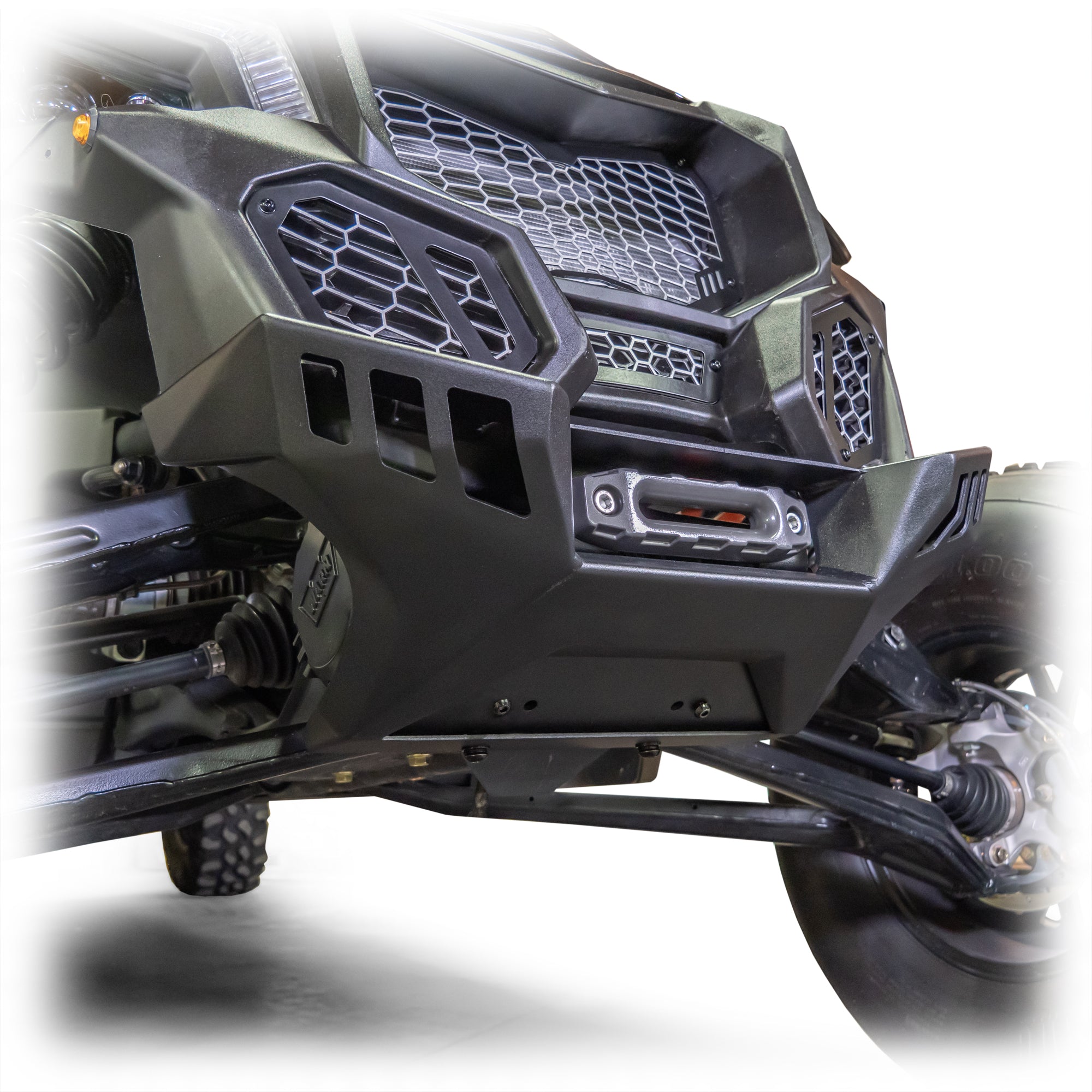

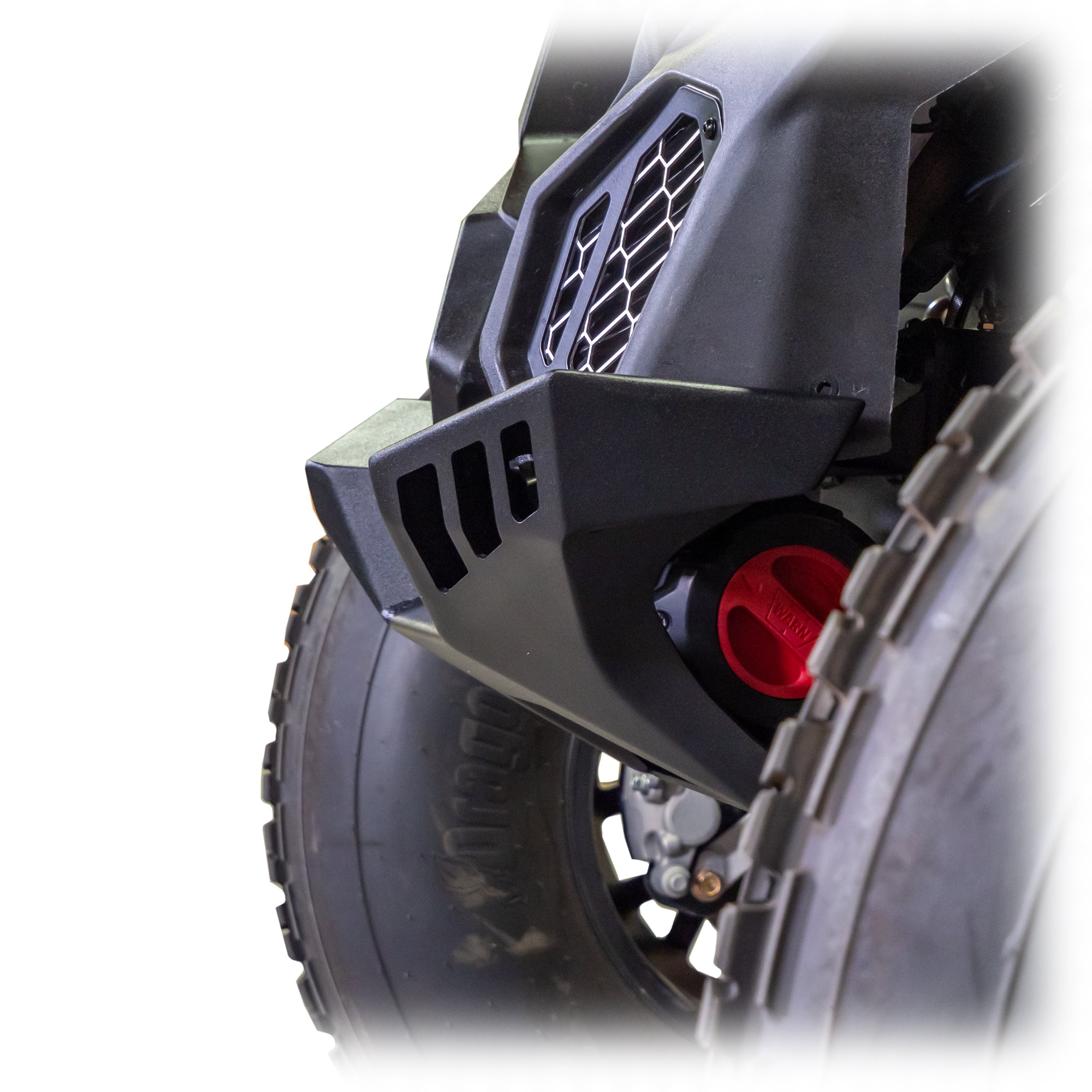

The DRT Motorsports Can-Am Maverick X3 Front HD Winch Bumper adds aggressive styling, front-end protection, and a purpose-built winch mounting location to your 2017+ Maverick X3. If you're searching for a steel X3 front winch bumper that can take repeated desert and trail abuse while housing a full-size UTV winch, this is the upgrade your build needs.
Constructed from laser-cut steel that is formed and welded, this HD winch bumper provides a replacement bulkhead support that strengthens front-end components while integrating a dedicated winch plate. It's engineered around the Warn Axon 55-S Powersports 5,500 lb winch, but almost any UTV winch up to 6,000 lb will fit.
Key Features
- Vehicle-specific fit — 2017+ Can-Am Maverick X3 (2- and 4-door)
- Steel construction — laser-cut, formed, welded
- Bulkhead support — strengthens front-end suspension
- HD winch mount — accepts Warn Axon 55-S or most UTV winches up to 6,000 lb
- Integrated fairlead — mount location with steel block-off plate (no-winch option)
- HAWSE fairlead compatible — works with DRT Universal 6" HAWSE Fairlead (sold separately)
- Light-ready — pre-cut light/light-bar attachment points
- Premium finish — DRT Sand Black powder coat
- Bolt-on install — no cutting required
Specifications
- Material — laser-cut, formed, and welded steel
- Finish — DRT Sand Black powder coat
- Winch capacity — up to 6,000 lb (built around Warn Axon 55-S)
- Fairlead compatibility — DRT Universal 6" HAWSE Fairlead (sold separately)
- Installation — bolt-on, no cutting required
- Status — Patent Pending
Fitment
Can-Am
- 2017+ Can-Am Maverick X3 (2-door)
- 2017+ Can-Am Maverick X3 Max (4-door)
- All R, DS, RS, X MR, X RC, X RS, Turbo, Turbo R, Turbo RR variants
Frequently Asked Questions
What size winch fits this Can-Am X3 HD front winch bumper?
The bumper is built around the Warn Axon 55-S 5,500 lb winch, but almost any UTV winch up to 6,000 lb will fit on the dedicated winch plate.
Can I run this X3 front bumper without a winch?
Yes. The bumper includes a steel block-off plate so you can run a clean front end without a winch installed.
Does this bolt-on winch bumper for Can-Am X3 require drilling?
No cutting or drilling is required. It's a true bolt-on installation using factory mounting points.
Can I mount lights to this Maverick X3 bumper with fairlead mount?
Yes. The bumper includes pre-cut light and light-bar attachment points for adding front lighting.
Is this bumper compatible with a synthetic rope winch?
Yes. It works with the DRT Universal 6" UTV HAWSE Fairlead (sold separately) for synthetic rope applications.
Does the bumper also reinforce front-end components?
Yes. The bumper provides a replacement bulkhead support that strengthens front-end suspension components while integrating the winch plate — a structural upgrade and a winch mount in one piece.
Why DRT Motorsports
DRT Motorsports designs Can-Am Maverick X3-specific front-end protection components that combine real structural reinforcement with winch and lighting integration. From laser-cut welded steel construction to Warn-spec winch mounting, pre-cut light tabs, and DRT Sand Black powder coat, every DRT bumper delivers a complete front-end upgrade engineered for desert and trail conditions.
Protect your X3 front end and gain winch capability. Order the DRT Motorsports Can-Am X3 Front HD Winch Bumper from Dunes 2 Dezert SXS for fast shipping and trusted off-road expertise.
