Auxbeam 5D Series 42” Curved LED Light Bar – Dual Row Combo Beam
High Visibility. Maximum Coverage. Built for the Extremes.
Light up the trail ahead with Auxbeam’s 42-inch 5D Series Curved LED Light Bar. Featuring an innovative combo beam pattern and dual-row configuration, this rugged 240W LED bar is designed to deliver 24000 lumens of crisp 6500K white light, offering long-distance visibility and wide peripheral illumination—perfect for high-speed off-roading, rock crawling, or emergency situations.
Key Features:
-

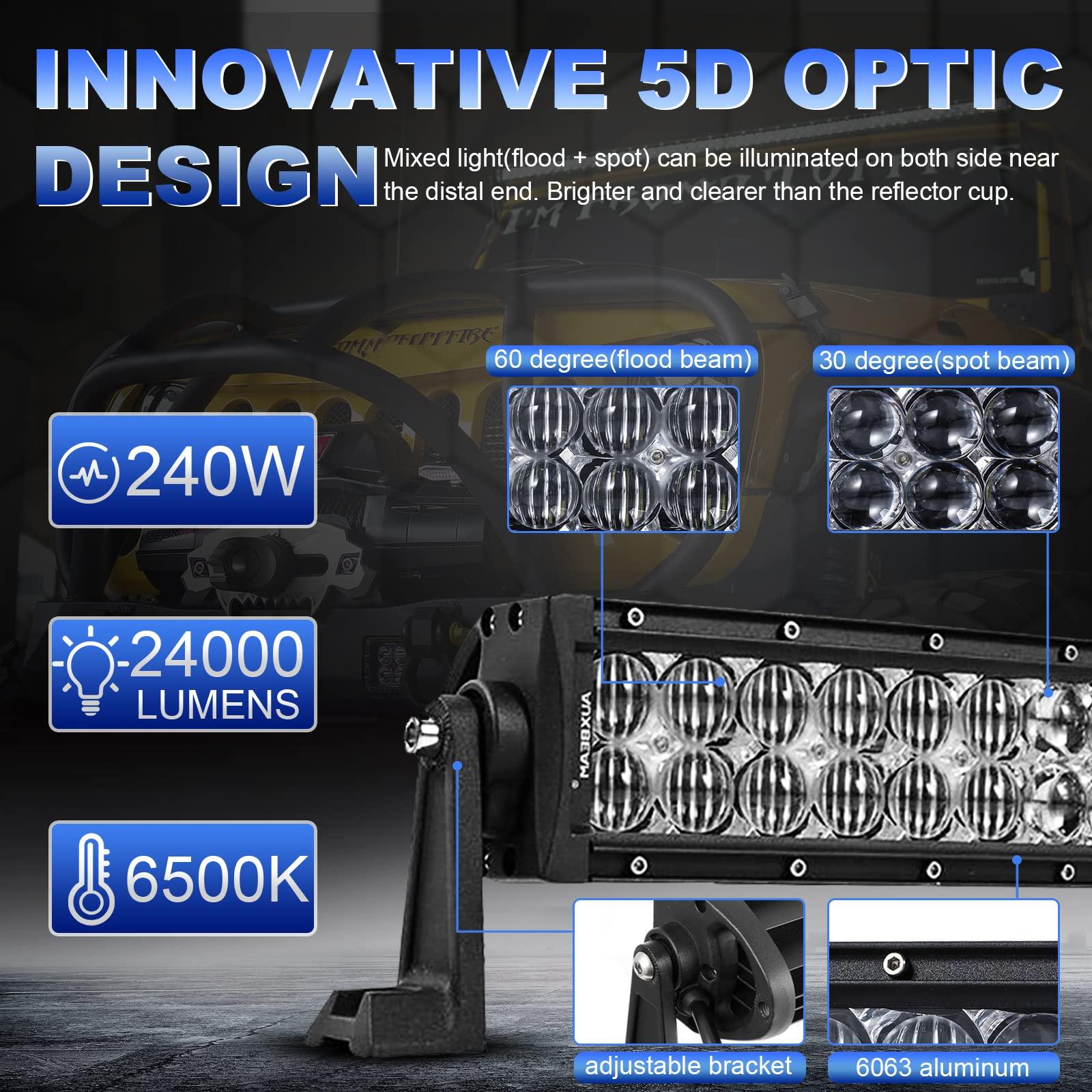

5D Optical Lens Design
- Combines fisheye lens and reflective optics for enhanced depth and brightness.
- Projects light far and wide—ideal for dark trails and open terrain.
- Spot + Flood Combo Beam
- 30° Spot Beam: Long-distance focused illumination.
-
60° Flood Beam: Wide-angle peripheral lighting.
- The dual-function beam ensures maximum visibility and hazard awareness.
-
Dual Row LED Configuration
- Equipped with 80 high-intensity 3W 2525 LED chips, producing 24000 lumens.
- Consistent, even light output for professional-grade visibility.
-
Curved Diecast Aluminum Housing
- Sleek, aerodynamic design conforms to your vehicle’s lines.
- Rugged black aluminum alloy shell resists corrosion and impact.
-
IP68 Waterproof & Dustproof
- Fully sealed construction resists rain, fog, dust, and harsh environments.
- Tempered glass lens and stainless hardware built to withstand tough weather.
-

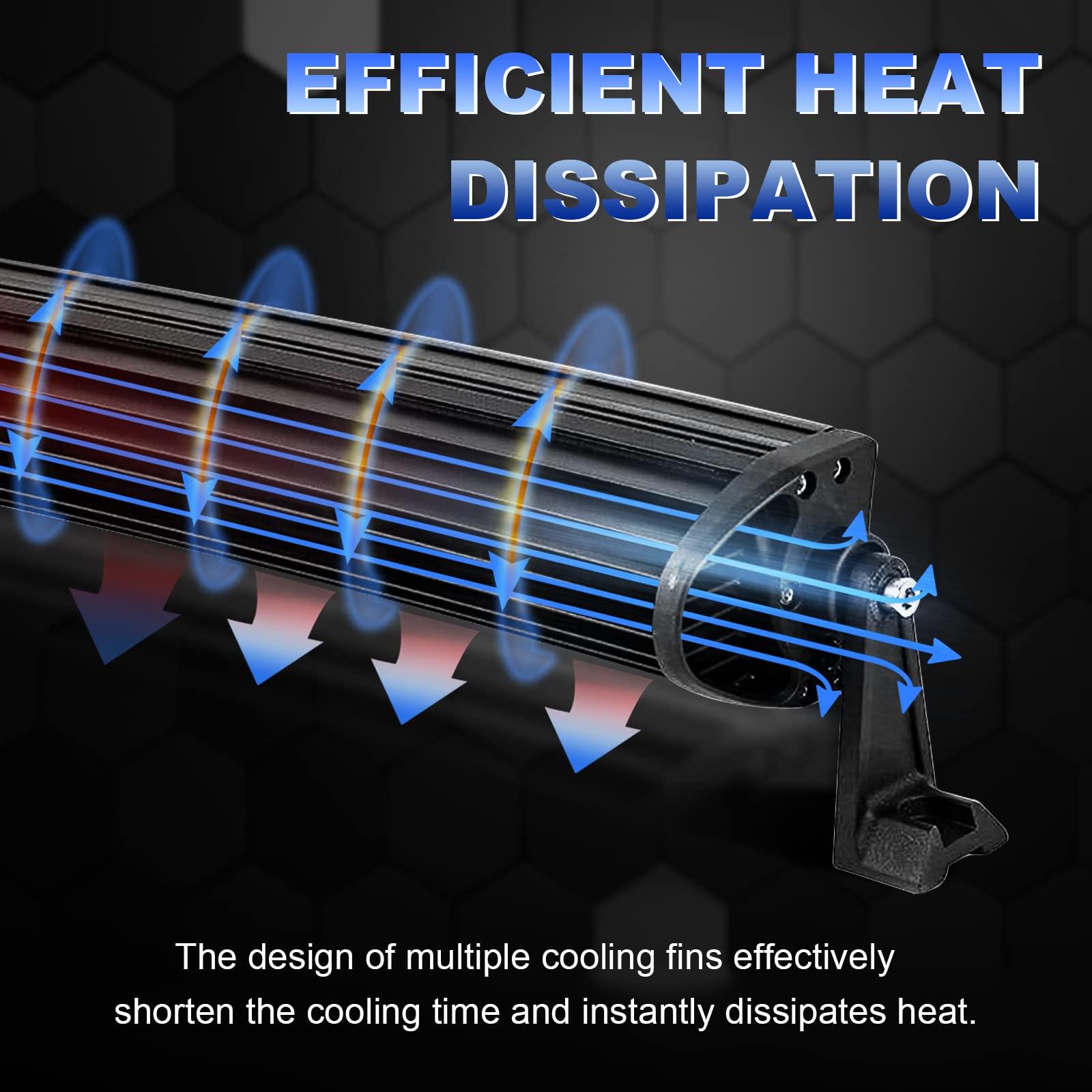

Superior Heat Dissipation
- Upgraded multi-fin aluminum heat sink reduces thermal buildup.
- Extends working life to 50,000+ hours.
-
Wide Voltage Range (9–32V)
- Universally compatible with 12V and 24V systems.
Fitment & Application:
Perfect for 99% of off-road and utility vehicles including:
Jeeps, 4x4s, Trucks, SUVs, ATVs, UTVs, Boats, Vans, Motorcycles, Campers
Can be used as:
Driving Light, Fog Light, Emergency Light, or Utility Light

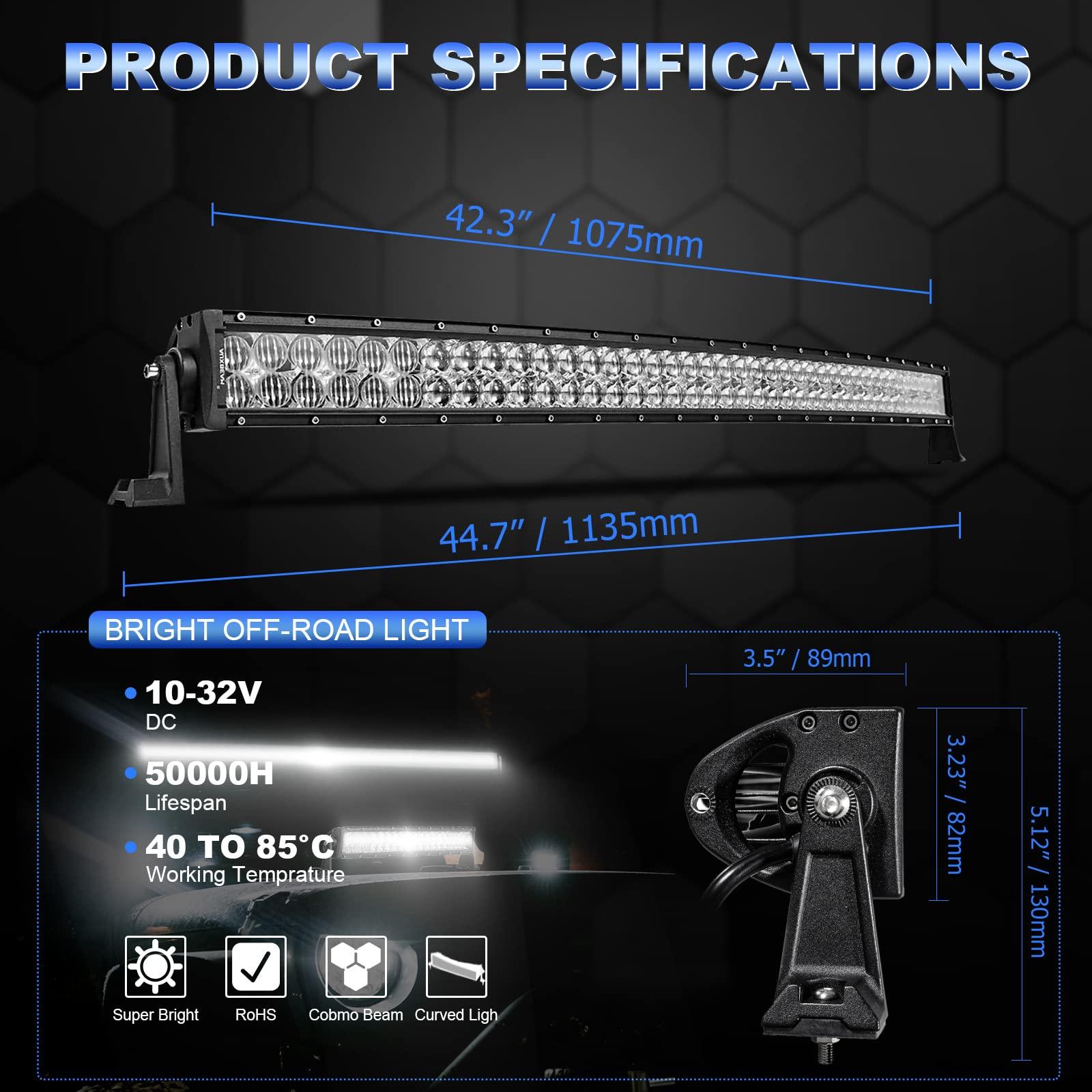

Specifications:
- Power: 240W
- LED Chips: 80pcs 2525 High Output
- Beam Pattern: 30° Spot + 60° Flood Combo
- Lumens: 24000LM
- Color Temp: 6500K
- Operating Voltage: 9–32V DC
- Material: Diecast Aluminum Housing
- Waterproof Rating: IP68
- Working Temp: -40°C to 85°C
- Lifespan: 50,000 Hours

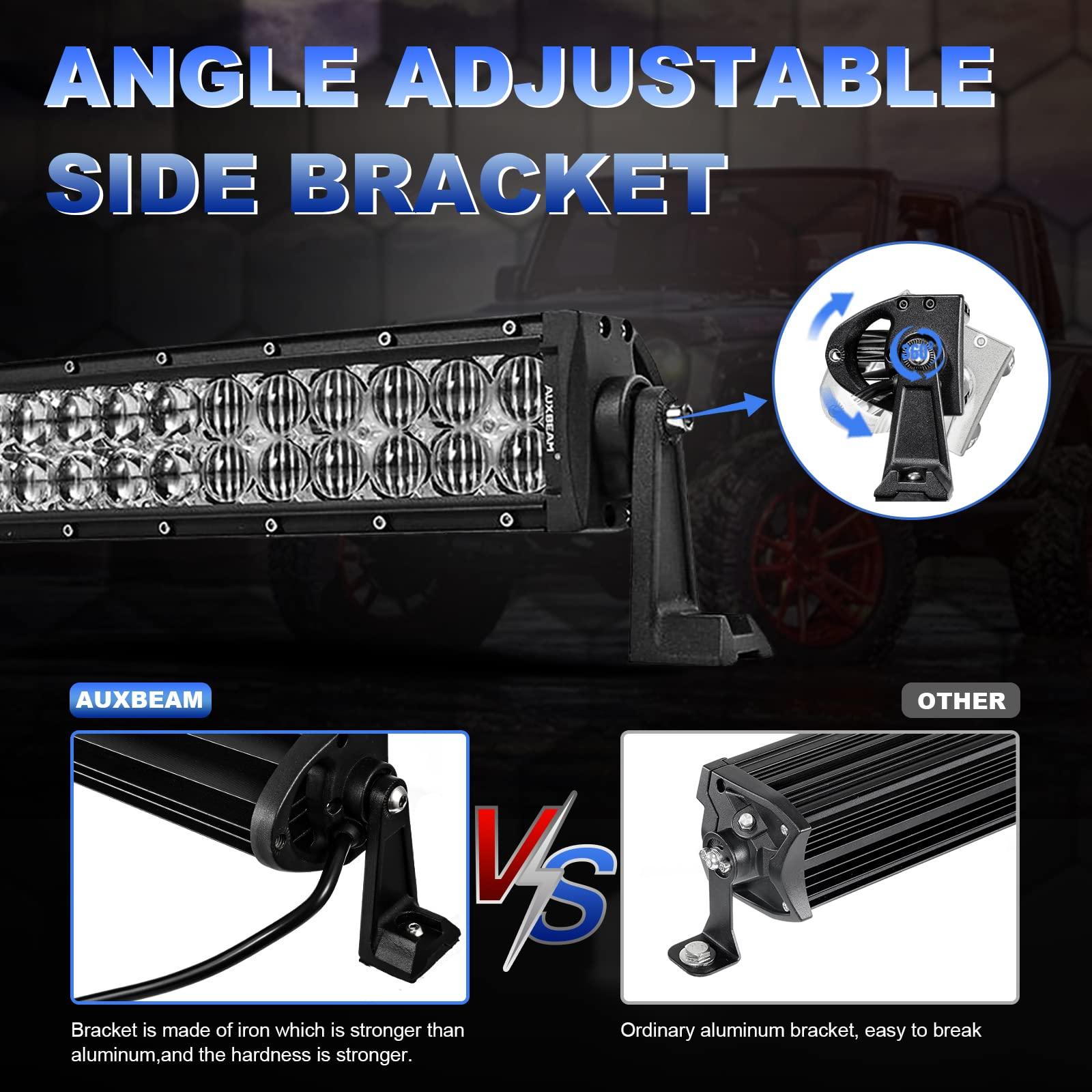

- Mounting: Side Bracket with Screws
What’s in the Box:
- (1) 42” Curved LED Light Bar
- (1) Mounting Bracket & Screw Kit
- (1) DT Connector Wiring Harness Kit
